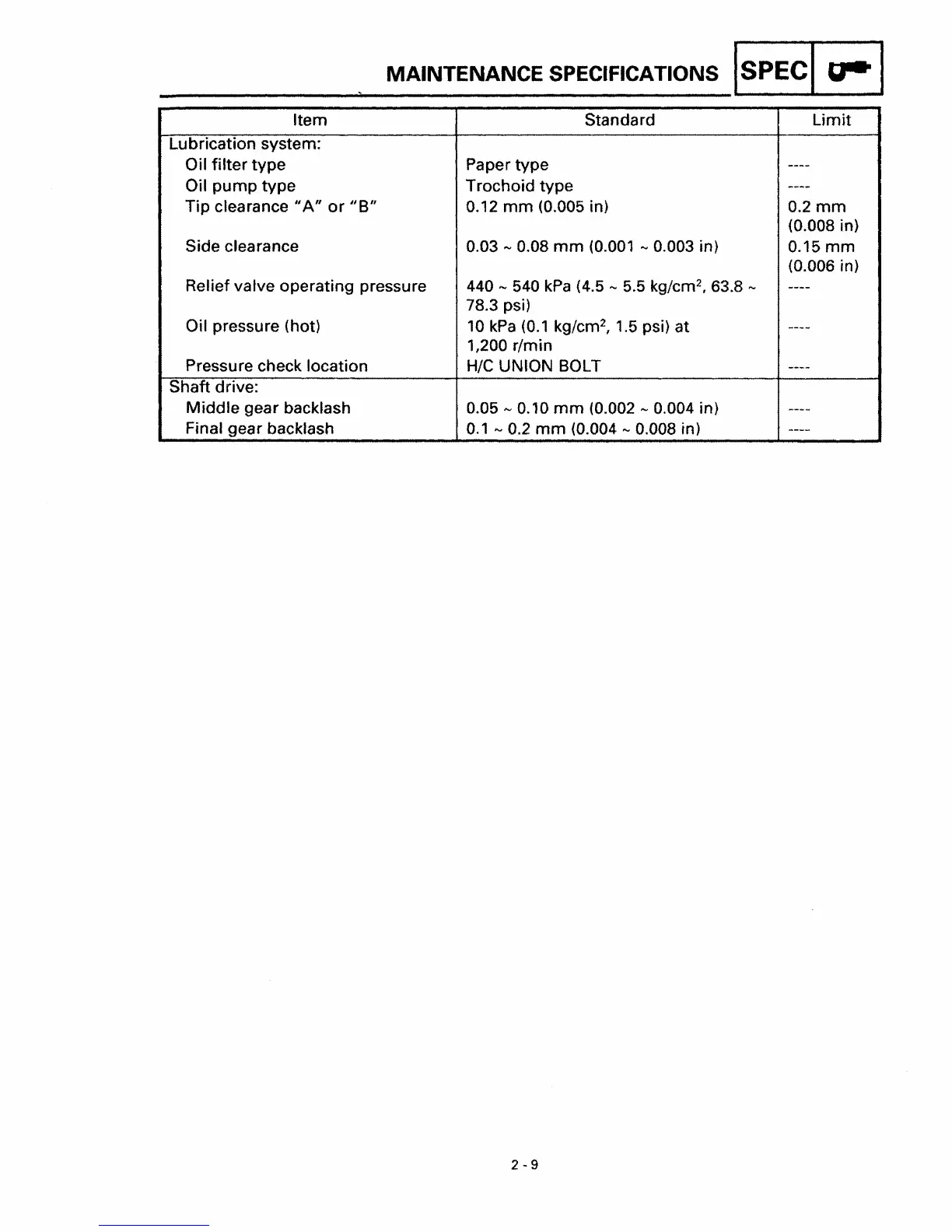

MAINTENANCE SPECIFICATIONS ISPECI 0-1
Item
Standard
Limit
Lubrication system:
Oil
filter type Paper type
----
Oil pump type Trochoid type
----
Tip clearance #I A" or liB"
0.12 mm (0.005 in)
0.2mm
(0.008 in)
Side clearance
0.03
... 0.08 mm (0.001 .... 0.003 in)
0.15
mm
(0.006 in)
Relief valve operating pressure 440
.... 540 kPa (4.5 .... 5.5 kg/cm
2
,
63.8 ...,
----
78.3 psi)
Oil pressure (hot)
10 kPa (0.1 kg/cm
2
,
1.5 psi) at
----
1,200 r/min
Pressure check location
Hie UNION BOLT
----
Shaft drive:
Middle gear backlash
0.05
.... 0.10 mm (0.002 ... 0.004 in)
----
Final gear backlash 0.1 '" 0.2 mm (0.004 .... 0.008 in)
----
