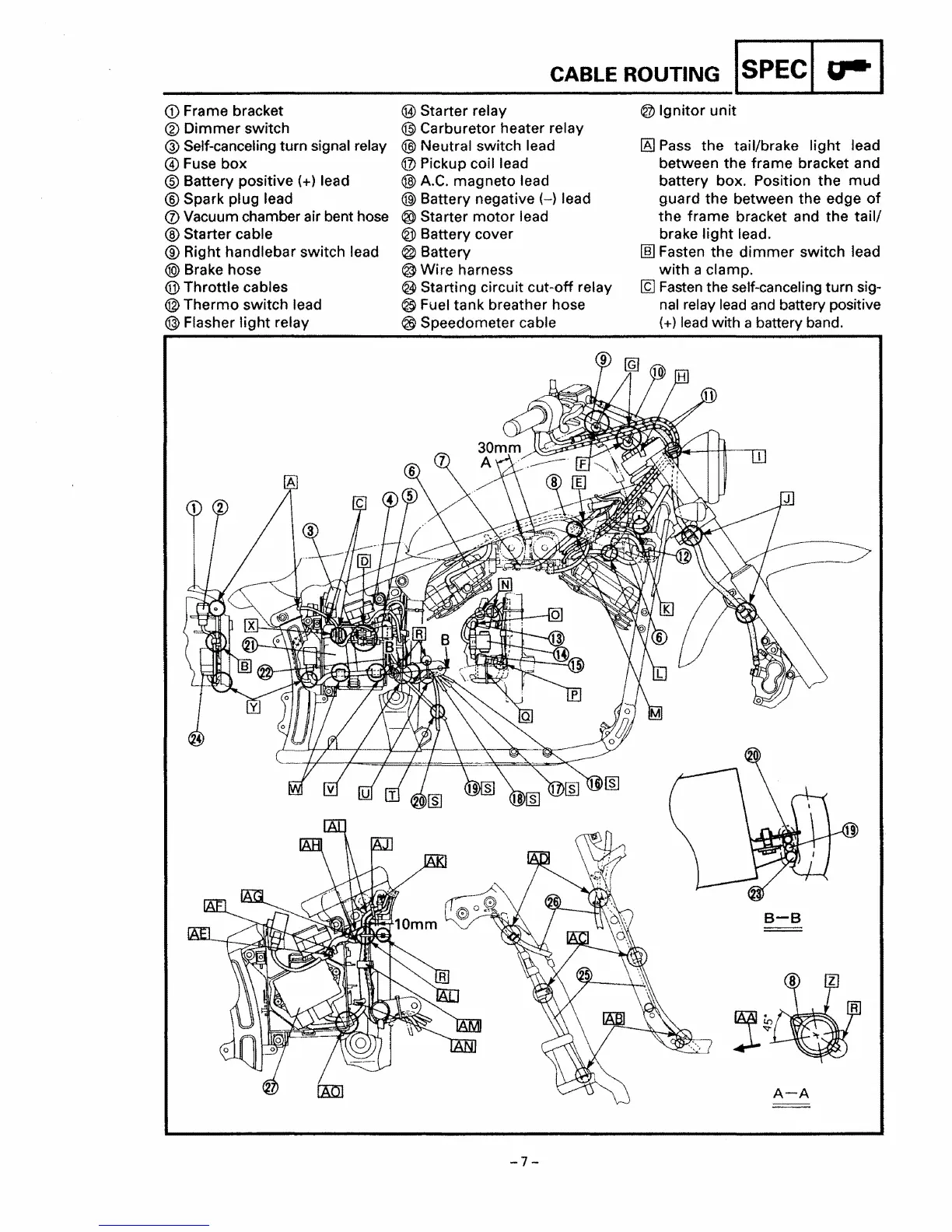

CABLE ROUTING
ISPECI.,.1
<D
Frame bracket
®
Dimmer
switch
® Self-eanceling turn signal relay
@ Fuse box
® Battery positive
(+)
lead
® Spark plug lead
(]) Vacuum chamber air bent hose
® Starter cable
® Right handlebar switch lead
@)
Brake hose
@ Throttle cables
@ Thermo switch lead
@ Flasher
light
relay
® Starter relay
@ Carburetor heater relay
@)
Neutral switch lead
@ Pickup coil lead
@)
A.C.
magneto lead
@ Battery negative
(-)
lead
@ Starter
motor
lead
®'
Battery cover
@ Battery
@Wire
harness
@ Starting circuit cut-off relay
o Fuel tank breather hose
~
Speedometer cable
-7-
@ Ignitor unit
~
Pass
the tail/brake
light
lead
between the frame bracket and
battery box. Position the
mud
guard the between the edge
of
the frame bracket and the
tail!
brake
light
lead.
Fasten the
dimmer
switch lead
with
a clamp.
[9
Fasten
the self-canceling turn sig-
nal
relay
lead
and
battery positive
(+)
lead
with a battery band.
a-a
A-A
To Next Page
