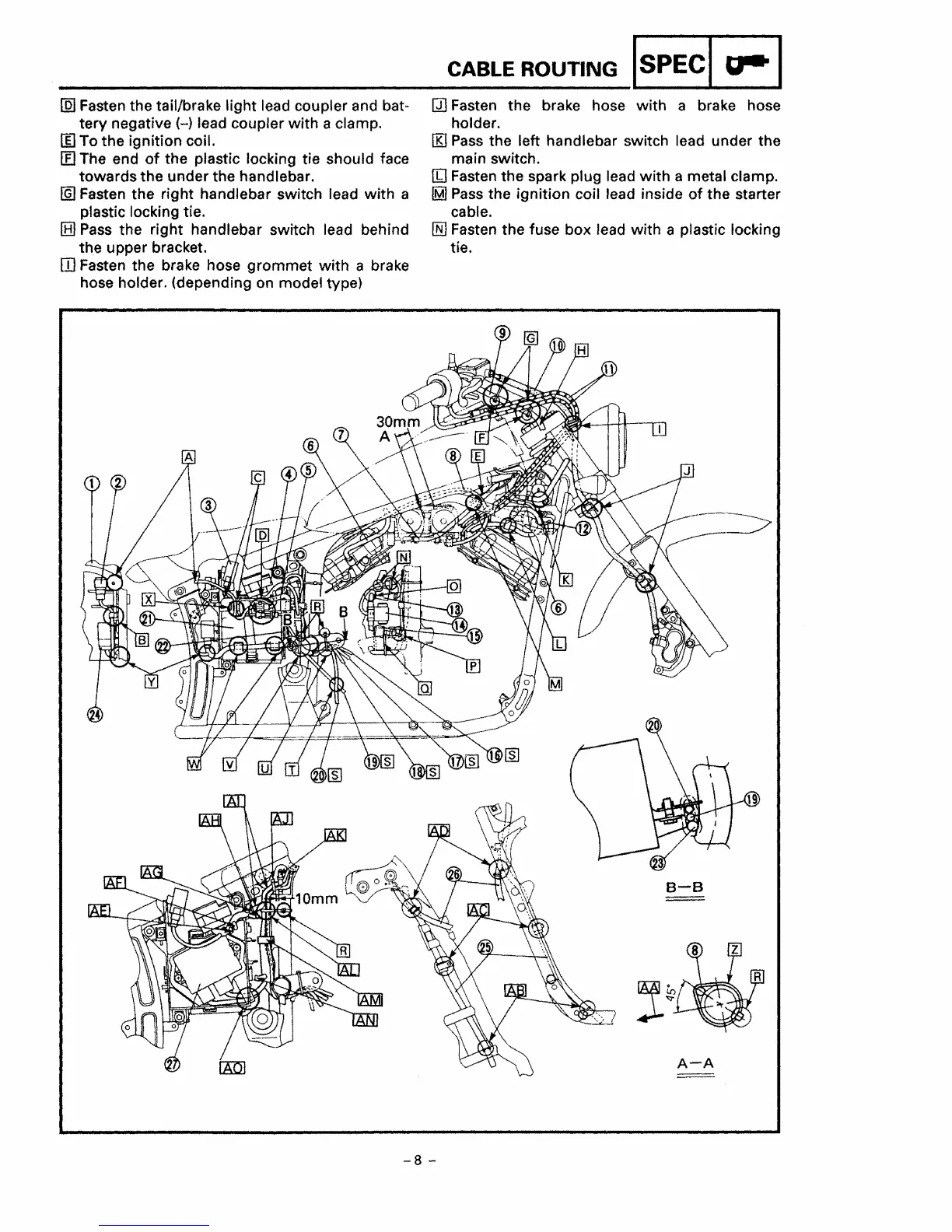

(Ql
Fasten the tail/brake light lead coupler and bat·
tery negative (-) lead coupler with a clamp.
[[J
To the ignition coil.
[f]
The end
of
the plastic locking tie should face
towards the under the handlebar.
[Q]
Fasten the right handlebar switch lead with a
plastic locking tie.
[8J
Pass
the right handlebar switch lead behind
the upper bracket.
ITl
Fasten the brake hose grommet with a brake
hose holder. (depending on model type)
CABLE
ROUTING
ISPECI.,..1
Q]
Fasten the brake hose with a brake hose
holder.
[KJ
Pass
the left handlebar switch lead under the
main switch.
l!J
Fasten the spark plug lead
with
a metal clamp.
lMl
Pass
the ignition coil lead inside
of
the starter
cable.
lED
Fasten the fuse box lead with a plastic locking
tie.
a-a
A-A
-8
-
