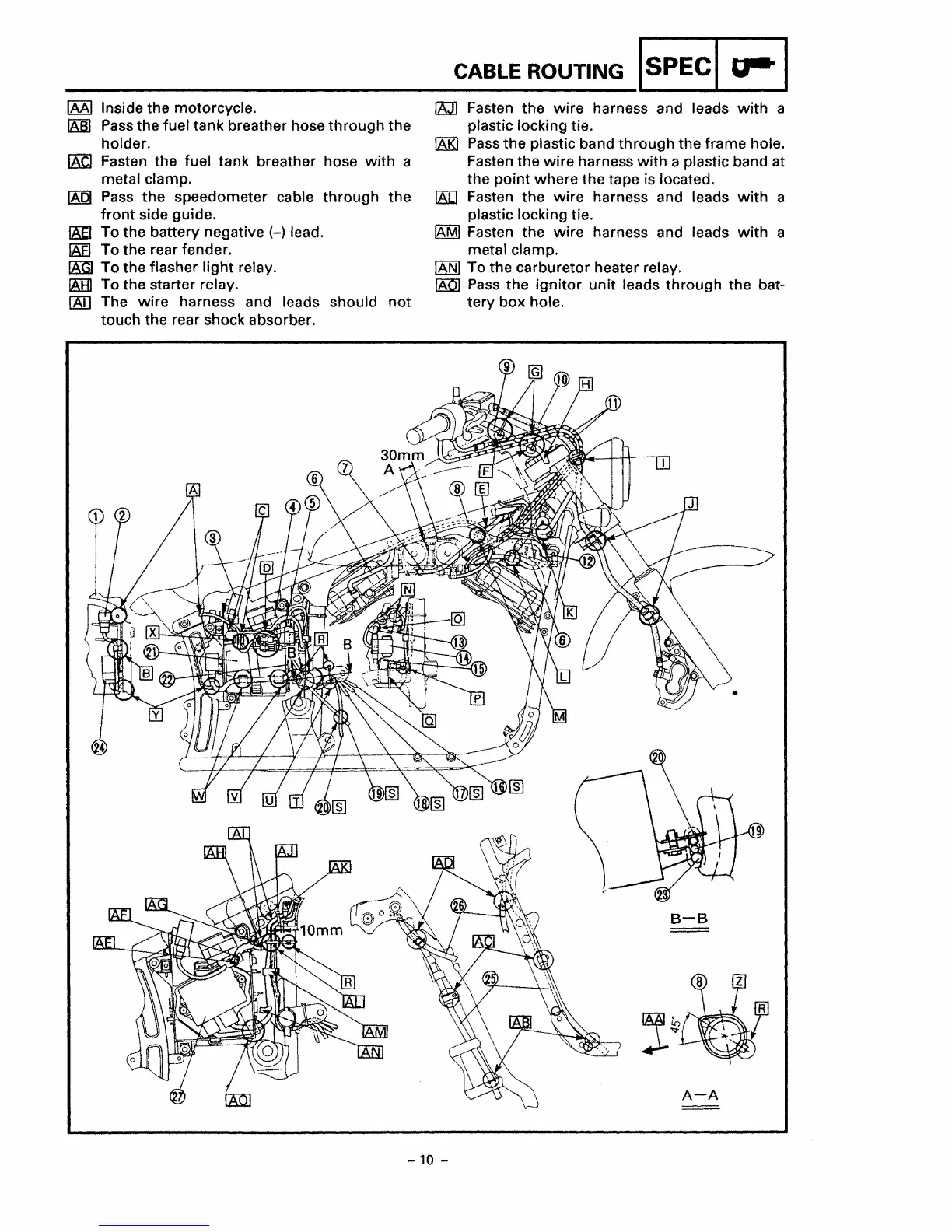

IAAI Inside the motorcycle.
IABl Pass the fuel tank breather hose through the
holder.
lAC] Fasten the fuel tank breather hose with a
metal clamp.
lAQI Pass the speedometer cable through the
front side guide.
lAEl To the battery negative (-) lead.
lAEI To the rear fender.
l8G1 To the flasher light relay.
l8Bl To the starter relay.
[80 The wire harness and leads should not
touch the rear shock absorber.
CABLE ROUTING ISPECI U-I
IAJ] Fasten the wire harness and leads with a
plastic locking tie.
IAK1 Pass the plastic band through the frame hole.
Fasten the wire harness with a plastic band at
the point where the tape is located.
lAD Fasten the wire harness and leads with a
plastic locking tie.
l&Ml Fasten the wire harness and leads with a
metal clamp.
IANI To the carburetor heater relay.
!8IiI Pass the ignitor unit leads through the bat-
tery box hole.
B-B
A-A
-10 -
