14.1 Drives
14 -5
Model CIMR-M5j
*
2
CIMR-MR5j
*
2
45P5 47P5 4011 4015 4018 4022 4030 4037 4045
Ambient Temperature
0°Cto55°C (32°F to 131°F) (not frozen)
ller
Heatsink Intake Air Temperature
0°Cto45°C (32°Fto113°F)
ontrol
on
Storage Temperature
*6
−20°Cto60°C(−4°F to 140°F)
Com
Humidity 90% or less (non-condensing)
Location Indoor (protected from corrosive gases and dust), elevation: 1000 m (3280 ft) or less
Vibration 9.8 m/s
2
(1G) at 10 to less than 20 Hz, up to 2 m / s
2
(0.2G) at 20 to 50 Hz
Protective Structure
IEC IP00
(Protected so that parts of the human body cannot reach electrically charged parts from the front)
* 1. Rated output power is guaranteed when input voltage is three-phase, 400 V (50/60 Hz), 440 V (50/60 Hz), 460 V (60Hz). If
input voltage is lower than 400 V, rated output power is not guaranteed.
* 2. A: For stand-alone drive system N: for NC system
* 3. If the heatsink input temperature for the 4037 and 4045 Inverter is high, the bearable load is limited. The continuous use time
at 1 minute rated value (120% of 30 minutes rated output) depending on the Unit heat limit is shown in the following diagram.
* 4. Dimensions of External Heatsink Cooling Type. Refer to 14.1.3 Dimensions for Open Chassis Type.
* 5. An AC reactor is required between Converter and main circuit power supply.
* 6. Temperature during shipping.
0
20
40
60
01020
30
40
50
15
37.5
Heatsink input temperature (_C)

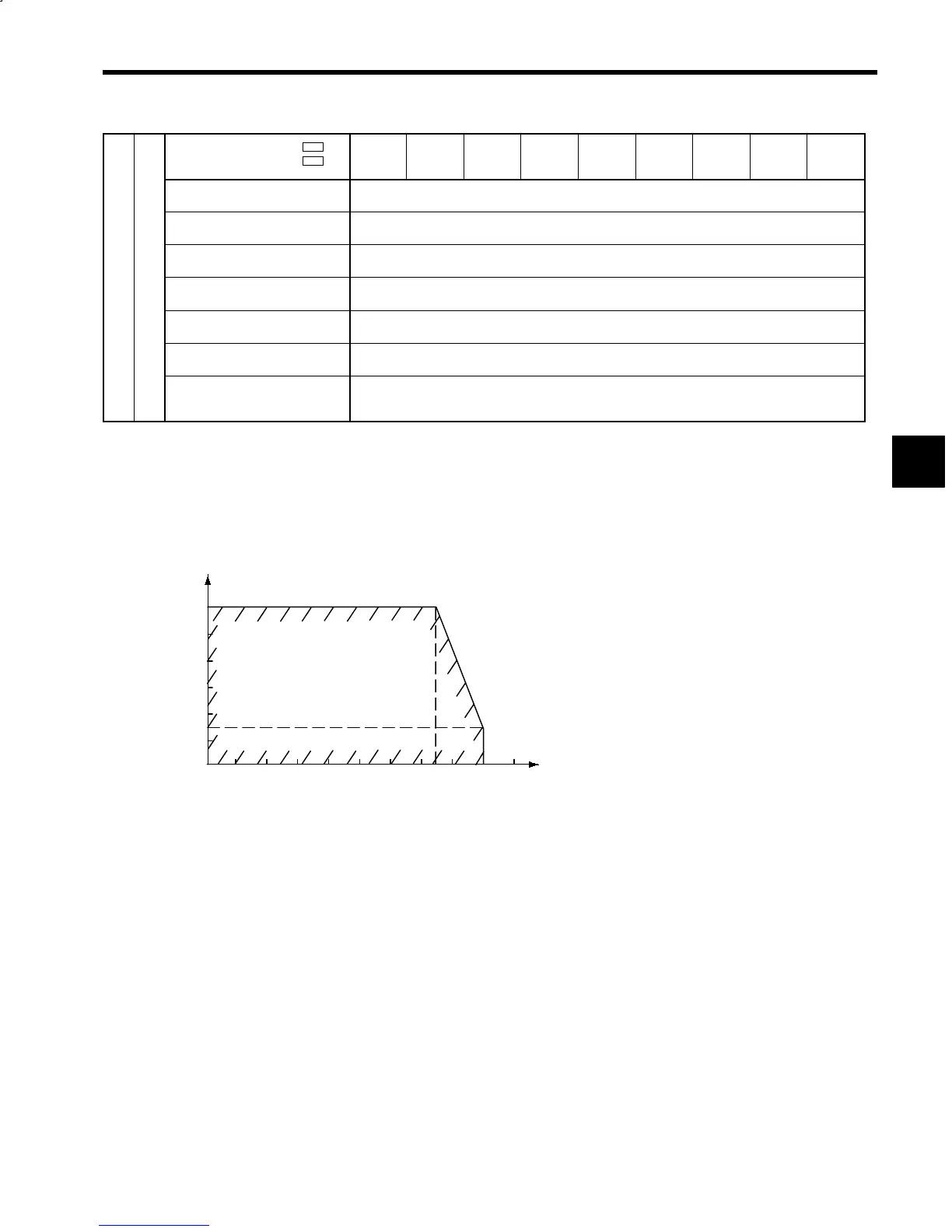

1 Minute Rated Continuous Use Time for 4037 and 4045 Inverters
1 min. rated continuous use time
(seconds)
14
