14.3 Options and Peripheral Units
14 -59
J
Connector Attachment Positions
Use the connector code to determine the connector position for mounting to the Inverter.
4CN
MR (8P)
YASKAWA
VS−626M5
Example: 22 kW Inverter
Control
connector
1CN
MDR (36P)
2CN
MDR (20P)
6CN
MDR (50P)
72626-CA01
1CN
MDR (36P)
2CN
MDR (20P)
6CN
MDR (50P)
8CN
MDR (20P)
9CN
MDR (14P)
1CN
MDR (36P)
2CN
MDR (20P)
6CN
MDR (50P)
10CN
MDR (14P)
1CN
MDR (36P)
2CN
MDR (20P)
10CN
MDR (14P)
1CN
MDR (36P)
2CN
MDR (20P)
8CN
MDR (20P)
9CN
MDR (14P)
4CN
MR (8P)
1CN
MDR (36P)
2CN
MDR (20P)
4CN
MR (8P)
72626-CA02
72626-CA03
72626-CN01
72626-CN02
72626-CN03

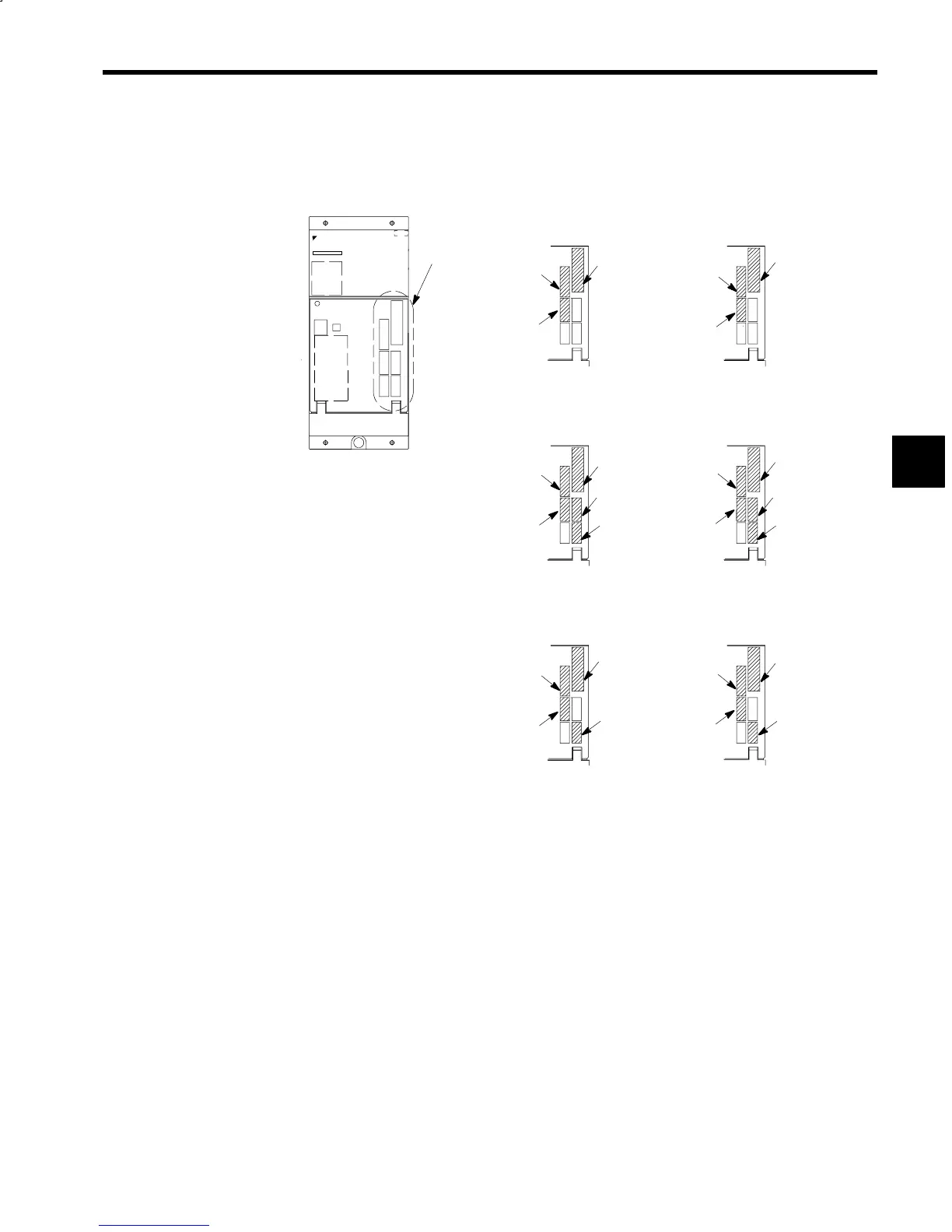

Fig 14.24 Control Connector Attachment Positions
