YASKAWA VS-656MR5

Specifications
14.3.6 Connector Kits
14 -60
J
MDR Connector Shapes
Plugs (Soldered)
With 20 and 36 poles
With 14 and 50 poles
Pin 1
Pin (No. of poles/2+1)
2.54 (0.1)
1.27 (0.05)
1.27 (0.05)
5.1 (0.2)
2.3 (0.091)
12.7 (0.05)
9.1 (0.36)
7.5 (0.3)
5.1 (0.2)
2.3 (0.091)
2.9 (0.11)
6.6 (0.26)
19.3 (0.76)
15
°
Unit: mm (inches)
No. of Poles Product Code A B C Relevant Connector
Number
Manufacturer
14 10114-3000VE 7.62 (0.3) 13.8 (0.54) 18.2 (0.72) 9CN or 10CN
Sumitomo 3M LTD.
20 10120-3000VE 11.43 (0.45) 17.6 (0.69) 22.0 (0.87) 2CN or 8CN
36 10136-3000VE 21.59 (0.85) 27.8 (1.09) 32.2 (1.27) 1CN
50 10150-3000VE 30.48 (1.2) 36.7 (1.44) 41.1 (1.62) 6CN

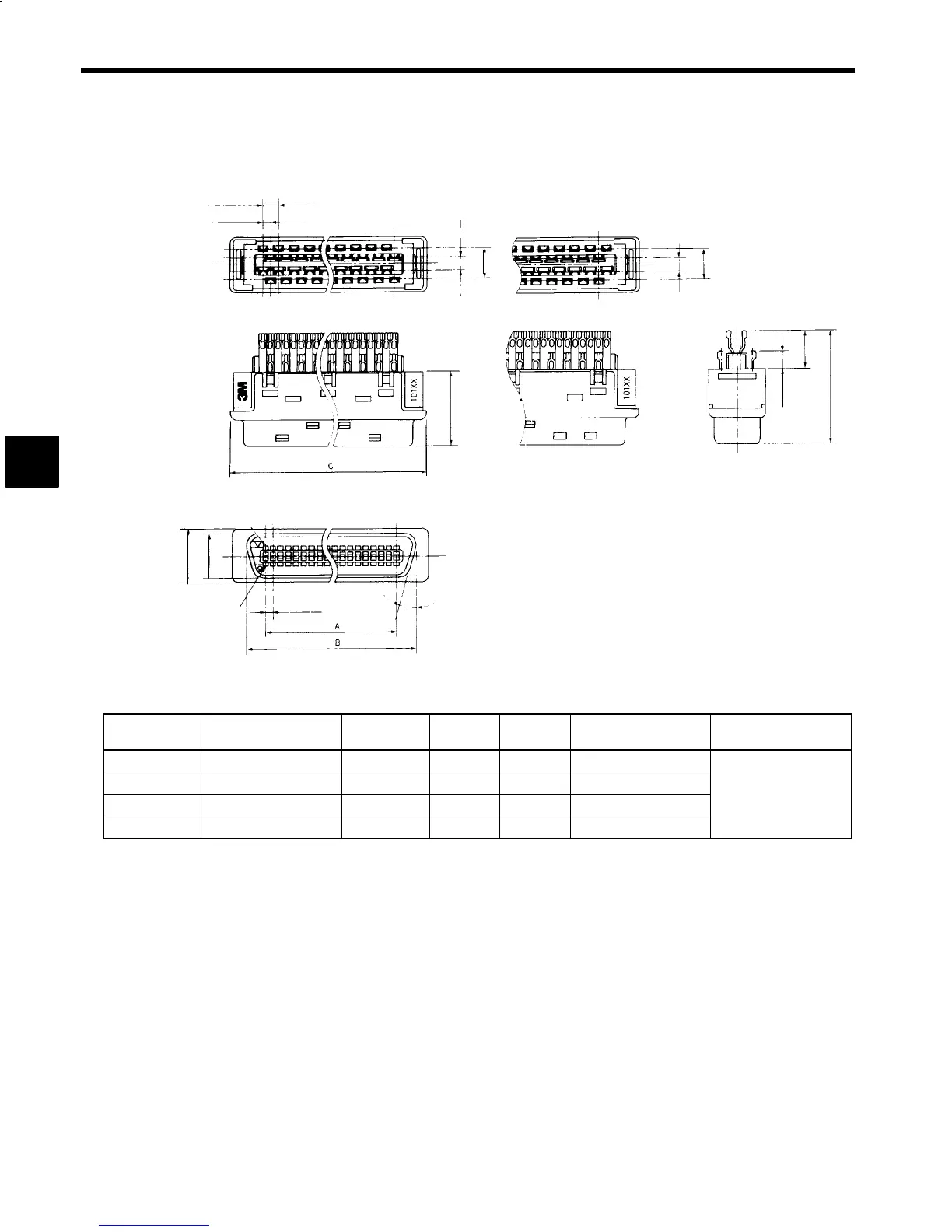

Fig 14.25 MDR Connectors (Plugs)
14
