14.3 Options and Peripheral Units
14 -61
Case (Unshielded)
Jack screw M2.6 with 14 poles
Logo or other display
Jack screw M2.6 with 20 poles
Jack screw M2.6 with 36 or 50 poles
Logo or other display
Logo or other display
Unit: mm (inches)
12.7 (0.5)
23.8 (0.94)
39.0 (1.54)
5.2 (0.2)
8.5 (0.33)
7.0 (0.28)
12.0 (0.47)
10.0 (0.39)
12.7 (0.5)
5.2 (0.2)
23.8 (0.94)
39.0 (1.54)
14.0 (0.55)
8.0 (0.31)
17.0 (0.67)
14.0 (0.55)
39.0 (1.54)
23.8 (0.94)
5.2 (0.2)
12.7 (0.5)
No. of Poles Product Code A B C Relevant Connector
Number
Manufacturer
14 10314-j2j0-008 18.2 (0.72) 29.5 (1.16) 23.6 (0.93) 9CN or 10CN
Sumitomo 3M LTD.
20 10320-j2j0-008 22.0 (0.87) 33.3 (1.31) 27.4 (1.08) 2CN or 8CN
36 10336-j2j0-008 32.2 (1.27) 43.5 (1.71) 37.6 (1.48) 1CN
50 10350-j2j0-008 41.1 (1.62) 52.4 (2.06) 46.5 (1.83) 6CN

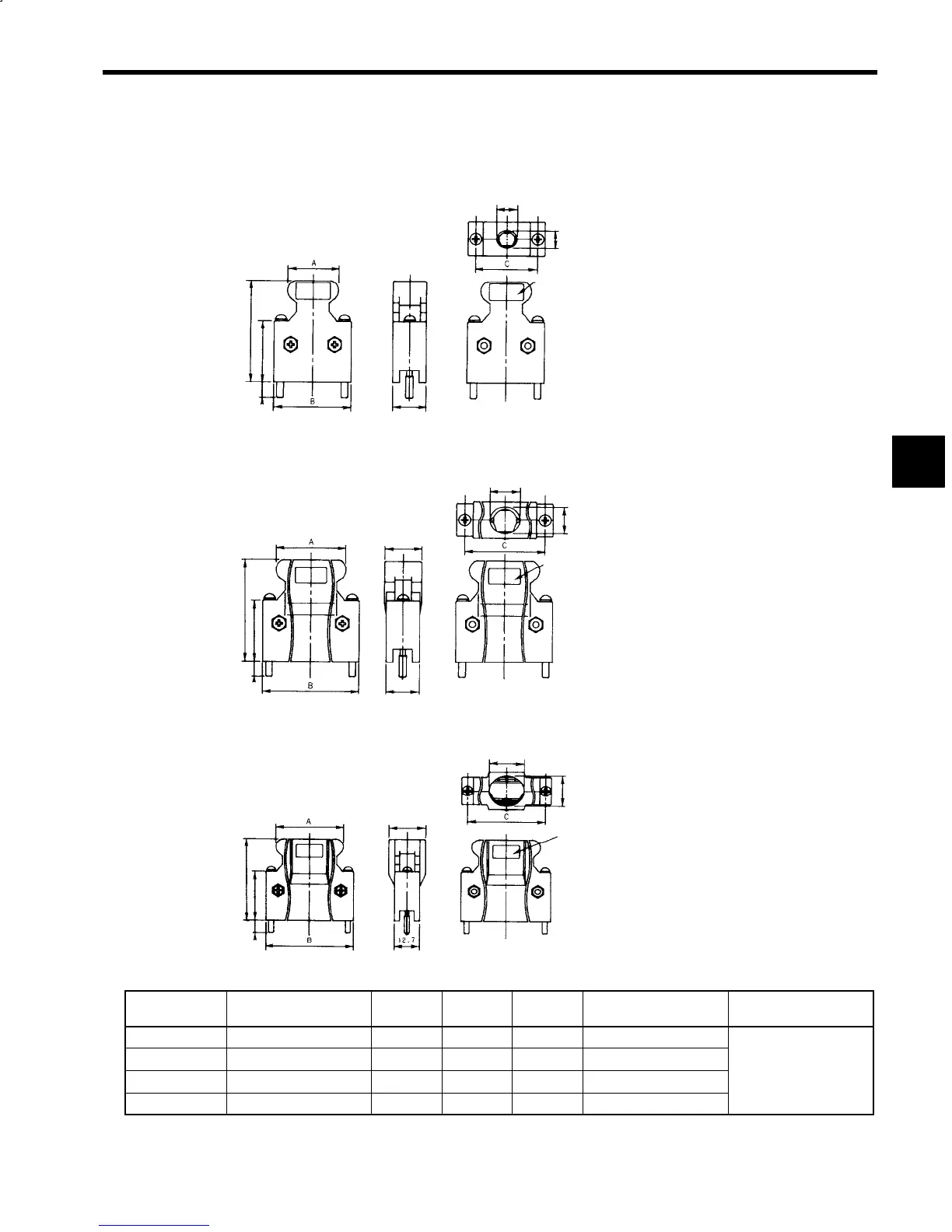

Fig 14.26 MDR Connectors (Case)
