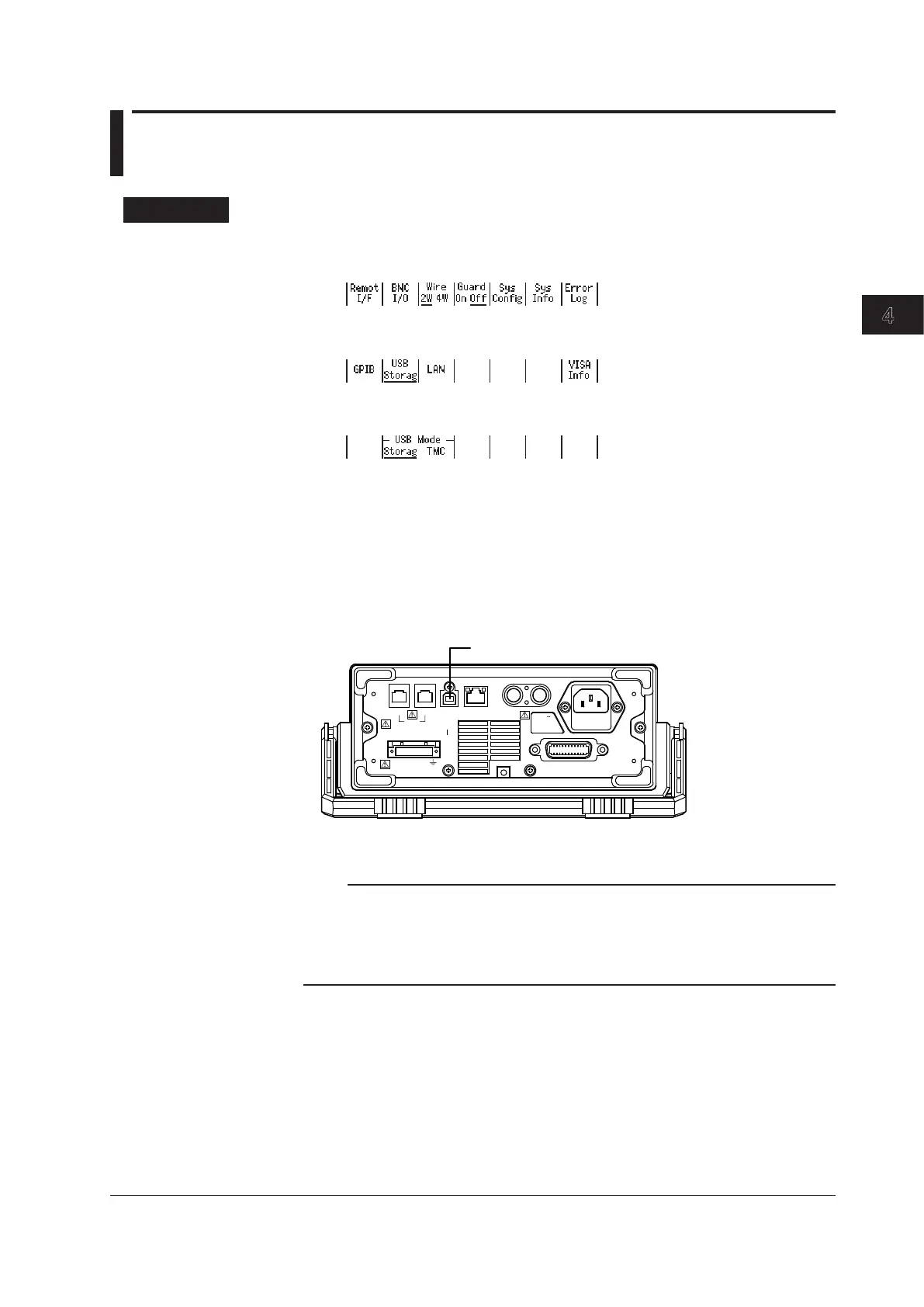

4.4 USB Storage Feature
Procedure
Setting the USB Storage Feature
1.
Press UTILITY to display the following menu.
2.
Press the Remot I/F soft key to display the following menu.
3.
Press the USB soft key to display the following menu.
4.
Press the Storag soft key.
Connection Cable
Use a USB cable that has a type B connector (receptacle).
How to Connect the USB Cable
1.
Connect a USB cable to the USB port on the GS200 rear panel.
LINK
ACT
ETHERNET
100BASE-TX
IN OUT USB
SYNC
IN
OUT
100V AC
80 VA MAX
50/60 Hz
FUSE 250 V T 1A
GP-IB
(
IEEE 488
)
USB port
2.
Connect the other end of the cable to the USB port on your PC.
Note
• Be sure to insert the USB cable connectors firmly into the USB ports.
• Only insert the USB cable into the USB port. Inserting a USB cable into other I/O terminals
may damage the GS200.
• You cannot use the USB storage feature if the USB-TMC command control feature (see
section 10.2, “Setting the USB Interface Mode”) has been selected.
