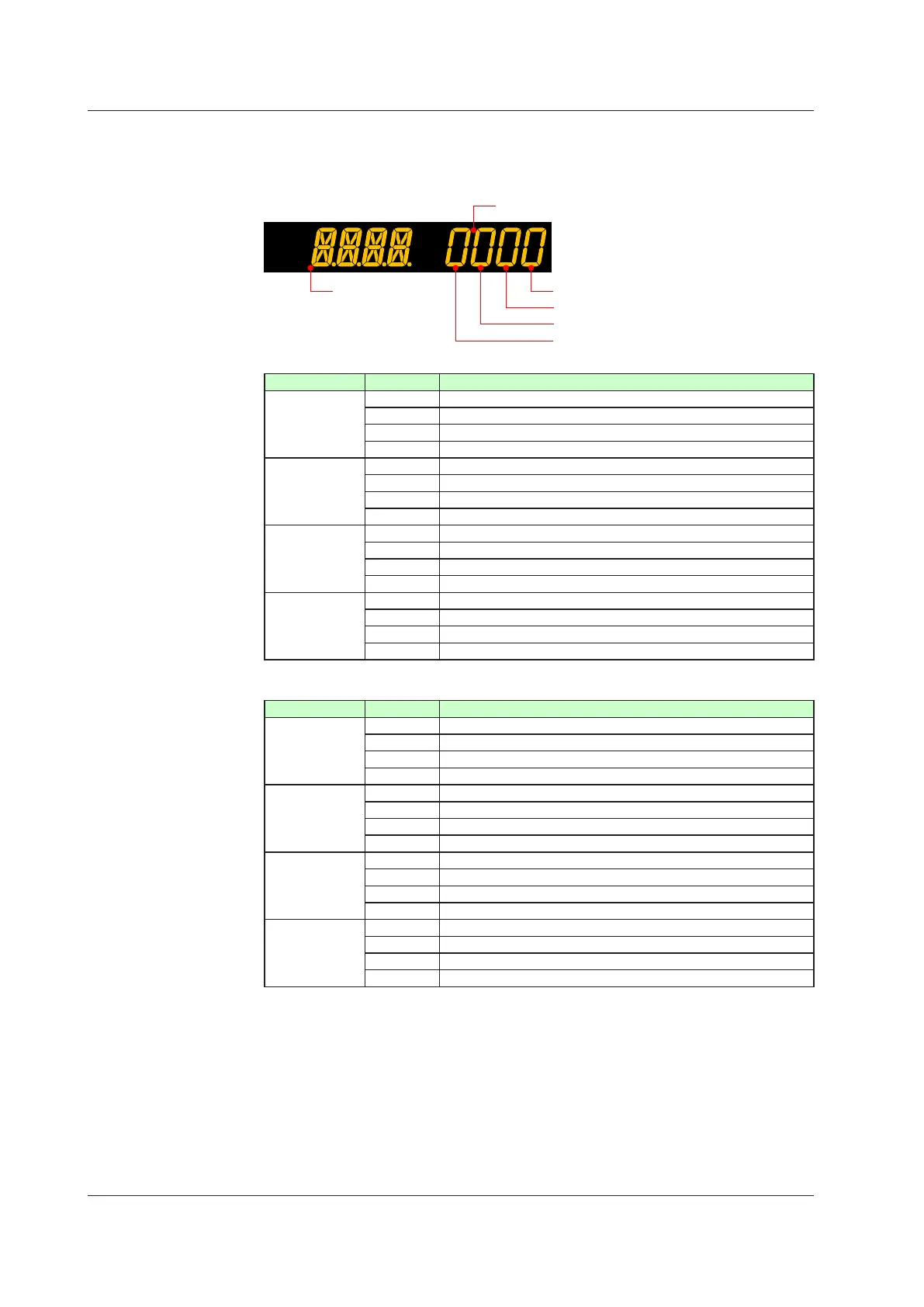

HexadecimalDisplayoftheParameterwhichShowstheErrorDetails
Error confirmation parameters are displayed in hexadecimal.
When the error occurs, "1" is set on the bit of corresponding error.
1st digit (hexadecimal)
2nd digit (hexadecimal)
3rd digit (hexadecimal)
Symbol display
Parameter PA.ER
Displayeddigit bit Description
1st digit 0 System data error
1 Calibration value error
2 User (parameter) default value error
3 –
2nd digit 4 Setup parameter error
5 Operation parameter error
6 Program parameter error
7 –
3rd digit 8 Faulty FRAM
9 –
10 Control parameter error
11 –
4th digit 12 –
13 –
14 –
15 –
Parameter LA.ER
Displayeddigit bit Description
1st digit 0 Ladder program corruption
1 Laddercalculationoverow
2 Ladder program error
3 –
2nd digit 4 Load factor over 100%
5 Load factor over 200%
6 –
7 –
3rd digit 8 –
9 –
10 –
11 –
4th digit 12 –
13 –
14 –
15 –
16.1 Troubleshooting
