Light-loader Communication

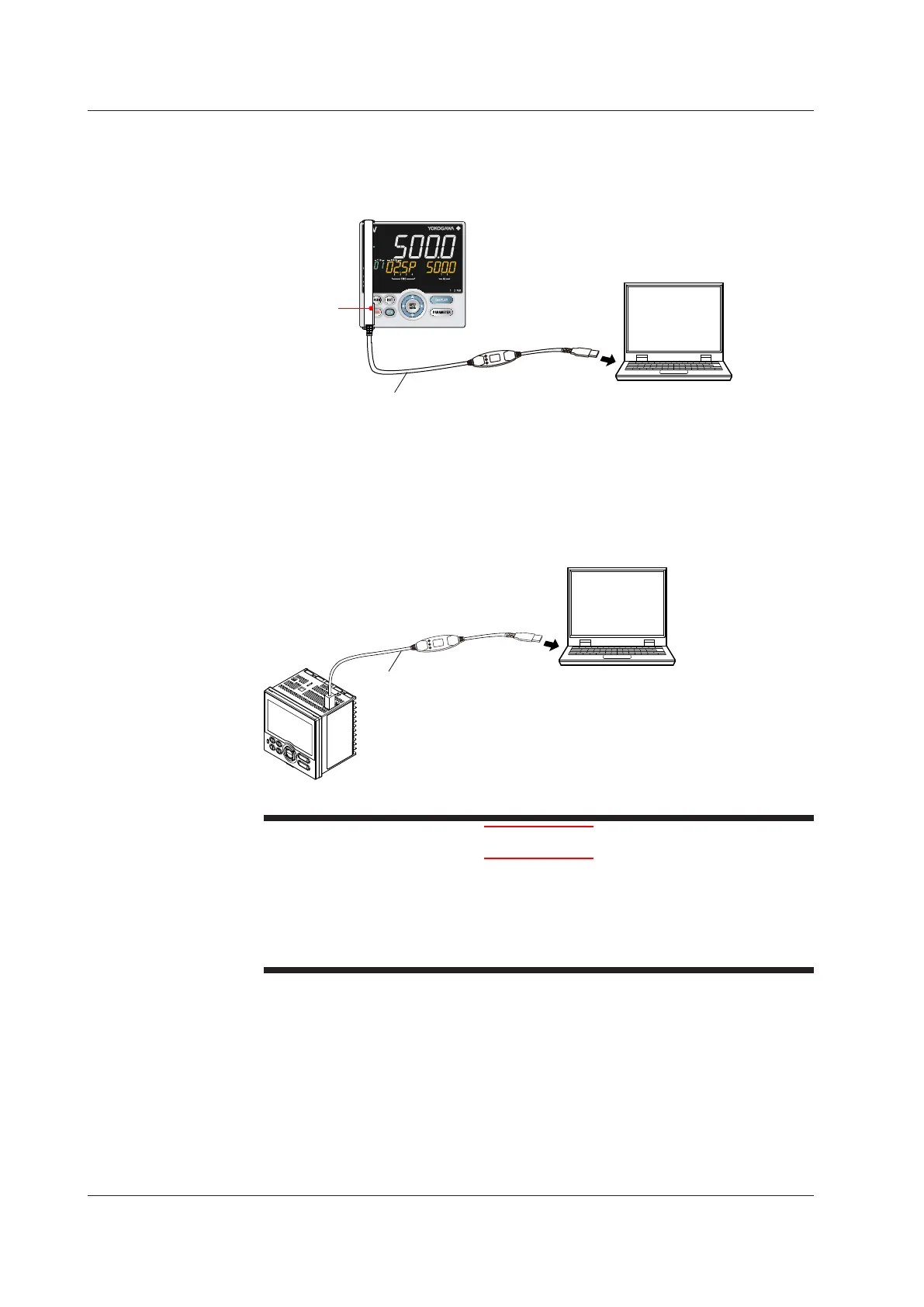

Use the LL50A to set parameters and create ladder programs. Attach the adapter to the
front of the controller to communicate.
► Light-loaderfunction:LL50AParameterSettingSoftwareUser’sManual
Light-loader
adapter
LL50A
Parameter Setting Software
To USB terminal
MaintenancePortCommunication(Powersupplyisnotrequiredforthe
UP35A/UP32A)
Maintenance port is used to connect with the dedicated cable when using LL50A
Parameter Setting Software (sold separately). The parameters can be set without
supplying power to the UP35A/UP32A. Likewise, the ladder program and the program
pattern can also be downloaded.
Dedicated cable
LL50A Parameter Setting Software
To USB terminal
CAUTION
When using the maintenance port, do not supply power to the controller. Otherwise, the
controller does not work normally.
If power is supplied to the controller while the cable is connected, or the cable is
connected to the controller already turned on, unplug the cable and turn on the controller
again. The controller returns to the normal condition.
