17-27

IM 05P02D41-01EN

Installation and Wiring

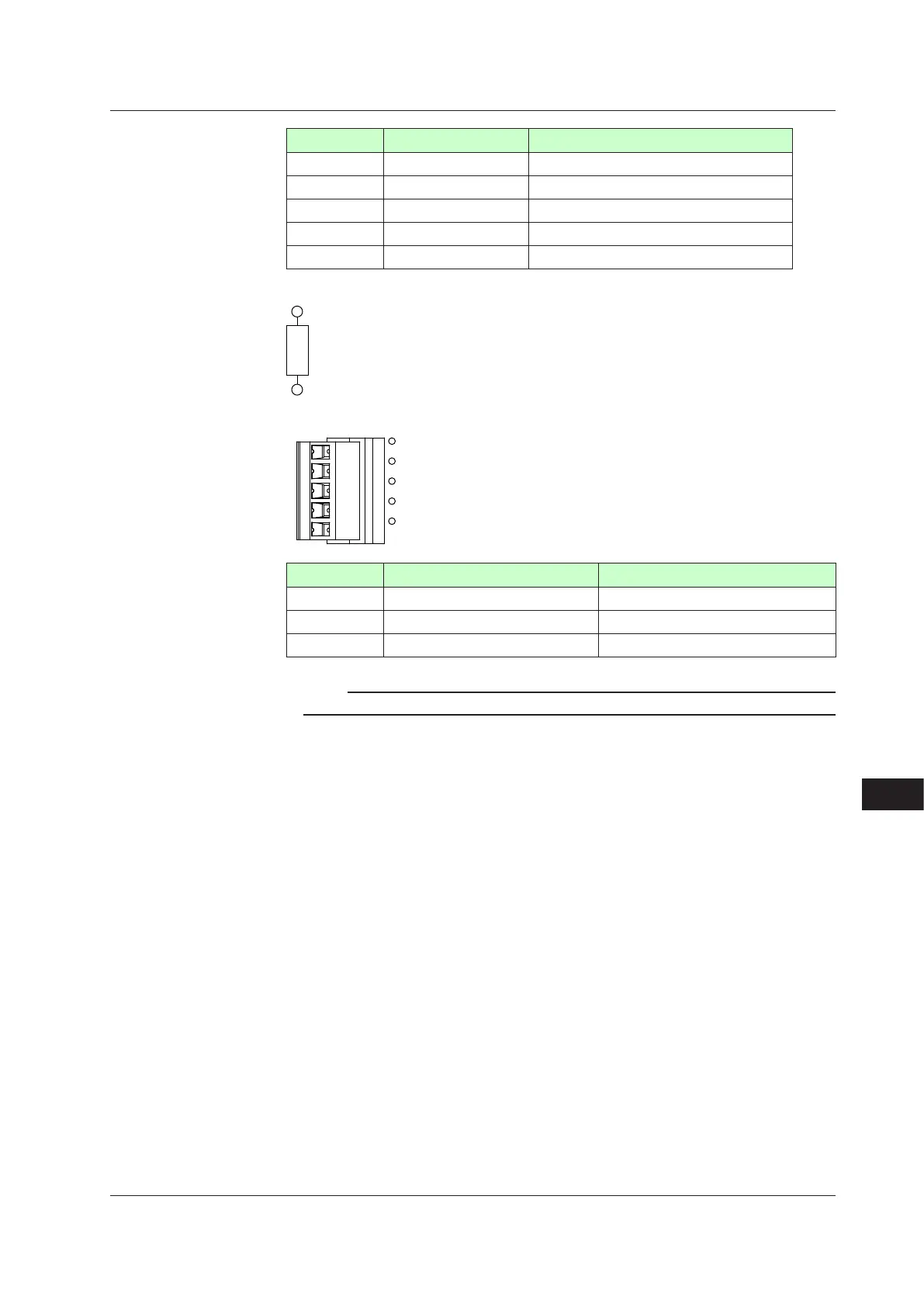

NumberofPin Singnalname Description

1 FG Frame ground

2 SLD Shield

3 DG TX/RXsignalground

4 DB RX/TX-signal

5 DA RS/TX+signal

TerminatingResisterofBus(bothendsofthetrunkline)

110

CC-Link communication connector and LED

CHK

L RUN

L ERR

LED Lit Unlit

CHK (red) Userproleerror/addresserror Normal

L ERR (red) Communication failure (CRC error) Normal

L RUN (green) Normal. Communicating successfully. No carrier detected. / Connection timeout.

Note

Use FG as an exclusive ground. Be sure to ground using a low grounding resistance.

Modbusmasterwiring

Modbus master wiring is same as RS-485 communication wiring for Ethernet-serial

gateway function.

Up to 32 UTAdvanced series controllers can be connected.
