3-6

IM 05P02D41-01EN

MaintenancePort(PowersupplyisnotrequiredfortheUP35A/UP32A).

The maintenance port is used to connect with the dedicated cable when using LL50A

Parameter Setting Software (sold separately). The parameters can be set without

supplying power to the UP35A/UP32A.

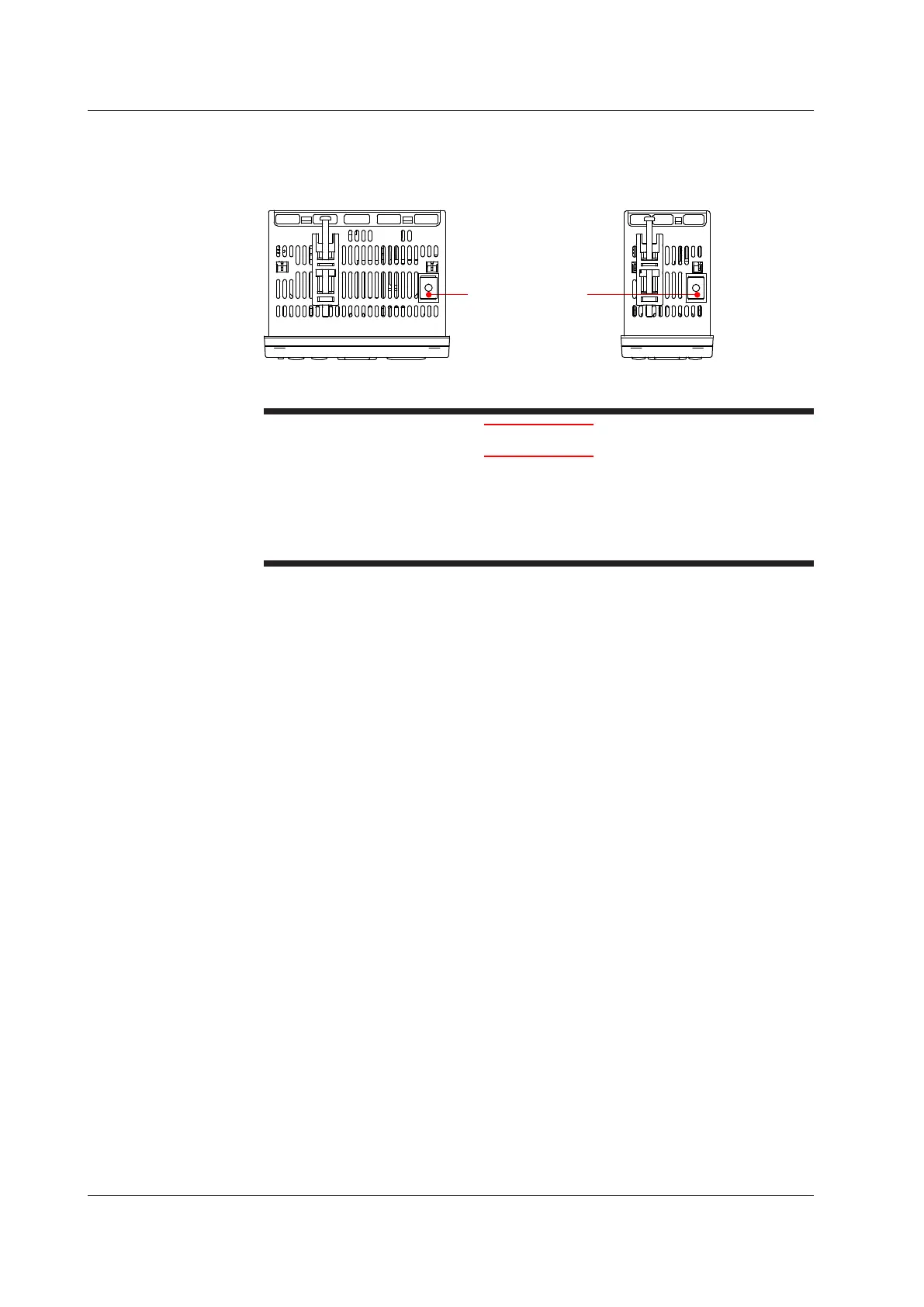

Maintenance port

UP35A UP32A

上面上面

CAUTION

When using the maintenance port, do not supply power to the controller. Otherwise, the

controller does not work normally.

If power is supplied to the controller while the cable is connected, or the cable is

connected to the controller already turned on, unplug the cable and turn on the controller

again. The controller returns to the normal condition.

3.2NamesandFunctionsofKeys
