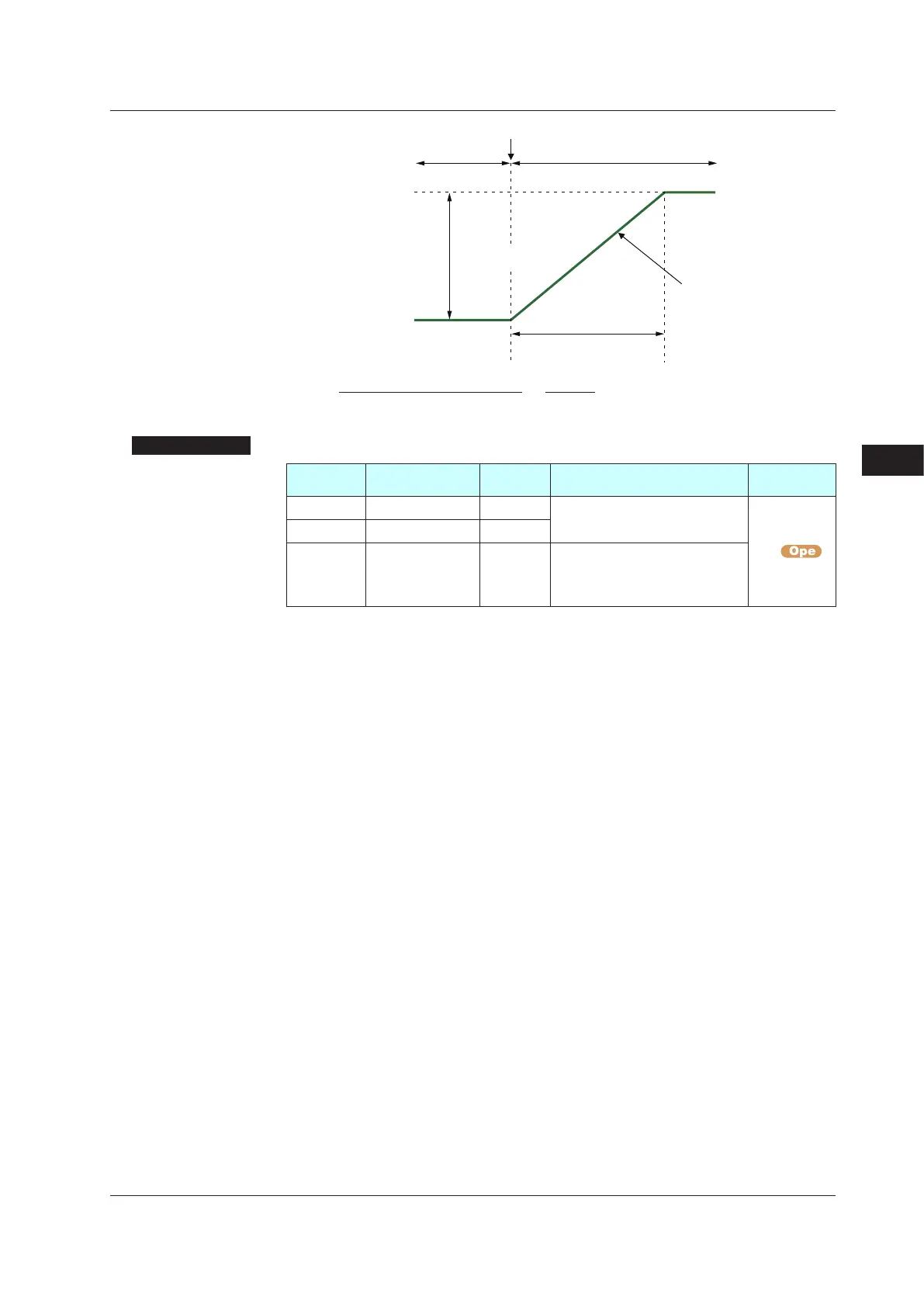

Auxiliary Control Functions
9
70ºC/min
UPR = 140/2 = 70 (ºC/min)
Temperature rise time of 2 min.
SP of group 2SP of group 1
SP of group 2= 640ºC
SP of group 1 = 500ºC
SP switch
Temperature
difference of 140ºC
UPR = =
Time (min)
Temperature difference (ºC)
= 70 (ºC/min)
2 min
140ºC
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
UPR SP ramp-up rate EASY
OFF,0.0
+1digitto100.0%ofPV
input range span (EUS)
SPS
DNR SP ramp-down rate EASY
TMU
SP ramp-rate time
unit
EASY
HOUR: Ramp-up rate or ramp-
down rate per hour
MIN: Ramp-up rate or ramp-down
rate per minute
Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
9.2ChangingSPataFixedRate(SPRamp-RateSettingFunction)
