Parameters
18
18.1 ParameterMap
BriefDescriptionofParameterMap
Group Display
"E1 to E4" and "1 to 8, R" appearing in the parameter map are displayed on Group
display (7 segments, 2 digits) while the menu or parameter is displayed.
E1: indicates the parameter in E1-terminal area
E2: indicates the parameter in E2-terminal area
E3: indicates the parameter in E3-terminal area
E4: indicates the parameter in E4-terminal area
1 to 8, R: indicate the group numbers
► E1toE4:Terminalassignmentsin17.4Wiring
Loop-2 Display
"LP2" appearing in the parameter map indicates that the LP2 lamp (green) is lit.
LP2: indicates that the parameter is for Loop 2. Loop 2 is used when the control mode is
Cascade control.
ParameterDisplayLevel
The marks below appearing next to the menu symbol and parameter symbol in the
parameter map indicate the display/non-display level.
Mark Display Displaylevel Description
None EASY
Easy setting mode: Displays
the minimum parameters.
Corresponding parameters are displayed
in all modes.
S
STD
Standard setting mode:
Displays a wider range of
parameters than displayed in
the Easy setting mode.
Corresponding parameters are displayed
only in Standard setting mode and
Professional setting mode.
Parameter display level indicators
"EASY" and "PRO" are unlit in Standard
setting mode.
*: "STD" is the symbol used in this
manual only.
P
PRO

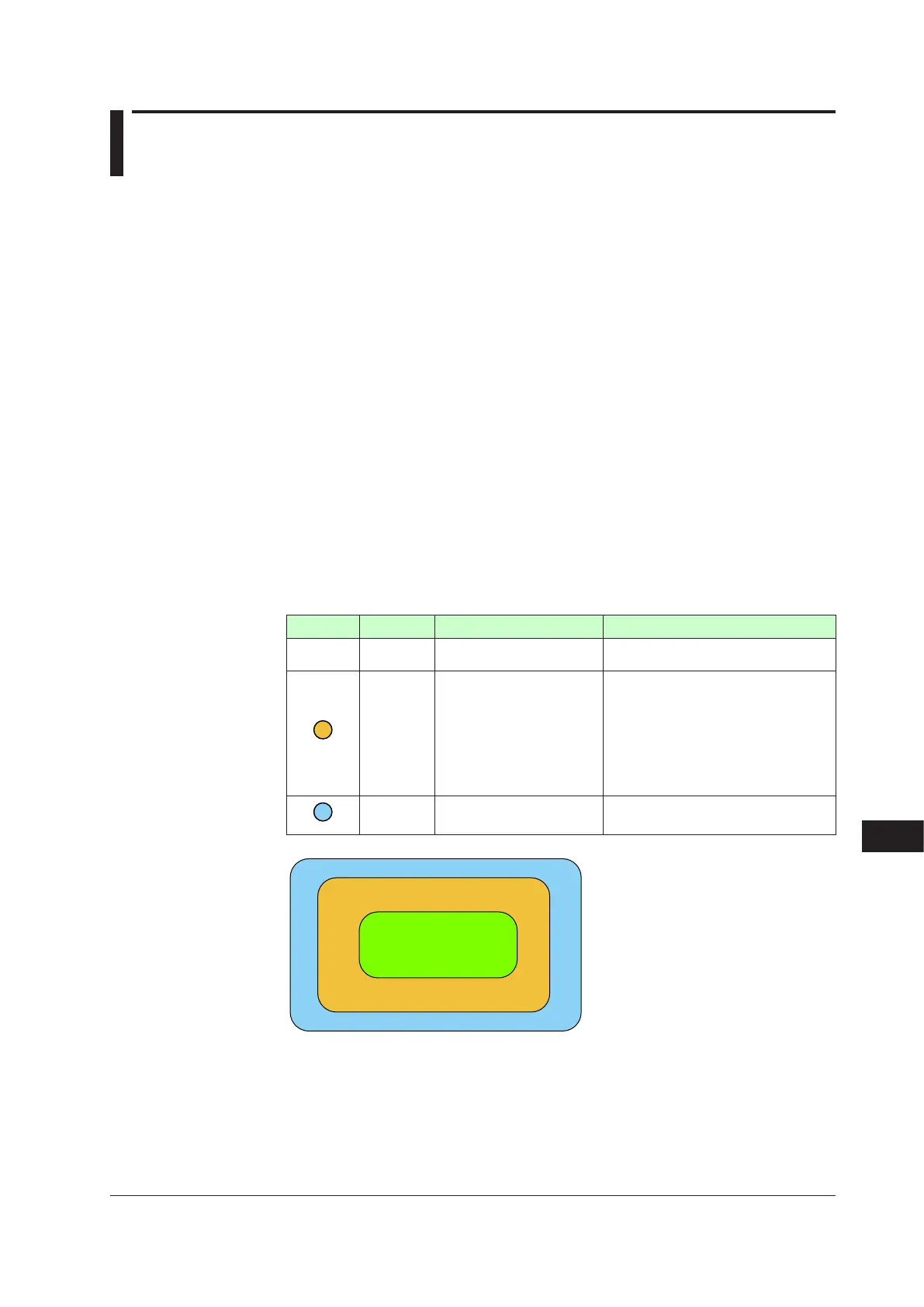

Professional setting mode:
Displays all parameters.
Corresponding parameters are displayed
only in Professional setting mode.
Professional setting mode
Standard setting mode
Easy setting mode
► Displaylevel:13.3.2SettingParameterDisplayLevel
Chapter18Parameters
