YOKOGAWA UT55A User Manual

6-31
IM 05P01C31-01EN
MonitoringandControlofRegularOperations
6

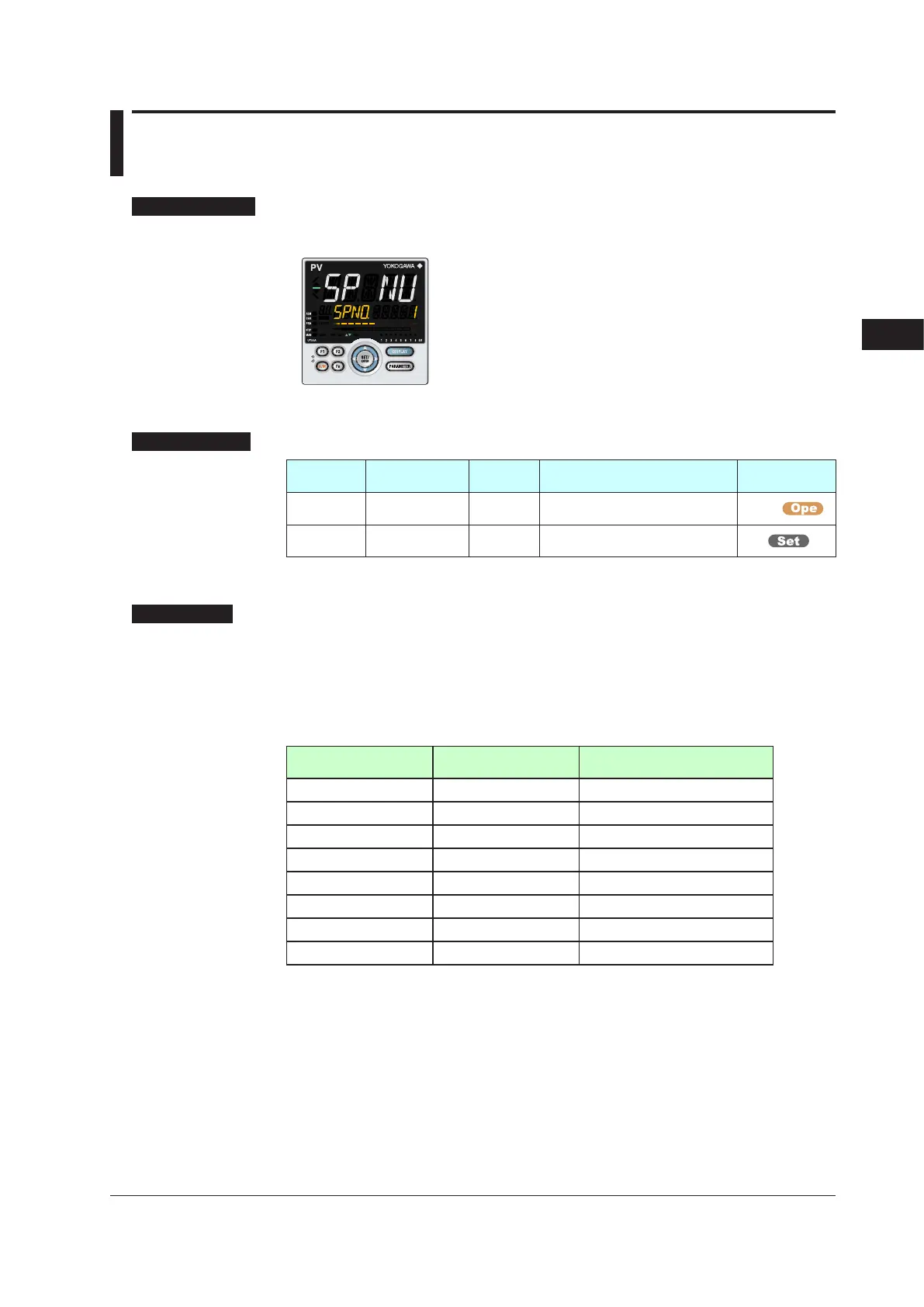

6.6 SelectingTargetSetpointNumber(SPNO)
Setting Display
Parameter Setting Display
Operation Display > PARAMETER or PARA key for 3 seconds
(to [MODE] Menu Display) > SET/ENTER key (The setting
parameter is displayed.) > Down arrow key (The setting
parameter is displayed.)
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
SPNO.
SP number
selection
EASY
1 to 8 (Depends on the setup
parameter SPGR. setting.)
MODE
SPGR.
Number of SP
groups
STD 1 to 8 CTL
Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
Description
TheSPnumber(SPNO)
selectioncanbeusedwhentheparameterZON(zonePID
selection) is set to “SP group number selection.”
SPGroupNumber
Selection
The PID group which is set in the PID number selection (PIDN) of each SP group is
used.
SPnumber(SPNO) Targetsetpoint(SP)
SettingrangeofPIDnumber
selection(PIDN)
1 SP 1 to 8
2 SP 1 to 8
3 SP 1 to 8
4 SP 1 to 8
5 SP 1 to 8
6 SP 1 to 8
7 SP 1 to 8
8 SP 1 to 8
When the SP parameter is displayed, the SP number is shown on Group display.
► Selectionbycontactinput:12.1SettingContactInputFunction
