17-32

IM 05P01C31-01EN

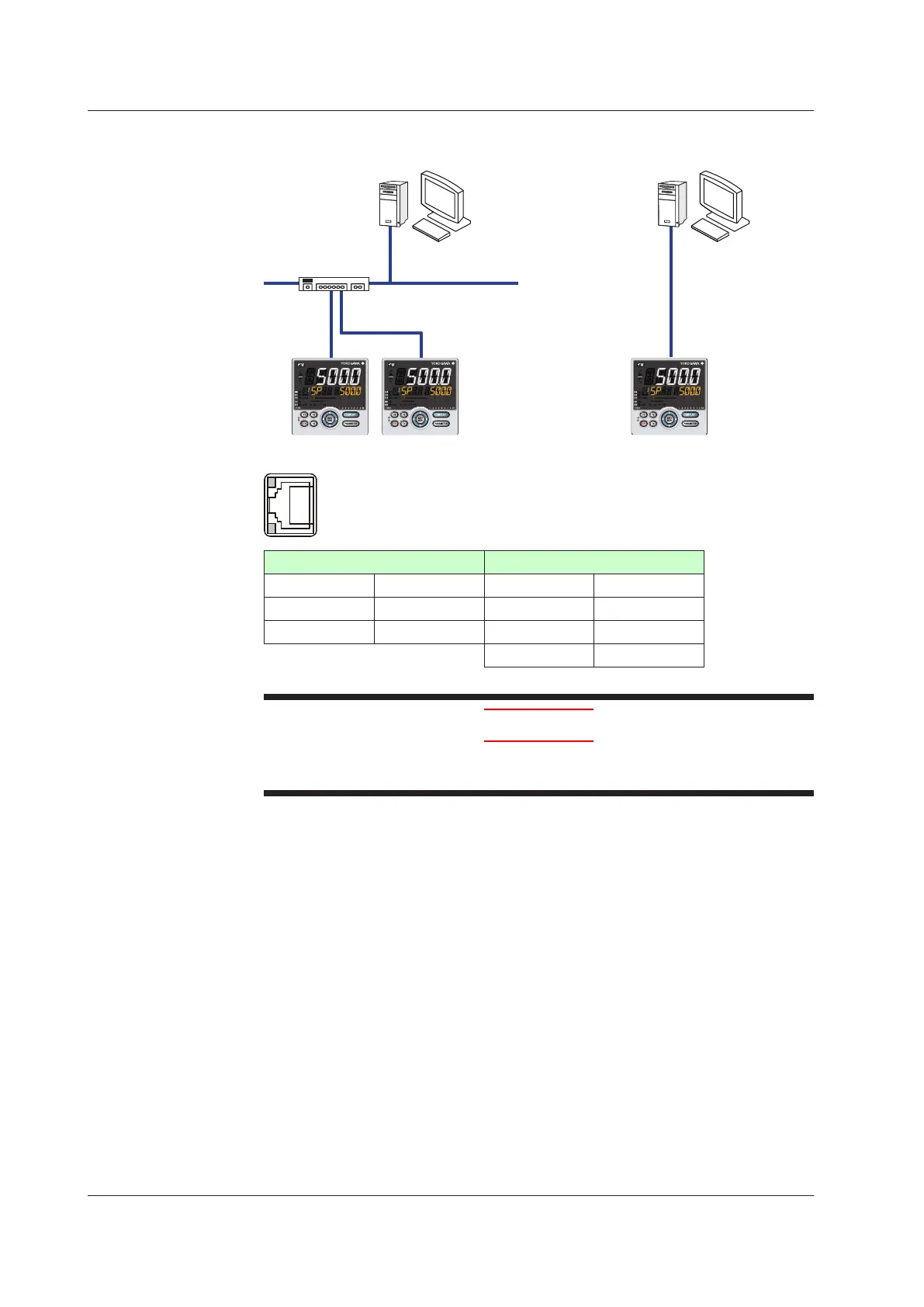

17.4.15 Ethernet Communication Interface Wiring

Ethernet

Straight cable

HUB

UT55A UT55A

Crossing cable

*Devices that can be

connected via Ethernet

*Devices that can be

connected via Ethernet

UT55A

Upper side LED (baud rate) Lower side LED (link activity)

Color Amber Color Green

Lit 100Mbps Lit Linked

Unlit 10Mbps Blink Active

Unlit Link failure

CAUTION

BesuretoconnectalightningarresterforEthernet(100BASE-TX/10BASE-T)inan

environmentwhereasurgevoltagemaybeinducedbyalightningdischarge.

17.4 Wiring
