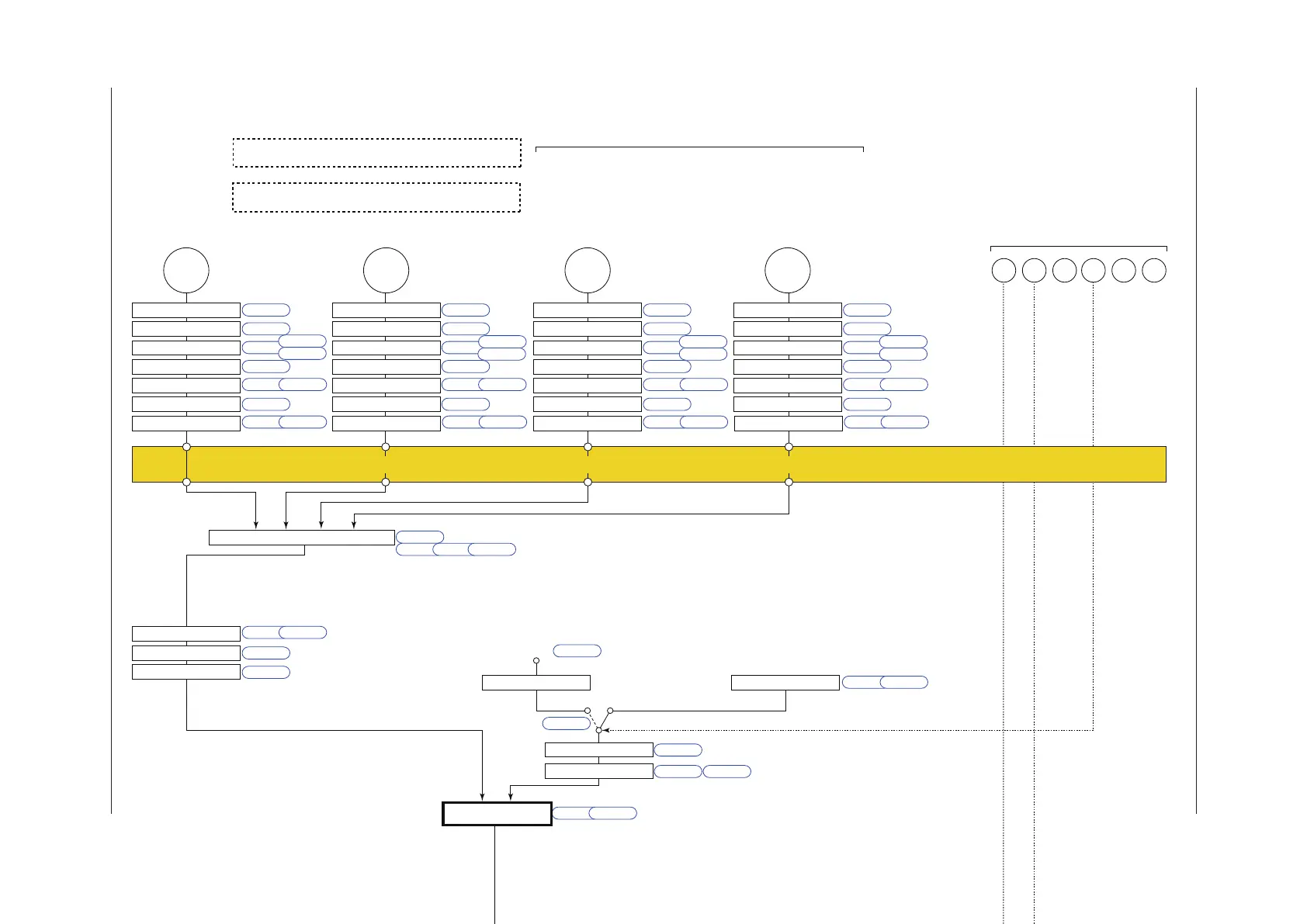

LoopControlwithPVAuto-selector(4inputs)FunctionBlockDiagram(onlyforUT55A)
Target setpoints 1 to 8
COM
Output limiter
Manual operation
Manual preset output
Error preset output
Preset output
AUTO (ON)/MAN (OFF) switch
STOP (ON)/RUN (OFF) switch
LOCALREMOTE
AUTO
When sensor
burnout occurs
Normal
MAN
RUNSTOP
SP ramp rate
SP limiter
DI26 DI46PV AIN2
Input type
Input unit
Input range/scale
Analog input bias
Square root extraction
Analog input filter
Input type
Input unit
Input range/scale
Analog input bias
Square root extraction
Analog input filter
10-seg. linearizer approx./bias
PV input bias
PV input filter
Ratio bias computation
PV auto-selector (Max., Min., Ave., Diff.)
Output limiter
A.BS
A.FL
BS
FL
PMD An, Bn
10-seg. linearizer approx./bias
PMD An, Bn
10-seg. linearizer approx./bias
PMD An, Bn
10-seg. linearizer approx./bias
PMD An, Bn
10-seg. linearizer approx./bias
PMD An, Bn
PV.AS
P.UNI P.DP P.RH, P.RL
CNT ALG
UPR, DNR TMU
SPNO SP
R/L
SPH, SPL
A.SR A.LC
UNIT
IN
RH, RL
SDP
SH, SL
A.BS
A.FL
A.SR A.LC
UNIT
IN
RH, RL
SDP
SH, SL
RSP
Input type
Input unit
Input range/scale
Analog input bias
Square root extraction
Analog input filter
A.BS
A.FL
A.SR A.LC
UNIT
IN
RH, RL
SDP
SH, SL
AIN4
Input type
Input unit
Input range/scale
Analog input bias
Square root extraction
Analog input filter
A.BS
A.FL
A.SR A.LC
UNIT
IN
RH, RL
SDP
SH, SL
EPO
OH, OL
OH, OL OLMT
PO
S/R
MPON
OT
Equipped as standard Equipped as standard
Heater break alarm
HAL2HAL1
Heater break
alarm 1
Heater break
alarm 2
Current or
voltage pulse
Relay
LPS
24 V loop
power supply
Current
OUTOUT RET AL3AL2AL1
PMD
OU.H OU.L
An, Bn
Split computation
10-seg. linearizer approx./bias
RET.H RET.L
PMD An, Bn
Split computation
10-seg. linearizer approx./bias
OUT retransmission output
O1RS
RET retransmission output
RTS
Alarm
Output terminal assignment
DI16DI2 DI3DI1
A/M
REMOTE (ON)/LOCAL (OFF) switch
Control computation
(Current when retransmission output)
No function
is assigned
to DI3, DI26,
and DI46.
PV input 1 PV input 2 PV input 3 PV input 4 Contact inputs
Aux. analog (remote) input (E1-terminal area) Aux. analog input (E2-terminal area) Aux. analog input (E4-terminal area)Equipped as standard
Necessary for Loop control with PV auto-selector for 3 inputs or 4 inputs
Can be used when UT55A suffix code: Type 2 = 7 and
not in Loop control with PV auto-selector for 4 inputs.
However, use the LL50A to set remote input.
Sensor burnout occurs when PV, RSP, AIN2, or AIN4 input burnout occurs.
However, burnout is not detected if input is not conncted.
* After the control output terminal is specified by the parameter OT,
other current output terminals can be used as retransmission output.
Alarm 1
(PV high limit)
Alarm 2
(PV low limit)
Alarm 3
(PV high limit)
Terminal Parameter Function
Analog signal Contact signal Front panel key
Legend
PV display
SP display
Input ladder calculation program (signal goes to the control computation as is when without ladder program). For ladder program, see the LL50A Parameter Setting Software User’s Manual.
Output ladder calculation program (signal goes to the output as is when without ladder program). For ladder program, see the LL50A Parameter Setting Software User’s Manual.
RMS
*1: RS-485, Ethernet, PROFIBUS-DP,
DeviceNet, CC-Link
(For Detailed model) UT55A optional suffix code /R1 is necessary.
(For Detailed model) When UT55A
optional suffix code /A2.
(For Standard model) When UT55A
suffix code: Type 2 = 7.
(For Detailed model) When UT55A
optional suffix code /A4 or /AC4.
(For Standard model) When UT55A
suffix code: Type 2 = 7.
(For Detailed model)
DI16 is equipped when UT55A optional suffix code /R1.
DI26 is equipped when UT55A optional suffix code /A2.
DI46 is equipped when UT55A optional suffix code /A4 or
/AC4.
(For Standard model)
DI16 is equipped when UT55A
suffix code: Type 2 = 1, 2, 4, 5, or 7.
(For Standard model) UT55A suffix code: Type 2 = 1, 2, 4, 5, or 7 is necessary.
Universal input (E1-terminal area) can be used when UT55A
optional suffix code /U1. However, DI16 does not exist.
For the model with optional suffix code /DR: Refer to the function
block diagram of Loop control with PV auto-selector (2 inputs).
