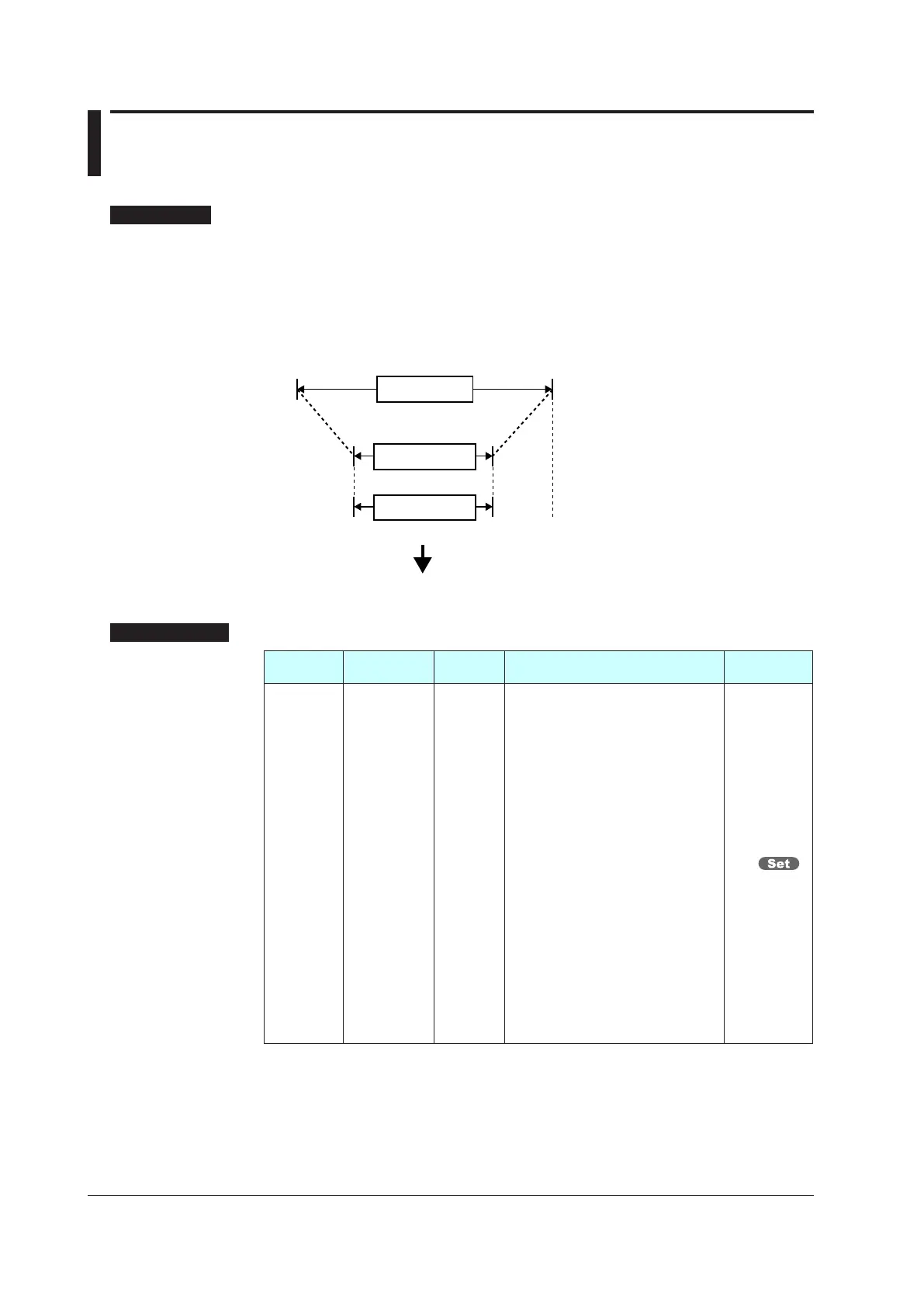

10.11SettingRetransmissionOutputTerminal,Type,
and Scales
Description
The retransmission output can be used when the control output is not assigned to
the analog output terminal. Confirm the output type selection (OT) before setting the
retransmission output. The range can be changed.
► Controloutputterminal:10.1SettingControlOutputType
► Currentoutputrange:10.14ChangingCurrentOutputRange
20 mA (output signal)
0.0
°C 200.0 °C
4 mA
50.0 °C 150.0 °C
Retransmission scale
PV scale
Output range
Minimum value of
PV input range
Maximum value of
PV input range
To Recorder
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
RTS
Retransmission
out type of
RET
EASY
OFF: Disable
PV1:PV
SP1: SP
OUT1:OUT(Valveopening:0to
100%inPositionproportionalcontrol)
LPS:15VDClooppowersupply
PV2:Loop-2PV
SP2: Loop-2 SP
OUT2: Loop-2 OUT
TSP1: Target SP
HOUT1: Heating-side OUT
COUT1: Cooling-side OUT
MV1:Positionproportionaloutput
(internal computed value)
TSP2: Loop-2 target SP
HOUT2: Loop-2 heating-side OUT
COUT2: Loop-2 cooling-side OUT
MV2:Loop-2positionproportional
output (internal computed value)
PV:PVterminalsanaloginput
RSP: RSP terminals analog input
AIN2: AIN2 terminals analog input
AIN4: AIN4 terminals analog input
OUT
