7-16

IM 05P01C31-01EN

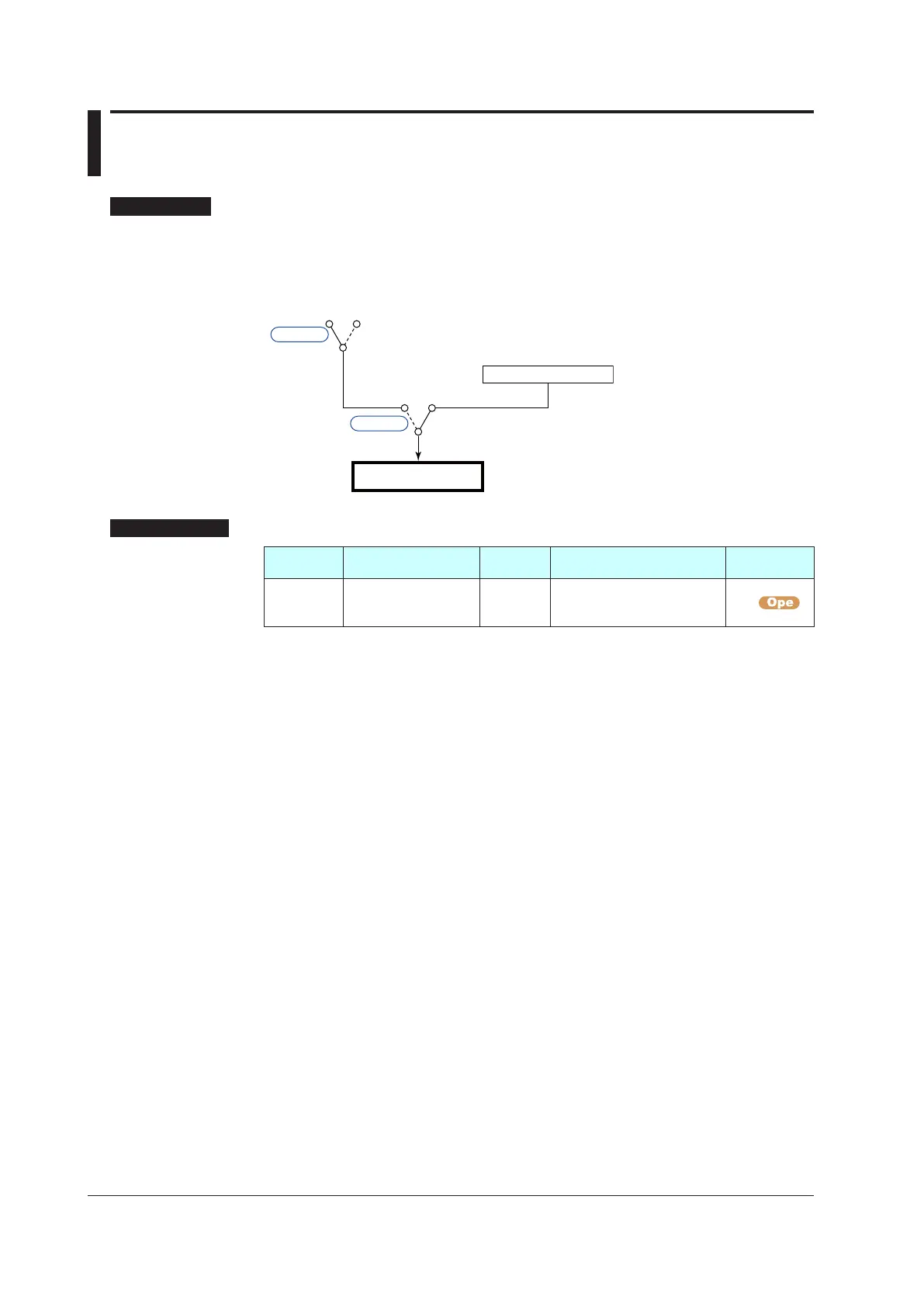

7.5 SettingRemoteInputMethod

Description

There are two methods for remote input: analog input and communication.

Decide which to use among two methods in advance.

Analog input: Remote setting using external analog signal (RSP terminal)

Communication: Remote setting via external communication.

Target setpoints 1 to 8

Program pattern operation

COM

Analog input

LOCALREMOTE

R/L

RMS

Control computation

Setting Details

Parameter

symbol

Name

Display

level

Setting range Menusymbol

RMS Remote input method STD

RSP:Via

remote(auxiliary

analog) input

COM:Viacommunication

SPS

Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
