YOKOGAWA UT55A User Manual

13-5
IM 05P01C31-01EN
Display, Key, and Security Functions
13

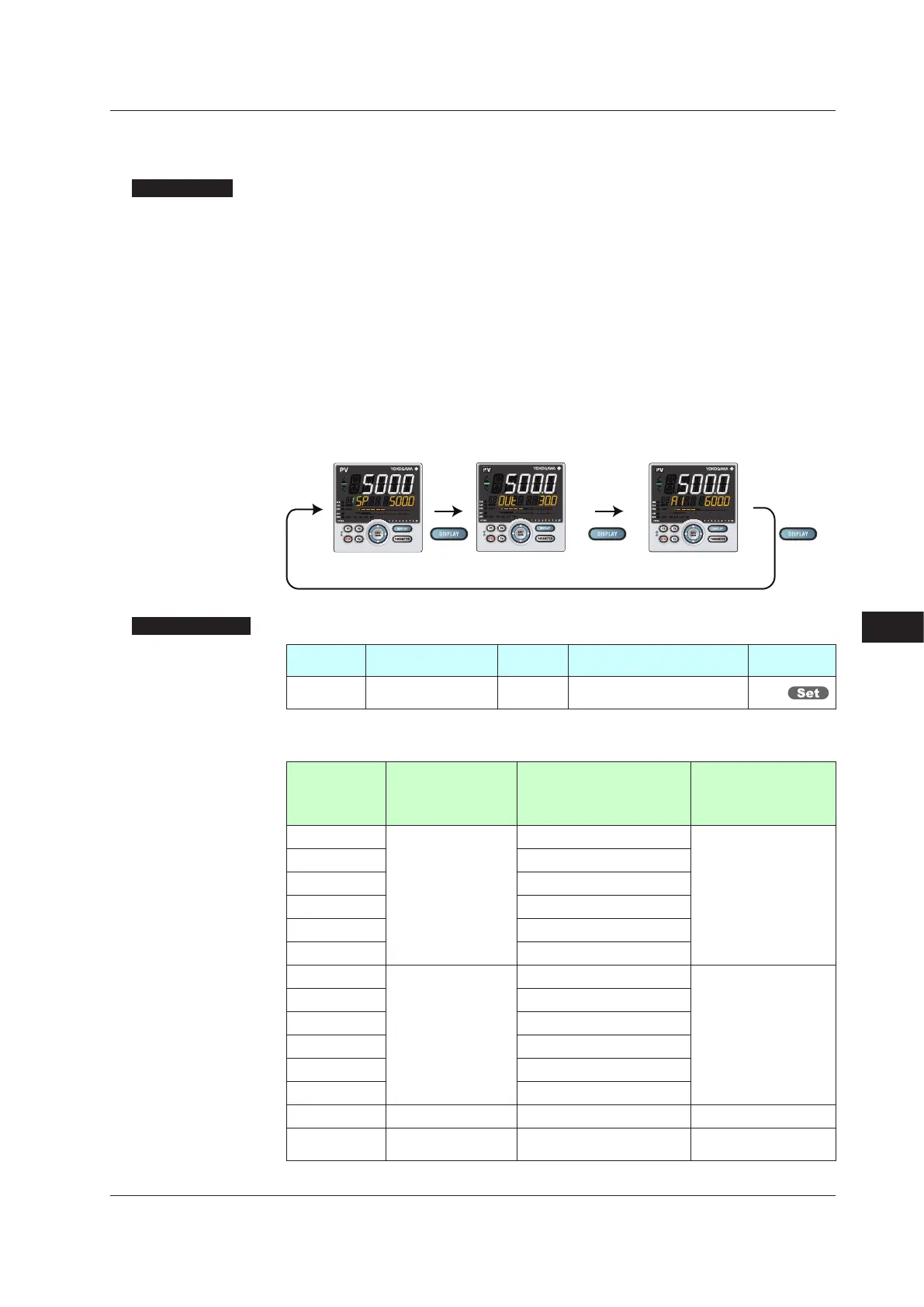

13.1.3 RegisteringSELECTDisplay(Upto5Displays)
Description
Registering frequently changed-operation parameters (except for the operation mode)
in the SELECT Display of the Operation Displays will allow you to change parameter
settings easily. A maximum of five Displays can be registered.
Set the D register number of the parameter you wish to register for the registration to the
SELECT Display.
However, the parameters in the following menu cannot be set:
CTL,
PV,
RSP,AIN2,AIN4,MPV,OUT,HBA,R485,ETHR,DNET,PROF,DNET,CC-L,
KEY,DISP,CSEL,KLOC,MLOC,DI.SL,DI.NU,DI.D,ALM,DO,I/O,SYS,INIT,VER,
andLVL.
When each parameter is displayed, the terminal area (E1 to E4) is displayed on Group
display according to the suffix code and optional suffix code.
SP Display
Ordinary Operation Displays
OUT Display
SELECT Display
Example: Alarm Setpoint Setting Display
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
CS1 to CS5
SELECT Display-1 to
-5 registration
STD
OFF: No registration D register
number (2301 to 5000)
CSEL
For D register numbers, see sections 6.4.3 to 6.4.6 in the UTAdvanced Series Communication
Interface User’s Manual.
D Resistor
Number
Category Description
Reference in
Communication
Interface
User's Manual
2501 to 2700
Loop-1 Operation
Parameters
SP and alarm setpoint setting
Section 6.4.3
2701 to 2800 SP-related settings
2801 to 2900 Alarm function settings
2901 to 3000 PV
-relatedsettings
3001 to 3500 PID settings
3501 to 3600 Control action-related settings
3601 to 3800
Loop-2 Operation
Parameters
SP and alarm setpoint setting
Section 6.4.4
3801 to 3900 SP-related settings
3901 to 4000 Alarm function settings
4001 to 4100 PV
-related
settings
4101 to 4600 PID settings
4601 to 4700 Control action-related settings
4701 to 4800 P Parameters P parameters Section 6.4.5
4801 to 5000
10-segmentLinearizer
Setting Parameters
10-segment
linearizersettings Section 6.4.6
13.1 Setting Display Functions
