Display, Key, and Security Functions
13.1.8 ChangingDeviationDisplayLampAction
Description

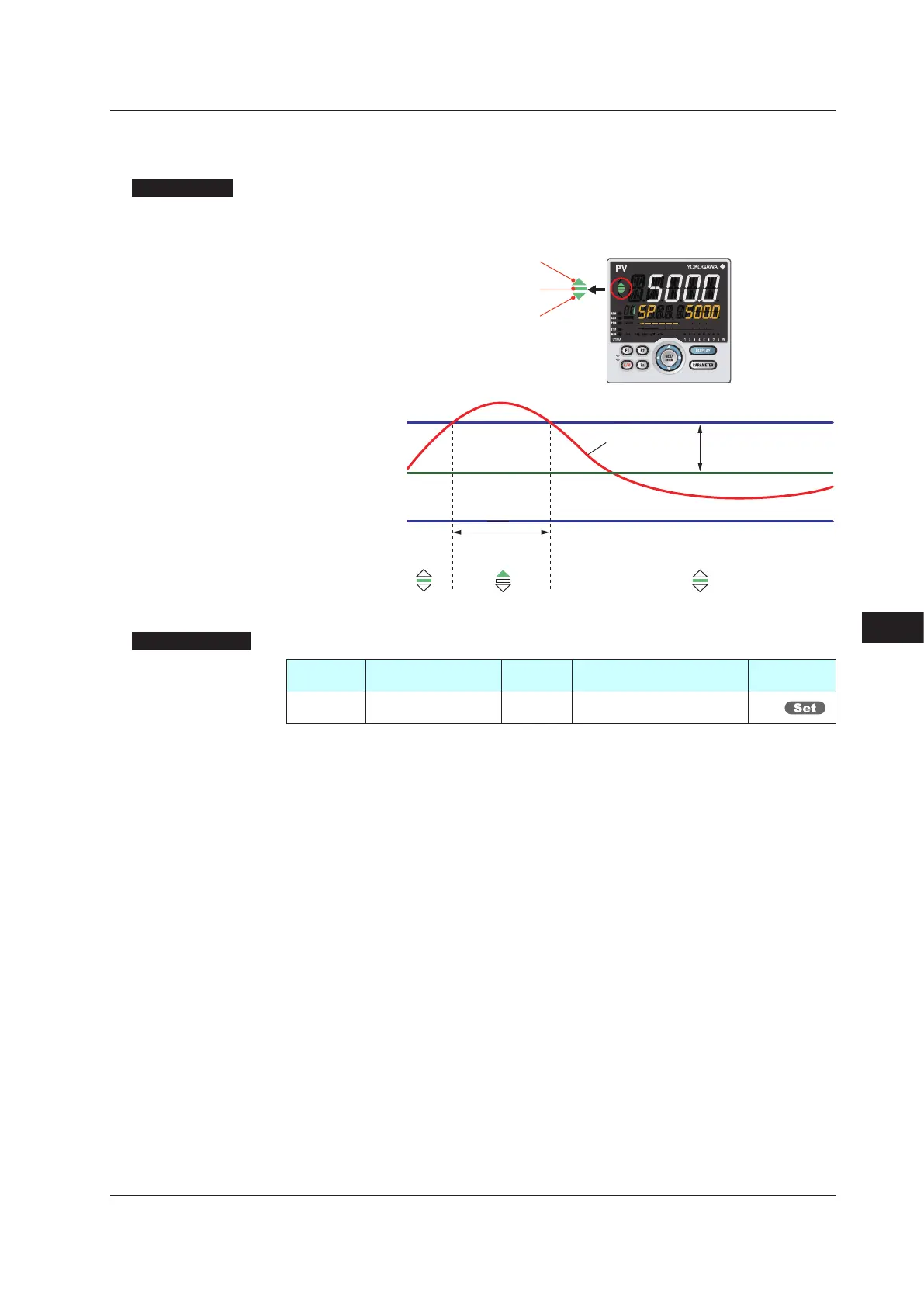

Thedeviationdisplayshowstheconditionof(PV–SP).
The deviation display is only for the UT55A.
Lit when exceeding SP + (deviation display band).
Lit when exceeding SP – (deviation display band).
Lit when within (Deviation display band).
PV
SP + (deviation display band)
Deviation display band
SP
– (deviation display band)
SP
Deviation indicator is lit.
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
DVB Deviation display band STD
0.0to100.0%
ofPVinput
range span (EUS).
DISP
Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
13
13.1 Setting Display Functions
