YOKOGAWA UT55A User Manual

6-6
IM 05P01C31-01EN
Position Proportional Type

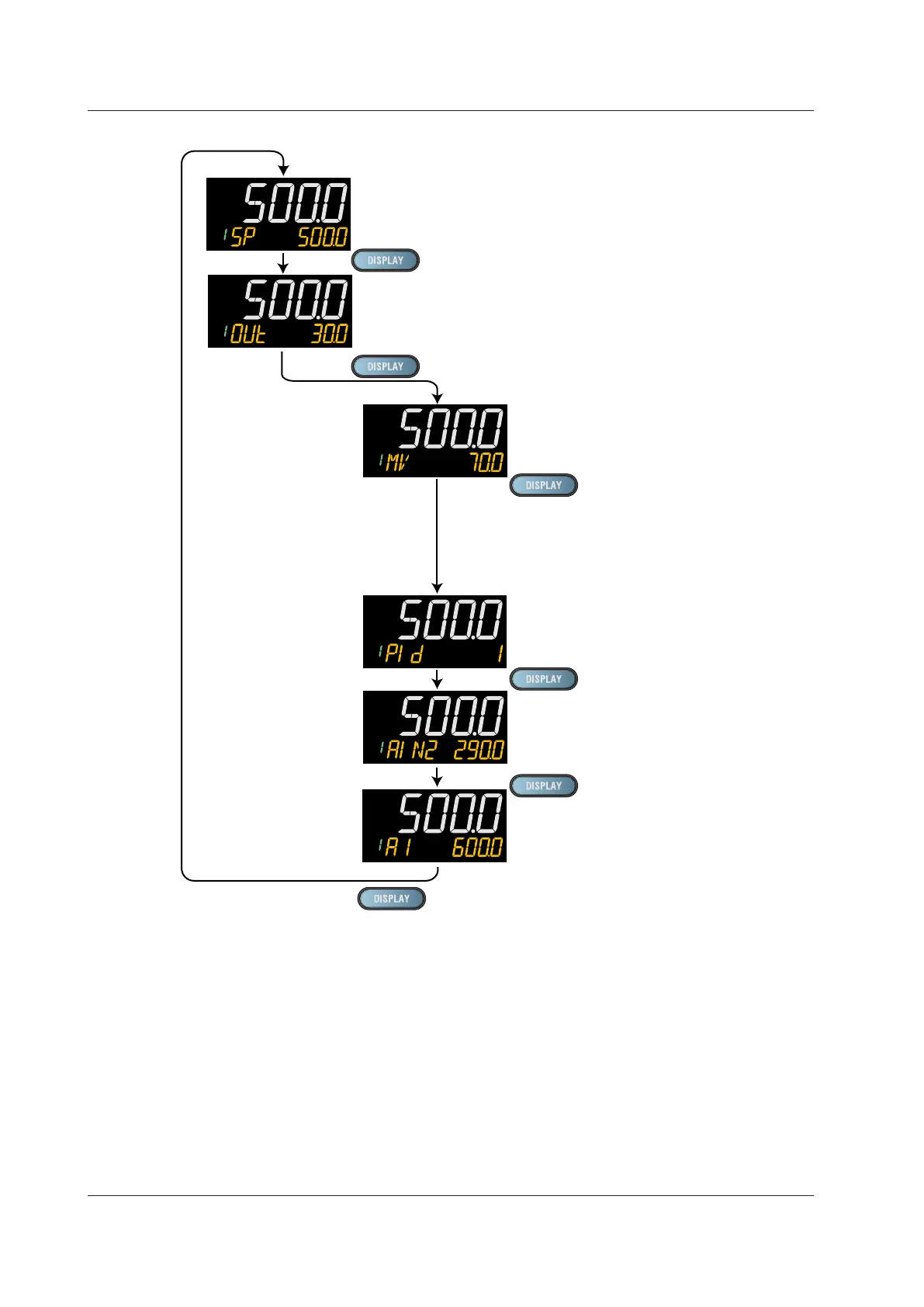

Program Pattern Number Display (Display only)
Parameter RMS = PROG
SP Display (SP can be changed.)
Valve Position Display (display only)
Position Proportional Computation Output Display
(Factory default: non-display)
PID Number Display (display only)
(Factory default: non-display)
SELECT Displays 1 to 5
(Displayed only when SELECT Display is registered.)
(The figure on the left is the example of
the parameter A1 (alarm-1 setpoint).)
Analog Input Displays (display only)
PV: PV analog input,
RSP: RSP analog input (E1-terminal area),
AIN2: AIN2 analog input (E2-terminal area),
AIN4: AIN4 analog input (E4-terminal area)
(Depends on the aux. analog input and the control mode.)
