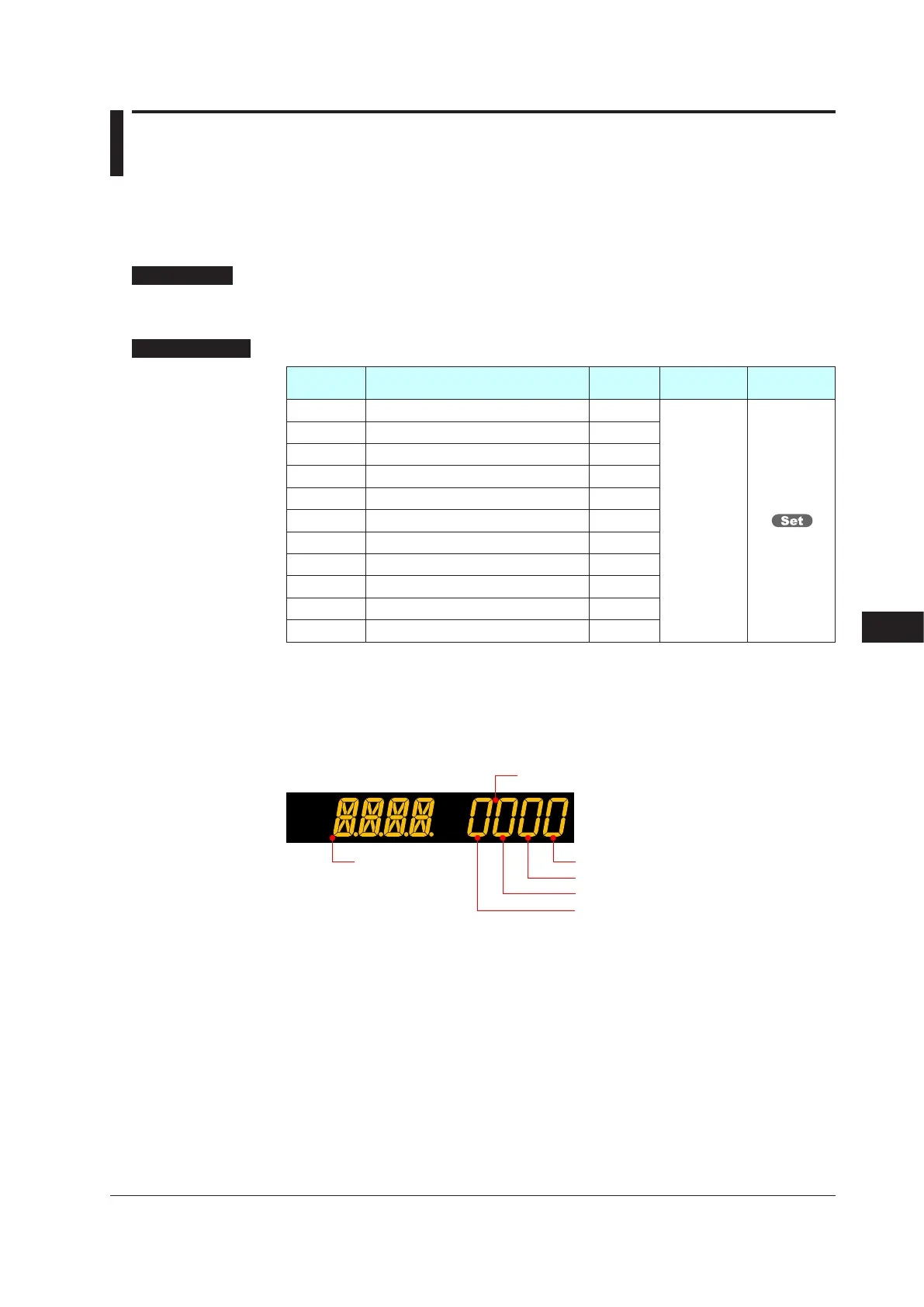

YOKOGAWA UT55A User Manual

13-27
IM 05P01C31-01EN
Display, Key, and Security Functions
13.4 ConfirmationofKeyandI/OConditionand
Version
13.4.1 ConfirmationofKeyandI/OCondition
Description
Can be confirm the Key and I/O condition.
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
KEY Key status PRO
Read only. I/O
X000 DI1-DI3 status (equipped as standard) PRO
X100 DI11-DI16 status (E1-terminal area) PRO
X200 DI21-DI26 status (E2-terminal area) PRO
X300 DI31-DI35 status (E3-terminal area) PRO
X400 DI41-DI46 status (E4-terminal area) PRO
Y000 AL1-AL3 status (equipped as standard) PRO
Y100 DO11-DO15 status (E1-terminal area) PRO
Y200 DO21-DO25 status (E2-terminal area) PRO
Y300 DO31-DO35 status (E3-terminal area) PRO
Y400 DO41-DO45 status (E4-terminal area) PRO
Note: When each parameter is displayed, the terminal area (E1 to E4) is displayed on Group display
according to the suffix code and optional suffix code.
Key confirmation parameters are displayed in hexadecimal.
When the error occurs, "1" is set on the bit of corresponding error , and the bit data is
displayed in hexadecimal.
Data display
1st digit (hexadecimal)
2nd digit (hexadecimal)
3rd digit (hexadecimal)
4th digit (hexadecimal)
Symbol display
13
