Auxiliary Control Functions
9

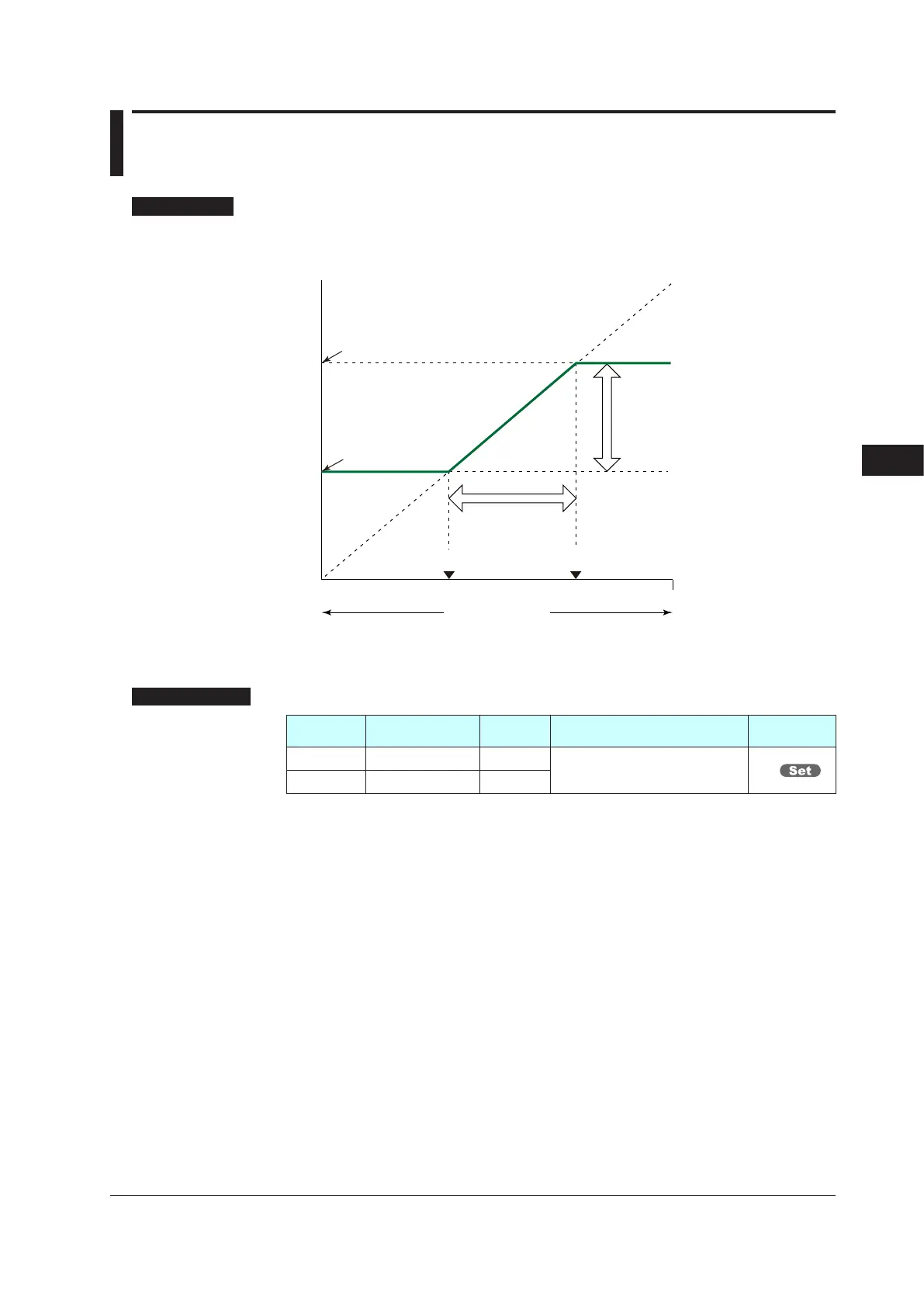

9.1 SettingSPLimiter
Description
The SP high and low limits can be set to restrict the SP to the range between those limits
whether in REM (remote) or LCL (local) mode. They works to the SP of all SP groups.
In Cascade control, the SP high and low limits can be set for both Loop1 and Loop 2.
0.0
100.0(%)
Setting range
SPH
Actual SP
SPL
Setting range of actual SP
Original setting range
0.0
(%)
100.0
High limit of SP
Low limit of SP
► SPgroup:6.2SettingTargetSetpoint
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
SPH SP high limit STD
0.0to100.0%
ofPVinputrange
(EU), (SPL<SPH)
MPV
SPL SP low limit STD
Note1: In Cascade control, the LP2 lamp is lit while the Loop-2 parameter is displayed.
