YOKOGAWA UT55A User Manual

10-5
IM 05P01C31-01EN
Output(ControlandRetransmission)Functions
10

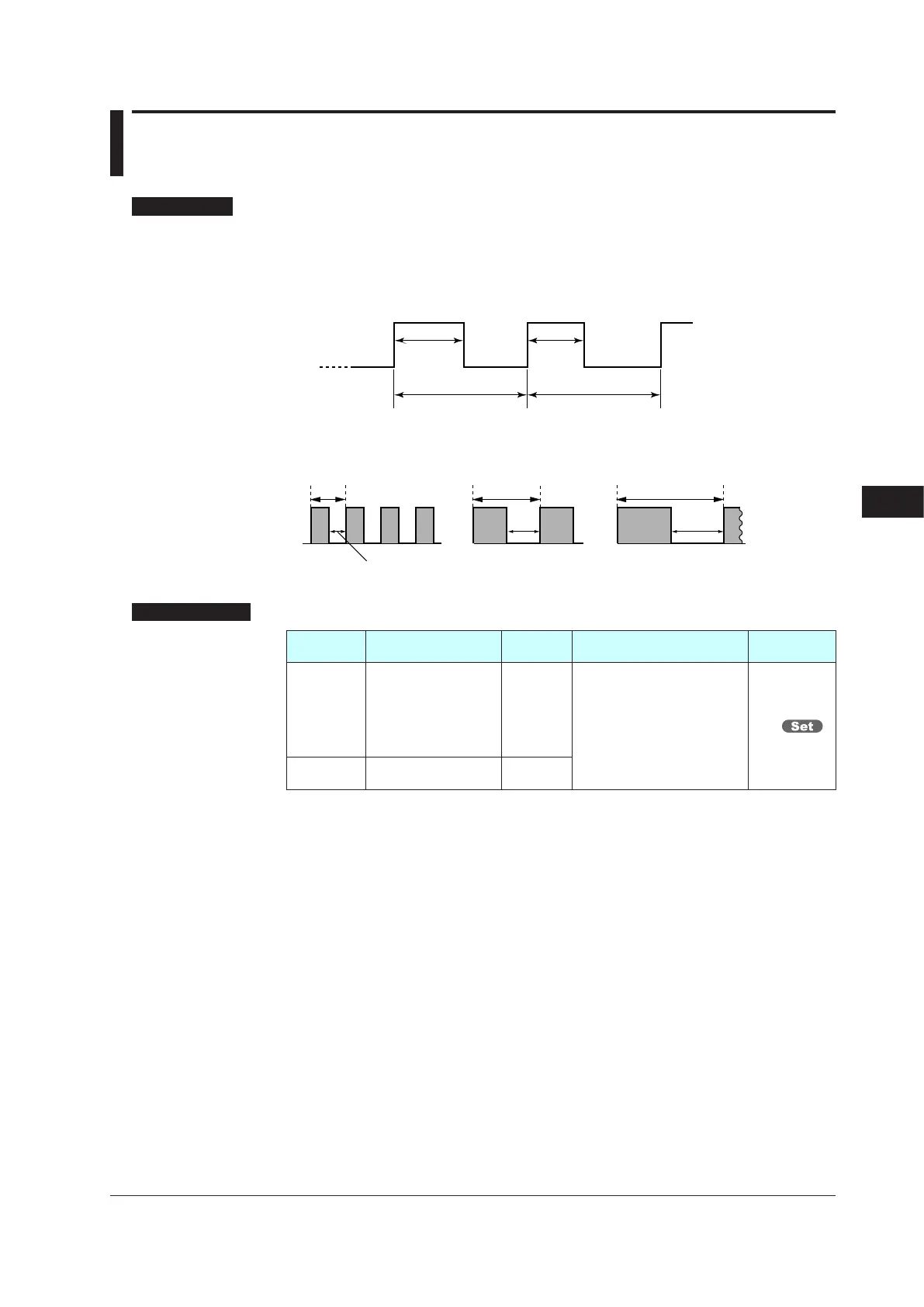

10.2 SettingControlOutputCycleTime
Description
Cycle time is the basic cycle period for a signal full cycle of ON/OFF operation for a relay
or voltage pulse output. Reducing cycle time results in faster cycling and finer control. In
contrast, reducing the ON/OFF period also reduces relay life. For relay output, set the
control output cycle time to 30 to 200 seconds according to the process speed.
ON
ON ON ON
On time On time
ON
OFF OFF
OFF OFF OFF
Cycle time Cycle time
Comparison of operations for the same control output (50%)
Cycle time = 10 sec Cycle time = 20 sec Cycle time = 40 sec
5 sec
10 sec 20 sec
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
CT
Control output cycle
time
Heating-side control
output cycle time
(in Heating/cooling
control)
EASY
0.5 to 1000.0 s OUT
CTc
Cooling-side control
output cycle time
EASY
