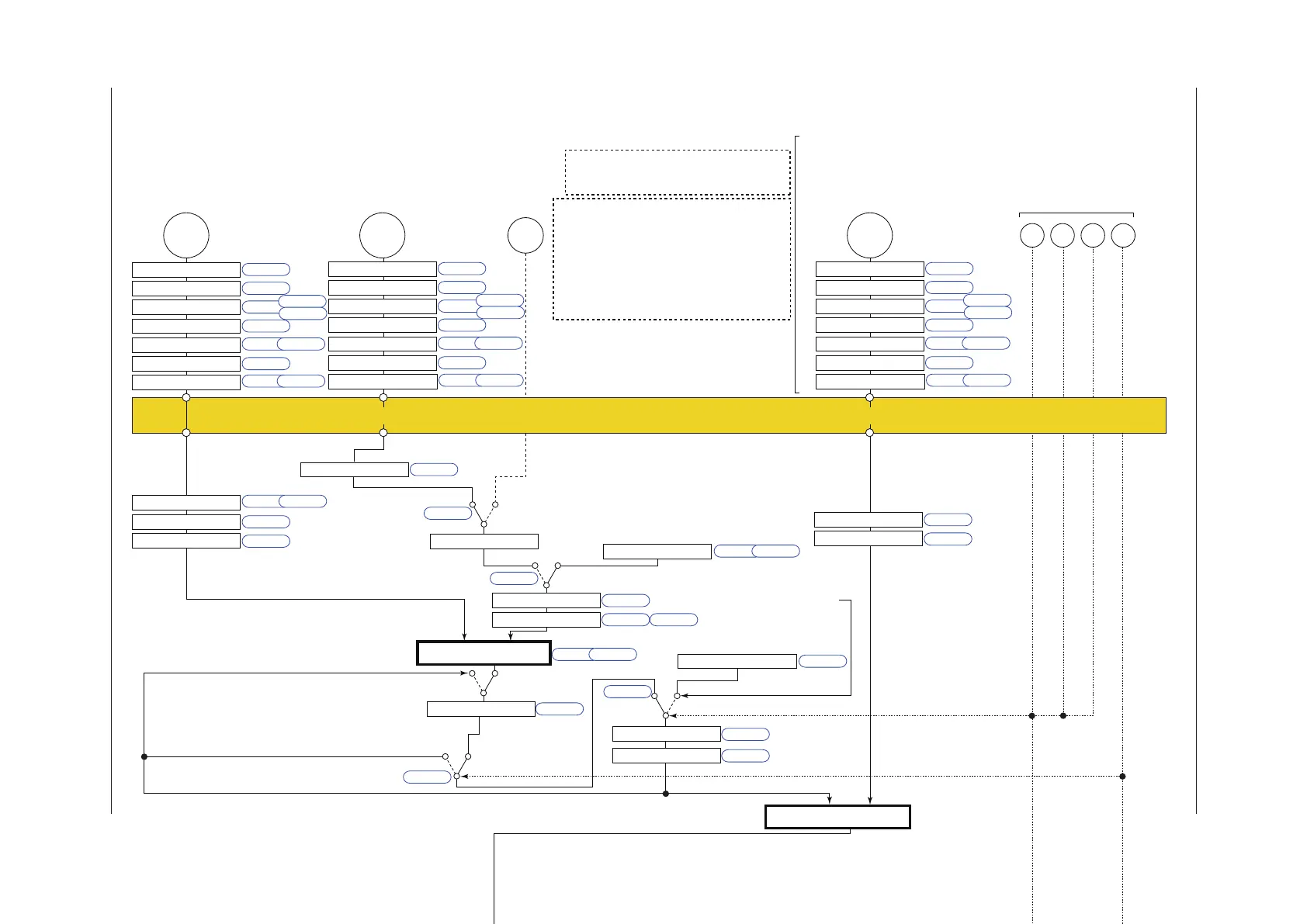

CascadeControlFunctionBlockDiagram
Target setpoints 1 to 8
*1
Output limiter
Manual operation
Manual preset output
Input error preset output
Preset output
When Loop-2 sensor burnout occurs
Normal
MAN
RUNSTOP
SP ramp rate
SP limiter
DI2 DI3DI1 DI16PV RSP
Input type
Input unit
Input range/scale
Analog input bias
Square root extraction
Analog input filter
Input type
Input unit
Input range/scale
Analog input bias
Square root extraction
Analog input filter
10-seg. linearizer approx./bias
PV input bias
PV input filter
Ratio bias computation
A.BS
A.FL
BS
FL
PMD An, Bn
10-seg. linearizer approx./bias
PMD An, Bn
10-seg. linearizer approx./bias
PV input bias
PV input filter
BS
FL
PMD An, Bn
CNT ALG
UPR, DNR TMU
SPNO
SPNO
SP
R/L
RMS
SPH, SPL
UPR, DNR
C/A/M
SPH, SPL
RFL
A.SR A.LC
UNIT
IN
RH, RL
SDP
SH, SL
A.BS
A.FL
A.SR A.LC
UNIT
IN
RH, RL
SDP
SH, SL
AIN2
PMD An, Bn
A.BS
A.FL
A.SR A.LC
UNIT
IN
RH, RL
SDP
SH, SL
EPO
OH, OL
OH, OL OLMT
PO
C/A/M
S/R
OT
MPON
Tracking signal (Tracking when not in Cascade)
AUTO, MAN
AUTO, MAN
CAS
CAS
CAS, AUTO
A/M
Loop-2 target setpoints
Output limiter
OH, OL
SP ramp rate
SP limiter
RUNSTOP
S/R
Remote input filter
Output limiter
Equipped as standard Equipped as standard
Heater break alarm
HAL2HAL1
Heater break
alarm 1
Heater break
alarm 2
Current or
voltage pulse
Relay
LPS
Current
OUTOUT RET AL3AL2AL1
PMD
OU.H OU.L
An, Bn
Split computation
10-seg. linearizer approx./bias
RET.H RET.L
PMD An, Bn
Split computation
10-seg. linearizer approx./bias
OUT retransmission output
O1RS
RET retransmission output
RTS
Alarm
Output terminal assignment
STOP (ON)/RUN (OFF) switch
(Current when retransmission output)
CommunicationLoop-1 PV input
Equipped as standard
* The LP2 lamp is lit while the Loop-2 parameter is displayed.
Loop-2 PV input Contact inputs
Cascade (OFF→ON)
Automatic (OFF→ON)
Manual (OFF→ON) STOP (ON)/RUN (OFF) switch
For the model with optional suffix code /DR:
Remote input with direct input (E1-terminal area)
can be used when
UT55A suffix code: Type 2 = 1, 2, 4, 5, or 7 and
with optional suffix code /DR;
UT52A suffix code: Type 2 = 1 or 2 and
with optional suffix code /DR.
However, DI16 is to be deleted.
Switch to AUTO when
Loop-1 PV input burnout
or A/D error occurs.
STOP (ON)/RUN (OFF) switch
*
*
Loop-2 control computation
Loop-1 control computation
COM
Aux. input
LOCALREMOTE
* After the control output terminal is specified by the parameter OT,
other current output terminals can be used as retransmission output.
24 V loop
power supply
Terminal Parameter Function
Analog signal Contact signal Front panel key
Legend
Alarm 1
(Loop-1 PV high limit)
Alarm 2
(Loop-1 PV low limit)
Alarm 3
(Loop-1 PV high limit)
PV display
SP display
Input ladder calculation program (signal goes to the control computation as is when without ladder program). For ladder program, see the LL50A Parameter Setting Software User’s Manual.
PV display
SP display
Output ladder calculation program (signal goes to the output as is when without ladder program). For ladder program, see the LL50A Parameter Setting Software User’s Manual.
Aux. analog (remote) input
Input type
Input unit
Input range/scale
Analog input bias
Square root extraction
Analog input filter
10-seg. linearizer approx./bias
An external analog signal can
be used for Loop-2 SP. Use
the ladder program of LL50A
Parameter Setting Software
to build the function.
*1: RS-485, Ethernet, PROFIBUS-DP,
DeviceNet, CC-Link
**
**
**
**
**
**
**
**
** **
**
Loop-2 parameters
Universal input (E1-terminal area) can be used
when UT55A/UT52A optional suffix code /U1.
However, DI16 does not exist.
(For Standard model)
Remote input can be used when UT55A suffix code: Type 2 = 7.
(For Detailed model)
Remote input can be used when UT55A optional suffix code /A2.
(For Standard model)
UT55A suffix
code: Type 2 = 1, 2, 4, 5, or 7; UT52A
suffix code: Type 2 = 1 or 2 is necessary.
(For Detailed model) UT55A/UT52A
optional suffix code /R1 or /RCH1 is
necessary.
(For Standard model) DI16 is equipped
when UT55A suffix code: Type 2 = 1, 2, 4, 5,
or 7; UT52A suffix code: Type 2 = 1 or 2.
(For Detailed model) DI16 is equipped
when UT55A/UT52A optional suffix code
/R1 or /RCH1.
8.1SettingControlMode(CTLM)
