4.1 OverviewofDisplaySwitchandOperationKeys

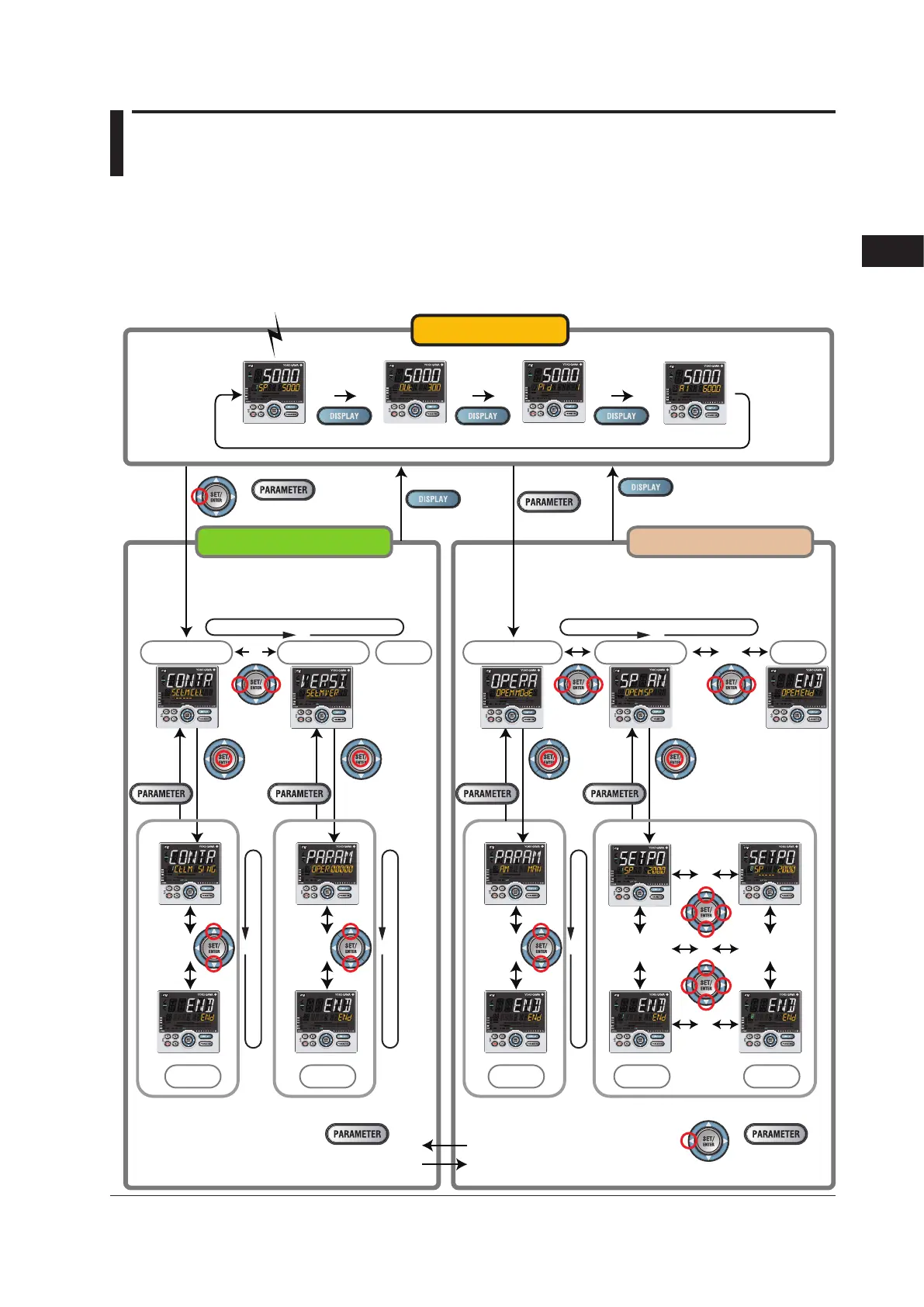

The following shows the transition of Operation Display, Operation Parameter Setting
Display, and Setup Parameter Setting Display.
The “Operation Parameter Setting Display” has the parameters for setting the functions
necessary for the operation.
The “Setup Parameter Setting Display” has the parameters for setting the basic functions
of the controller.
MODE Menu DisplayVER Menu Display
SP Display
Power ON
OUT Display
Operation Display corresponding to the function is displayed.
Operation Display: See Chapter 6.
*1* Return to the Operation Display from
the Parameter Setting Display
The Menu Display and Parameter Setting Display
are changed in a circular pattern.
The Menu Display and Parameter Setting Display
are changed in a circular pattern.
Same as *1.
Operation Display
Operation Parameter Setting Display Setup Parameter Setting Display
Press the keys
for 3 seconds.
Press the key
for 3 seconds.
+
CTL Menu Display SP Menu Display
END DisplayEND Display
END Display END Display END Display END DisplayEND Display
press the keys
for 3 seconds
+
In the Setup Parameter Setting Display, In the Operation Parameter Setting Display,
to move to the Operation Parameter Setting Display. to move to the Setup Parameter Setting Display.
press the keys
for 3 seconds
Parameters for setting the basic
functions of the controller
Parameters for setting the functions
necessary for the operation
• • • • • • • •
• • • • • •
• • • • • • • • • • • •
• •
• •
• •
Chapter4BasicOperation
