17-25

IM 05P01C31-01EN

Installation and Wiring

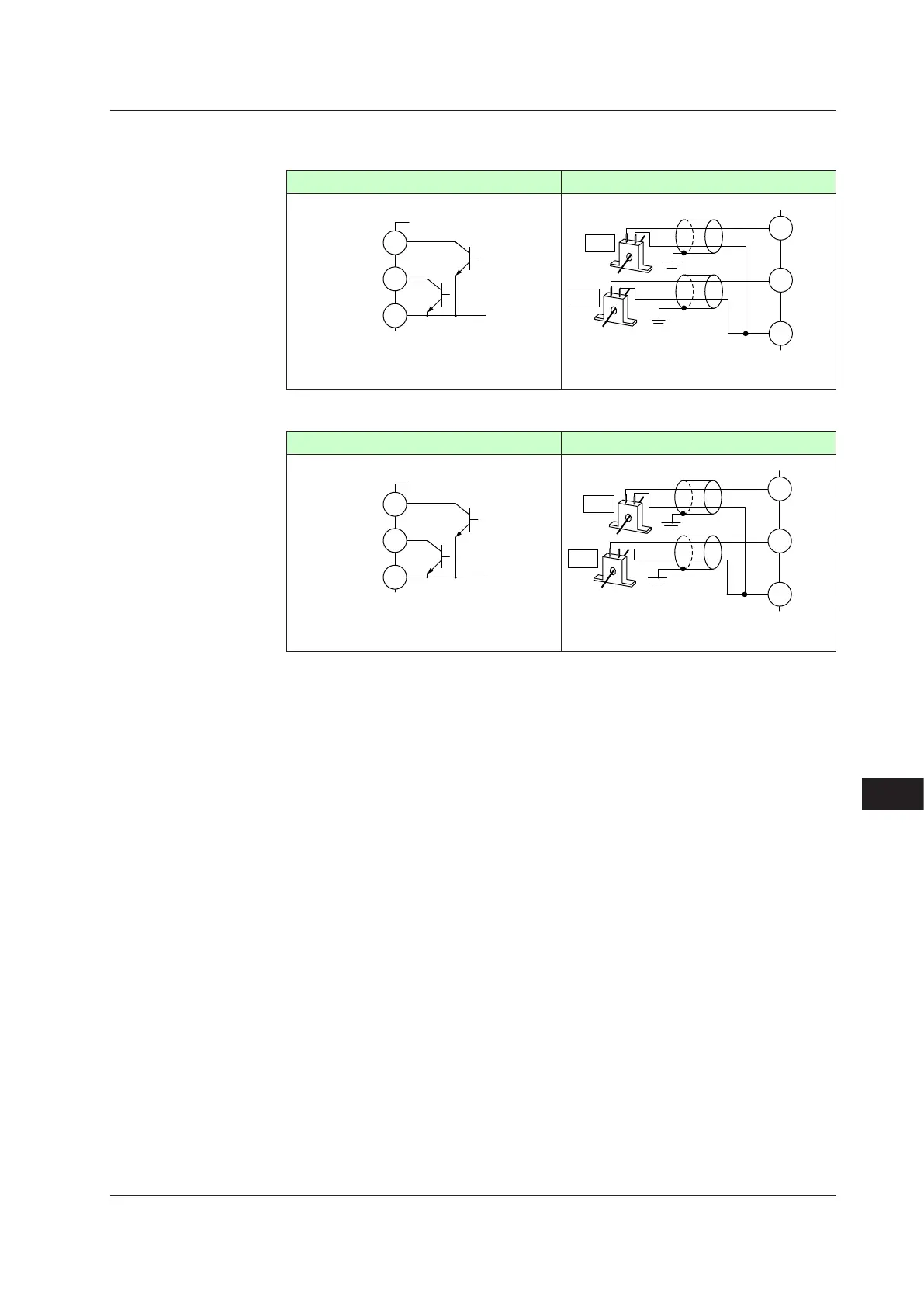

17.4.11 HeaterBreakAlarmWiring

Heater break alarm can be used for the UT55A with the optional suffix code /HA.

Heaterbreakalarm Heaterbreakdetection

Contact raging: 24 V DC, 50 mA

HAL1

HAL2

COM

507

508

509

HBA

Class D grounding

(grounding resistance

of 100 Ω or less)

Shield

CT1

CT2

COM

510

511

512

HBA

Heater break alarm can be used for the UT52A with the optional suffix code /HA.

Heaterbreakalarm Heaterbreakdetection

Contact raging: 24 V DC, 50 mA

HAL1

HAL2

COM

307

308

309

HBA

Class D grounding

(grounding resistance

of 100 Ω or less)

Shield

CT1

CT2

COM

310

311

312

HBA
