13.1.7 MaskingLeastSignificantDigitofPVDisplay
Description
WithandwithoutleastsignificantdigitofthePVintheOperationDisplaycanbeset.
When without least significant digit is set, the value of the least significant digit is
truncated and not displayed.
The internal value is not changed depending on whether with or without least significant
digit
(thevalue
isfordisplayonly).ThisparameterdoesnotfunctionforthePVwithout
decimal point.

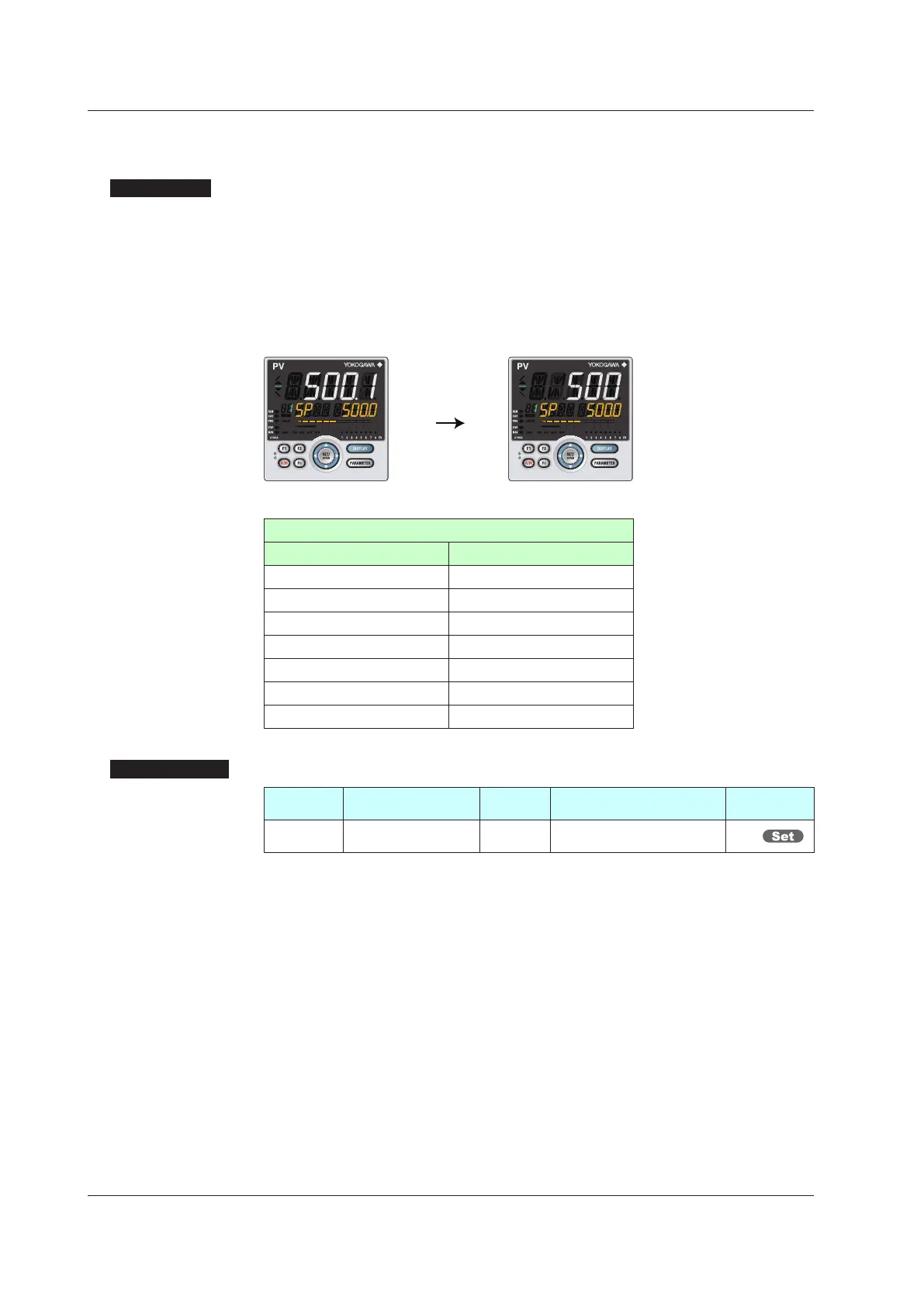

Least significant digit
is displayed.
Least significant digit
is not displayed.
The following shows the example of with and without least significant digit
PVdisplay
Withleastsignicantdigit Withoutleastsignicantdigit
1.4999 1.499
1.5000 1.500
1.9999 1.999
2.0000 2.000
3000.0 3000
3000.9 3000
3001.0 3001
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
MLSD
Leastsignicantdigital
maskofPV
display
STD
OFF:Withleastsignicantdigit
ON:Withoutleastsignicantdigit
DISP
