6.1.3 OperationDisplayTransitionsinCascadeControl
► Display/non-display of Operation Display: 13.3.5 Setting Display/Non-Display of Operation Display
► Registration of SELECT Display: 13.1.3 Registering SELECT Display (Up to 5 Displays)
Standard Type

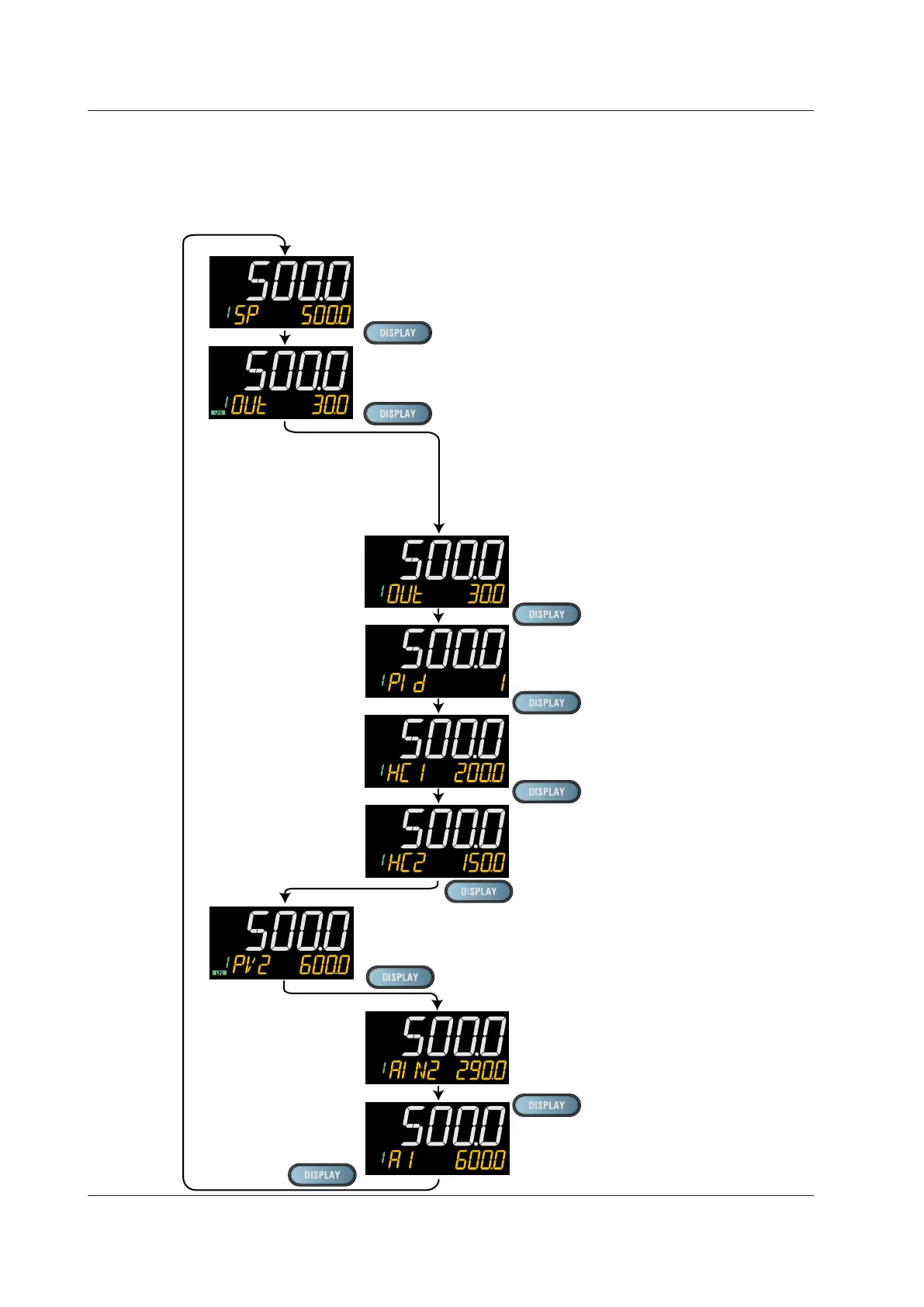

When the operation mode is Cascade:
Program Pattern Number Display (Display only)
Parameter RMS = PROG
PV display: Loop-1 PV
Loop-1 SP Display (SP can be changed.)
PV display: Loop-1 PV
Loop-2 OUT Display (display only)
PV display: Loop-1 PV
LP2 lamp is lit.
Loop-1 PID Number Display (display only)
(Factory default: non-display)
PV display: Loop-1 PV
Heater Break Alarm-1 Current Display (display only)
(Only for Heater break alarm option)
PV display: Loop-1 PV
Heater Break Alarm-2 Current Display (display only)
(Only for Heater break alarm option)
PV display: Loop-1 PV
SELECT Displays 1 to 5
(Displayed only when SELECT Display is registered.)
(The figure on the left is the example of
the parameter A1 (alarm-1 setpoint).)
PV display: Loop-1 PV
Loop-1 OUT Display (display only)
(Factory default: non-display)
PV display: Loop-1 PV
Setpoint display: Loop-1 OUT
Loop-1/Loop-2 PV Display (display only)
PV display: Loop-1 PV
Setpoint display: Loop-2 PV
LP2 lamp is lit.
Analog Input Displays (display only)
(Factory default: non-display)
PV: PV analog input,
RSP: RSP analog input (E1-terminal area),
AIN2: AIN2 analog input (E2-terminal area),
AIN4: AIN4 analog input (E4-terminal area)
(Only for each aux. analog input)
