YOKOGAWA UT55A User Manual

10-28
IM 05P01C31-01EN

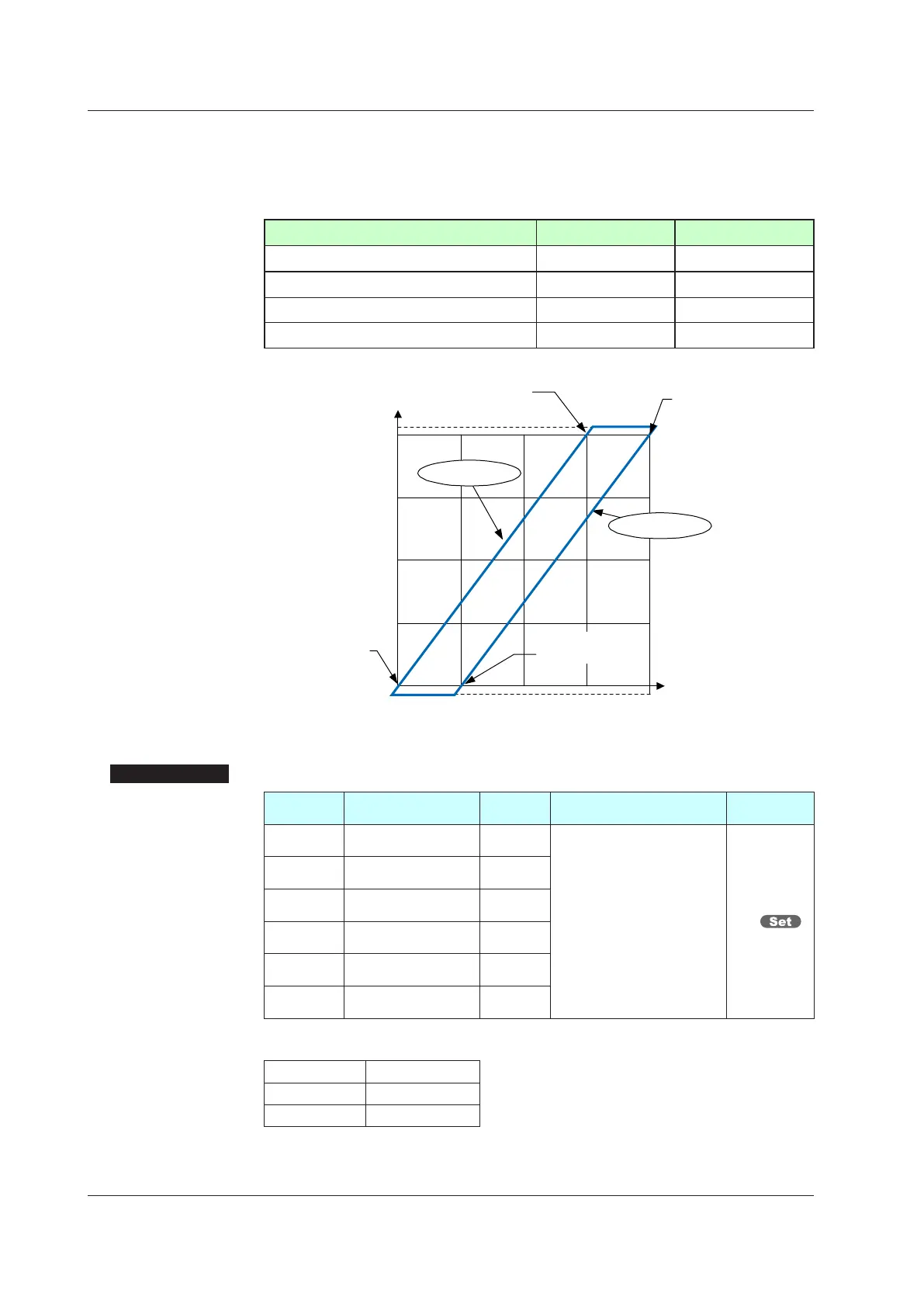

Parallel-modeCharacteristics
The following explains an example of letting OUT terminal and RET terminal present the
Parallel-mode characteristics of split computations.
SettingExample
OUT terminal RET terminal
Control output type/Retransmission output type OT=00.02
(current) RTS=OUT1
Currentoutput100%segmentalpoint OU.H=100.0% RET.H=75.0%
Currentoutput0%
segmentalpoint OU.L=25.0% RET.L=0.0%
Current output range OU.A=4-20 RET.A=4-20
0 5025 75 100
25
50
75
100
%
%
20
mA
4 0
10
5
15
Output before split computation
Output after computation
OUT terminal
100% segmental point
RET terminal
100% segmental point
RET terminal
0% segmental point
OUT terminal
0% segmental point
OUT terminal
RET terminal
Setting Details
Parameter
symbol
Name
Display
level
Setting range Menusymbol
OU.H
100%segmentalpoint
of OUT current output
PRO
-100.0to200.0% OUT
OU.L
0%segmentalpointof
OUT current output
PRO
OU2.H
100%segmentalpoint
of OUT2 current output
PRO
OU2.L
0%segmentalpointof
OUT2 current output
PRO
RET.H
100%segmentalpoint
of RET current output
PRO
RET.L
0%segmentalpointof
RET current output
PRO
ParametersandCorrespondingTerminals
OU.H, OU.L OUT terminal
OU2.H, OU2.L OUT2 terminal
RET.H, RET.L RET terminal
10.15SettisngSplitComputationOutputFunction
