AlarmFunctions
11

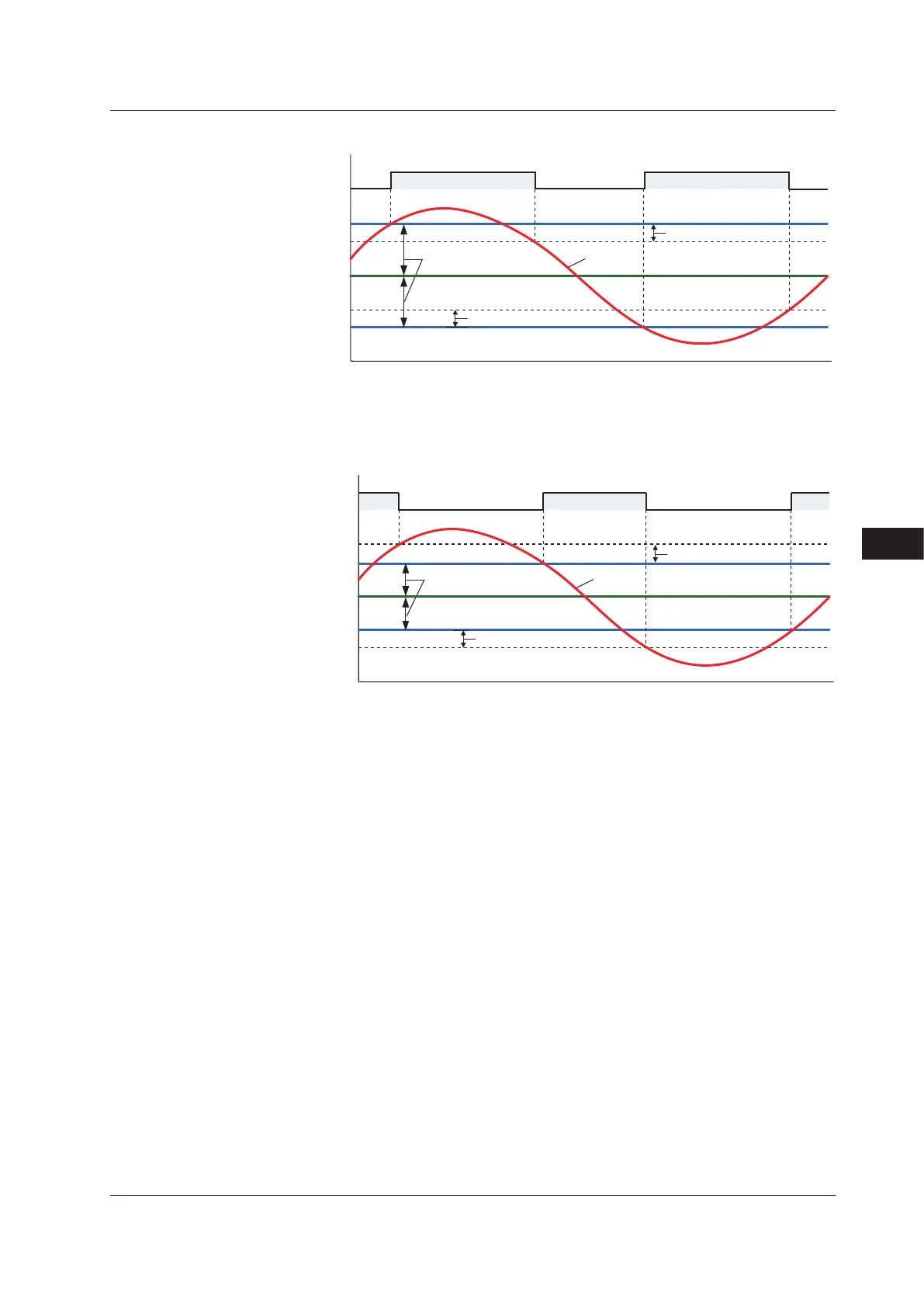

TargetSPDeviationHighandLowLimitsAlarm
PV
Alarm hysteresis
Alarm hysteresis
Deviation high and
low limits alarm setpoint
Time
ON OFF
OFF
ON
OFF
Deviation
high and low limits
alarm output
Target SP
(SP)
Contact type in the figure above: Energized when an event occurs (factory default).
TargetSPDeviationwithinHighandLowLimitsAlarm
PV
Alarm hysteresis
Alarm hysteresis
Deviation within high
and low limits alarm setpoint
Time
ON ON
OFF OFFON
Deviation within
high and low limits
alarm output
Target SP
(SP)
Contact type in the figure above: Energized when an event occurs (factory default).
11.1SettingAlarmType
