YOKOGAWA UT55A User Manual

17-15
IM 05P01C31-01EN
Installation and Wiring
17

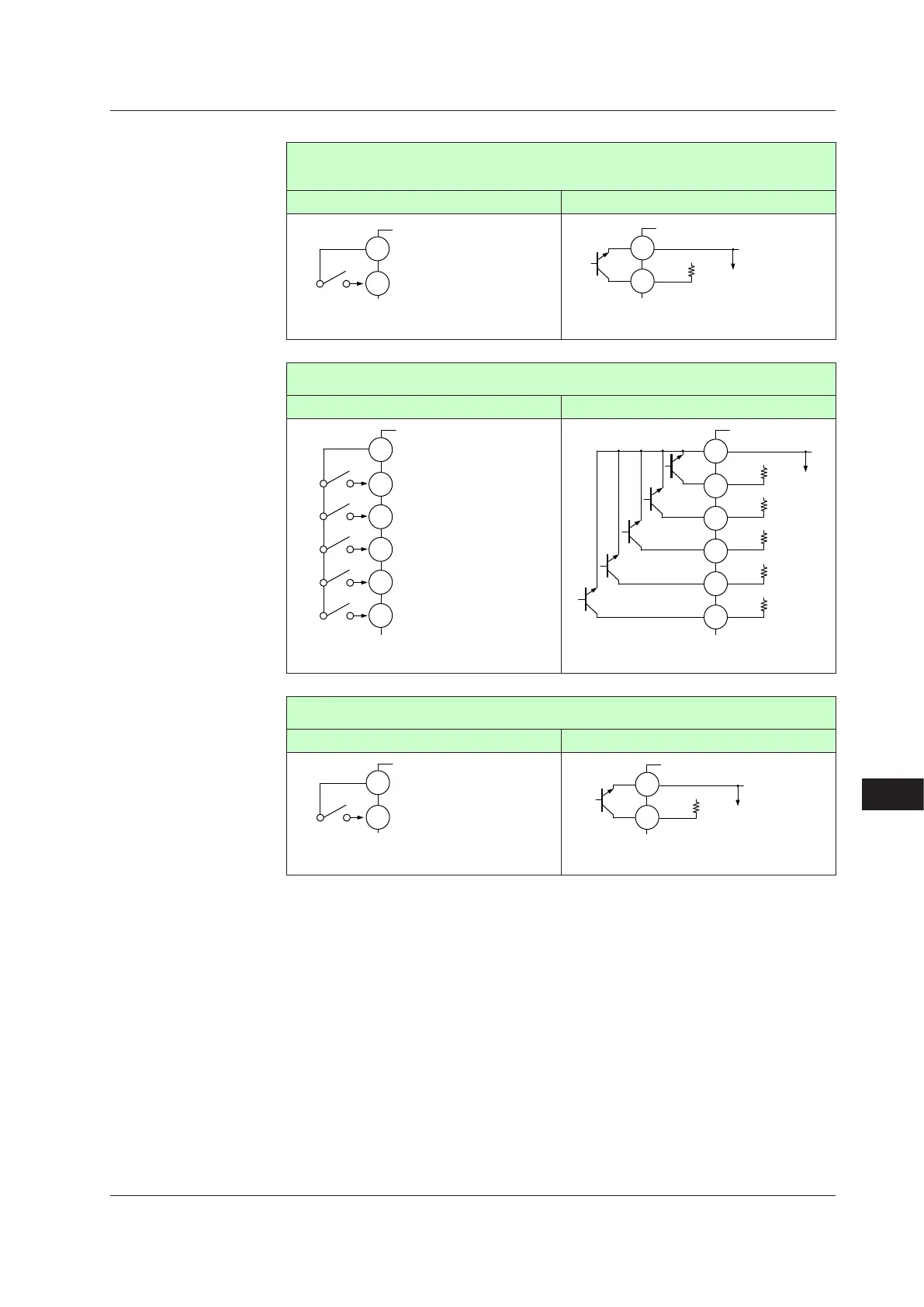

AdditionalContactInputAccordingtotheUT55ASuffixCodes
(ForStandardmodel)UT55Asufxcodes:Type2=1,2,4,5or7;however,withoutoptional
sufxcode/DR
(ForDetailedmodel)UT55Aoptionalsufxcodes:/R1
Non-voltagecontact Transistor contact
DI16
COM
Contact rating: 12 V DC, 10 mA or more
303
304
RSP
DI16
COM
303
304
Contact rating: 12 V DC, 10 mA or more
RSP
+5 V
+
–
(ForStandardmodel)UT55Asufxcode:Type2=3
(ForDetailedmodel)UT55Aoptionalsufxcode:/X1
Non-voltagecontact Transistor contact
DI11
DI12
DI13
DI14
DI15
COM
Contact rating: 12 V DC, 10 mA or more
301
302
303
304
305
306
DI
DI11
DI12
COM
DI13
DI14
DI15
301
302
303
304
305
306
DI
+5 V
+5 V
+5 V
+5 V
+5 V
Contact rating: 12 V DC, 10 mA or more
+
+
+
+
+
–
(ForStandardmodel)UT55Asufxcode:Type2=7
(ForDetailedmodel)UT55Aoptionalsufxcode:/A2
Non-voltagecontact Transistor contact
DI26
COM
Contact rating: 12 V DC, 10 mA or more
309
310
AIN2
DI26
COM
309
310
AIN2
+5 V
Contact rating: 12 V DC, 10 mA or more
+
–
17.4 Wiring
