Installation and Wiring
17

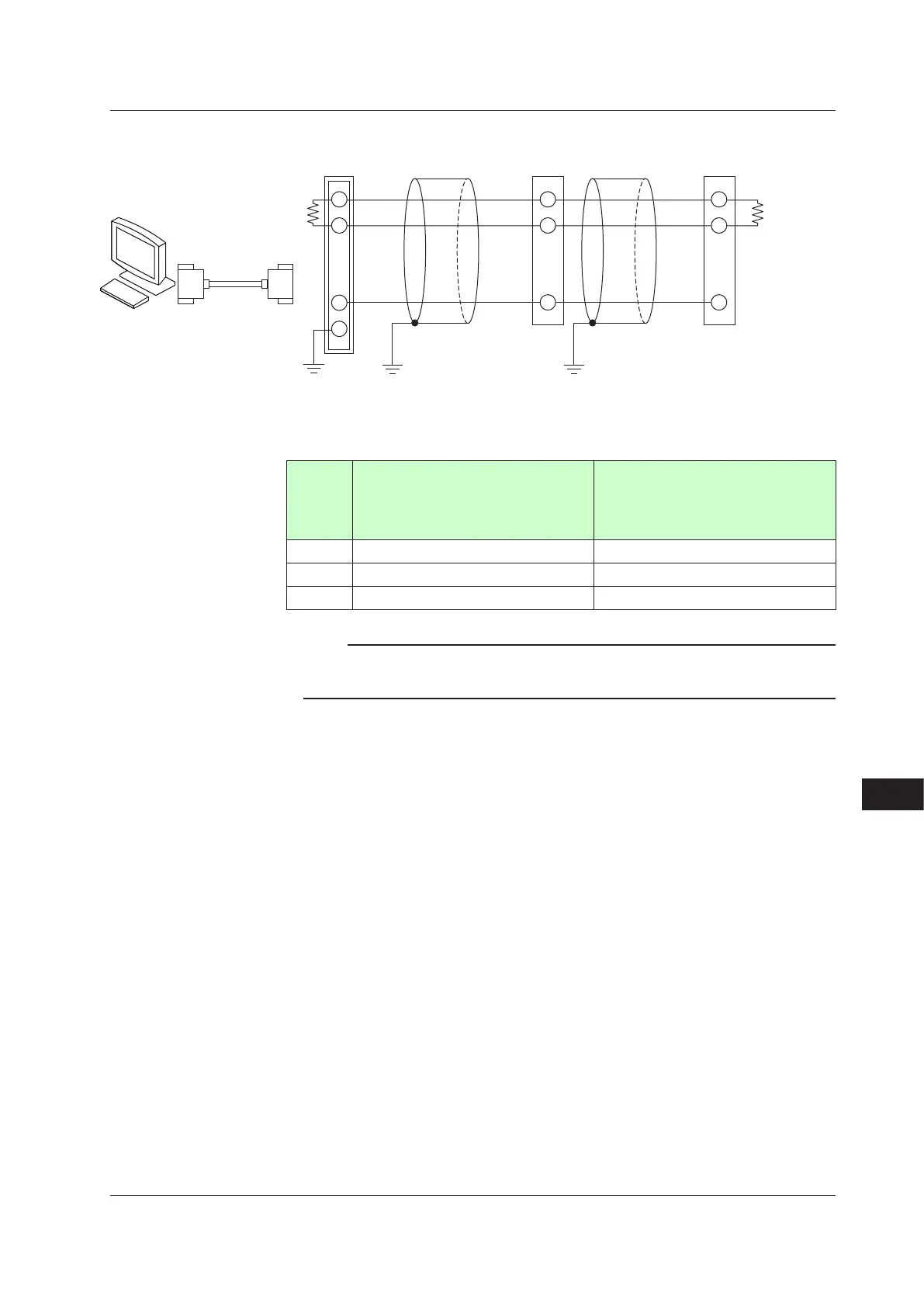

2-wire Wiring
SG
ML2-
□
B (+)
A (–)
RSB (+)
RSA(–)
SG
RSB (+)
RSA(–)
SG
RS-232C
Straight cable
PC
4
3
5
6
UT UT
Class D grounding
(grounding resistance
of 100 Ω or less)
(External)
Terminating resistor
220 Ω 1/4 W
(External)
Terminating
resistor
220 Ω 1/4 W
Communication
cable
Class D grounding
(grounding resistance
of 100 Ω or less)
Communication
cable
Class D grounding
(grounding resistance
of 100 Ω or less)
UT55A/UT52A
Terminal
symbol
above
(For Standard model) UT55A Sufx
code: Type 2=1 or 2, and with optional
sufx code /LP
(For Detailed model) UT55A Optional
sufx code: /AC4 or /LC4
(For Standard model) UT52A Sufx
code: Type 2=1
(For Detailed model) UT52A Optional
sufx code: /RCH1 or /LCH1
RSB(+) 501 301
RSA(–) 502 302
SG 503 303
Note
ML2-xindicatesaconverterofYOKOGAWA.Otherthanthis,RS232C/RS485converters
canalsobeused.Ifanotherconverteristobeused,checktheelectricalspecificationsofthe
converterbeforeusingit.
17.4 Wiring
