1 - 8 MP7000 Scanner Scale Integrator Guide

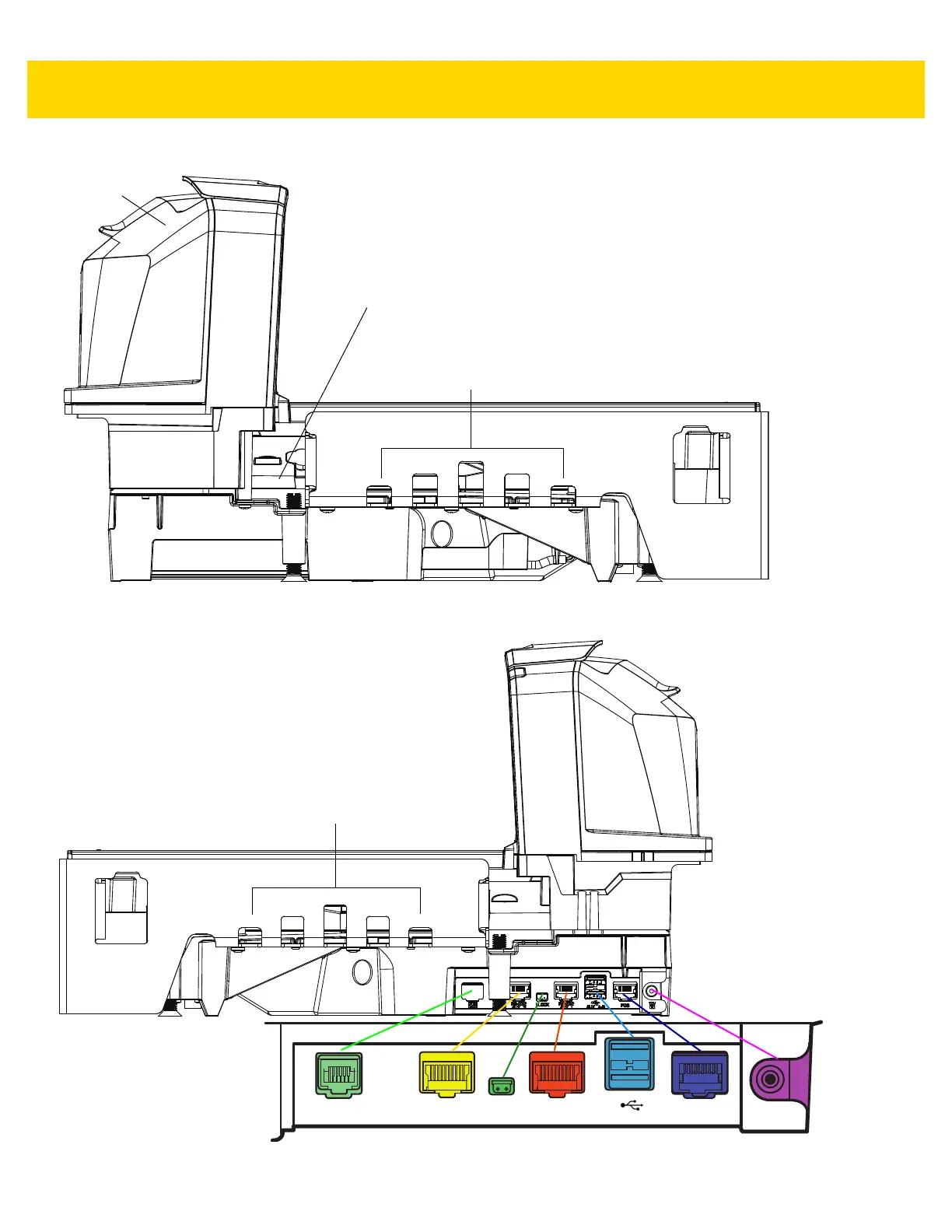

Figure 1-2 Left Side View
Figure 1-3 Right Side View/Connector Ports
EAS Cable Channel
(also see
page 3-21 for
Sensormatic coil routing)
Tower
Cover
Drainage/Ventilation Holes
1
Checkpoint Interlock Port
2
Auxiliary USB Ports
Drainage/Ventilation Holes
12V DC
POS
AUX A-B
2
RS-232
AUX 1
I-LOCK
1
RS-232
AUX 2
0.0
Scale Display
