GDP-32
II
INSTRUCTION MANUAL
January 2003 Section 8, Page 10

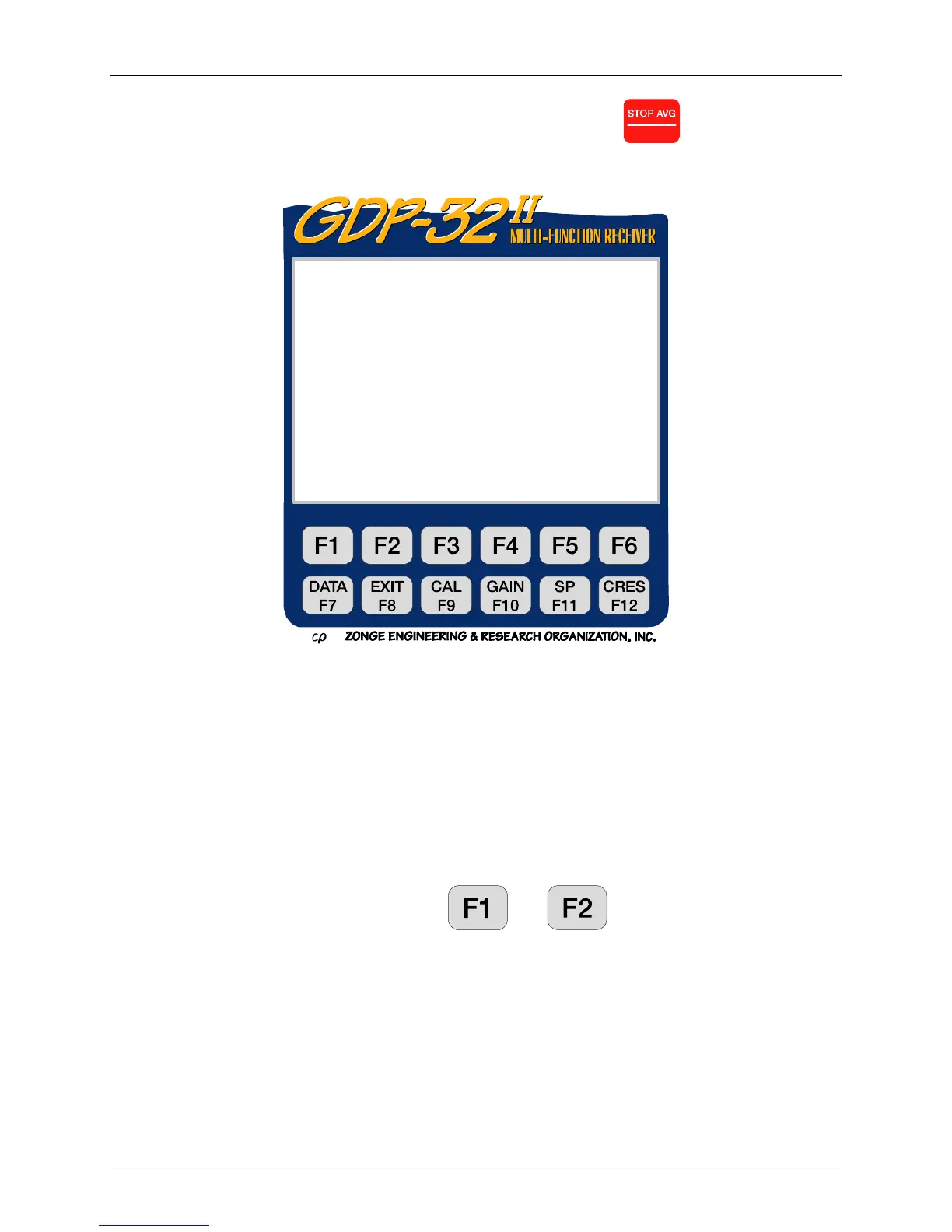

After the selected number of cycles have been acquired (or
Escape
is pressed), the final
display appears:
Screen Explanation
MAG - Magnitude of the received signal in volts, with magnitude calibration (located in
the Frequency Domain cache) applied. The scaling factor "m" after the number
means "millivolts".
φ
φφ
φ - Phase in milliradians, with phase calibration (located in the Frequency Domain
Calibration Cache) removed.
ρ
ρρ
ρ
- Apparent resistivity in ohm-meters.
NOTE: PREV and NEXT (above
and keys) are displayed only when
more than eight channels are installed in the receiver.
0207 RPIP0613 11.7 08 Jan 18 13:50:16
Survey D-D Stacks 1/ 1
Tx 1 Rx 3 N OUT
.125 Hz 4/ 4 Cycles Tx Curr 1
CH N MAG
φ
rho GGGA SEM SP
1 ON 1 1.2737 0.1 1006 000O 0.01 -7.14
2 ON 2 1.2736 0.1 7542 000O 0.00 -3.85
3 OFF
4 OFF
CONTINUE to save, ESC to discard
