160 Program features
WARNING! The connection of motor temperature sensor requires double or
reinforced insulation between motor live parts and the sensor because the
thermistor input on the JCU control unit is not insulated according to
IEC 60664.
If the assembly does not fulfill the requirement,
- protect the I/O board terminals against contact and make sure that it is not
connected to any other equipments
or
- isolate the temperature sensor from the I/O terminals.

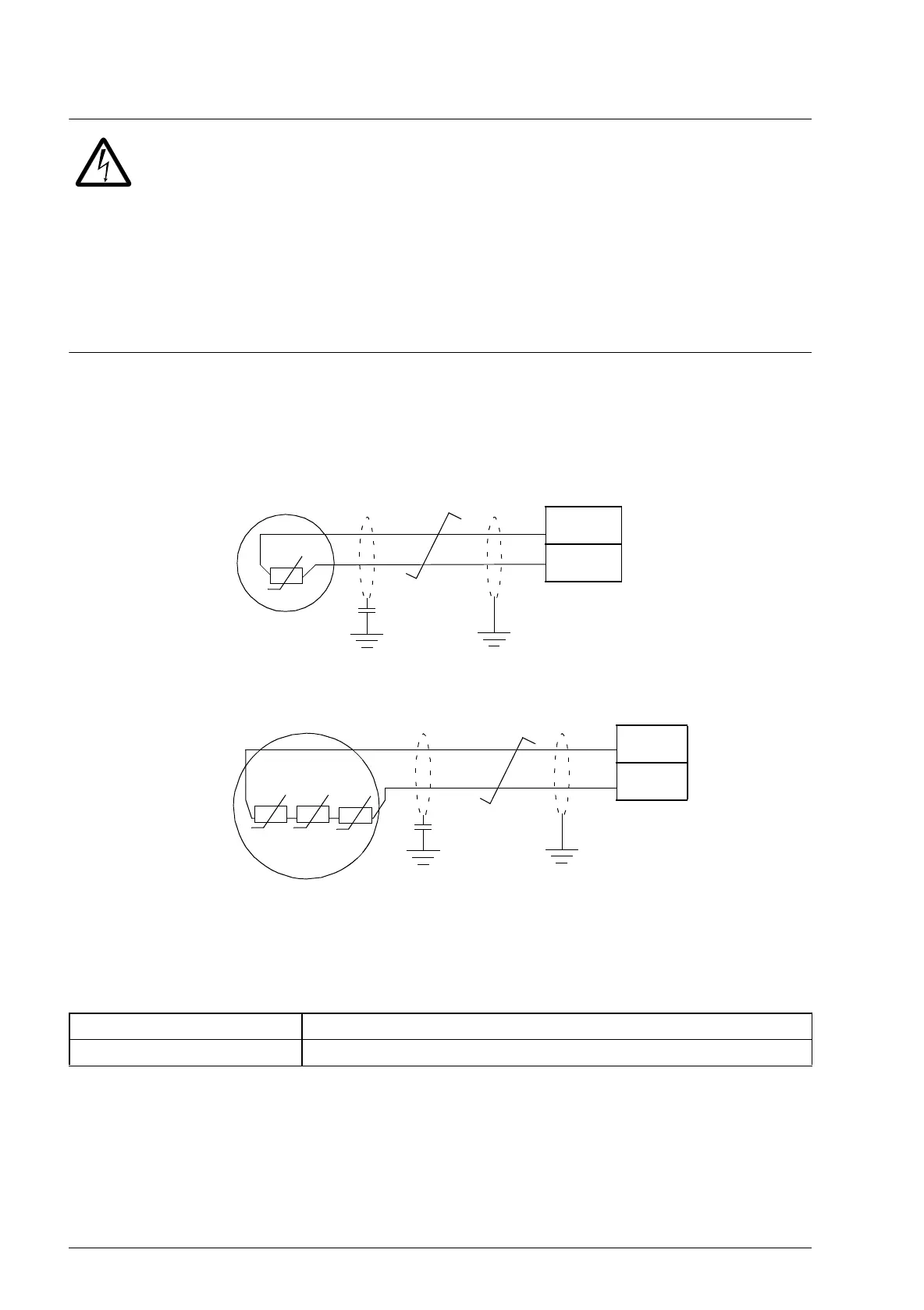

The figure below shows a motor temperature measurement when thermistor input TH
is used.
For encoder interface module FEN-xx connection, see the User’s manual of the
appropriate encoder interface module.
Settings
Parameters Additional information
46 FAULT FUNCTIONS Settings for thermal protection of the motor.
Motor
T
JCU Control Unit
TH
AGND
10 nF
One PTC or KTY84 sensor
Motor
T
JCU Control Unit
TH
AGND
TT
Three PTC sensors
10 nF
