Accessories
AEROSET
®
Customer Training Guide 1-25
94858-103 — July 2003
End-of-Run Sample Carrier
The End-of-Run Sample Carrier is a blue carrier labeled with the number
zero (0). It is placed in the last position of a run on the FastTrack™
Sampler. When the End-of-Run Carrier is identified, the FastTrack
Sampler stops sampling. If Auto Return is defined, the Analyzer then
returns the carriers to the starting position and begins sampling reruns.
Samples must not be loaded in this carrier.
Cup/Tube Adapters
The Cup/Tube Adapters are used in the Sample Carriers, Sample
Carousel, and Reserved STAT Position when 13 mm diameter tubes or
sample cups are loaded. Sample bar code labels must be positioned
toward the opening of the adapter.

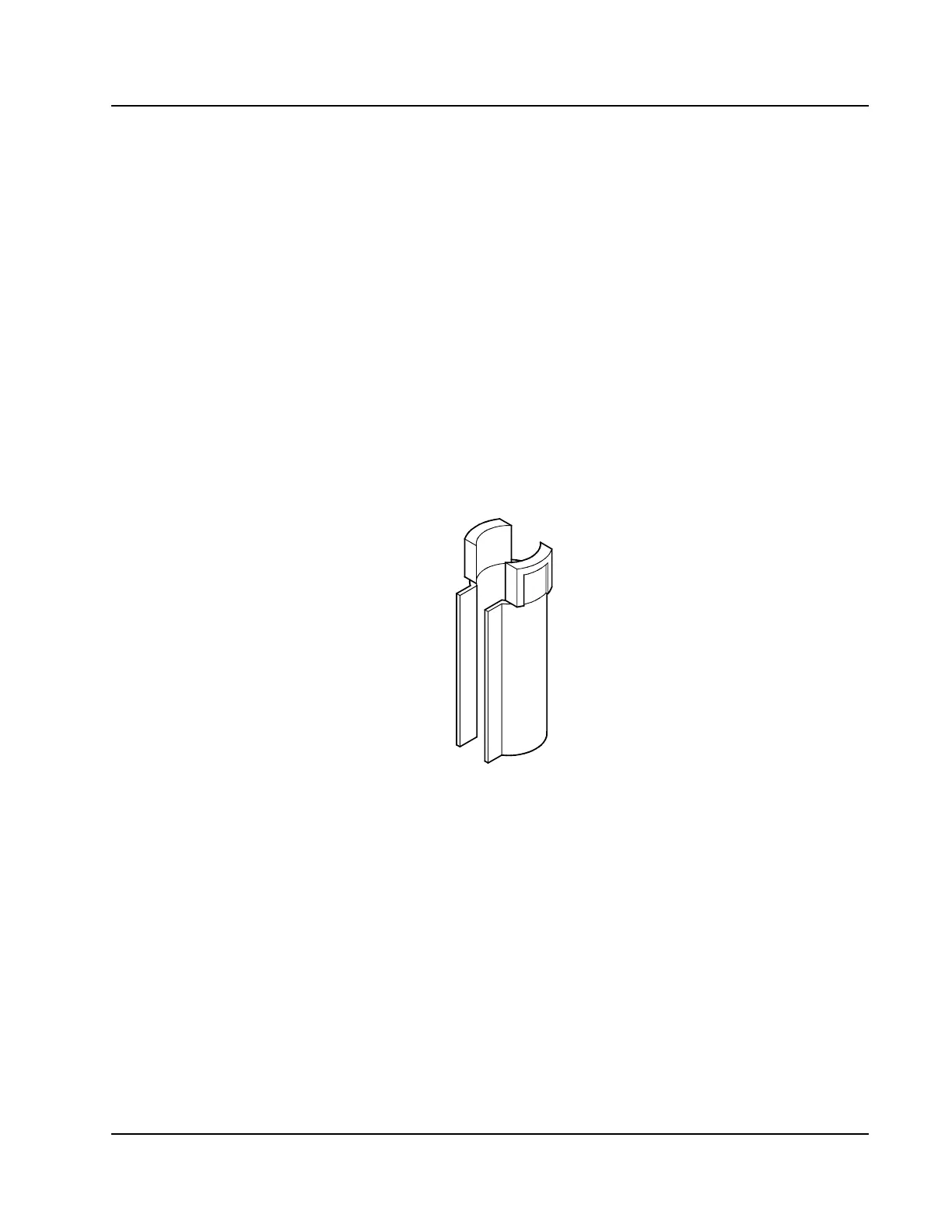

Figure 1.17: Cup/Tube Adapter
125629
