MODULE 1: SYSTEM TOUR
1-24 AEROSET
®
Customer Training Guide
94858-103 — July 2003
Accessories
Sample Carriers
The Sample Carriers are used to hold tubes and cups for use on the
FastTrack™ Sampler. The carriers have bar code labels for
identification on the System. The System comes with two sets of Sample
Carriers labeled 1 - 40. Higher number labels are available. Each carrier
has five positions designed to hold the following types of sample
containers:
• 16 x 100 mm (10 mL) tubes
• 16 x 75 mm (7 mL) tubes
• 13 x 100 mm (7 mL) tubes, with Cup/Tube Adapters
• 13 x 75 mm (5 mL) tubes, with Cup/Tube Adapters
• AEROSET sample cups, with Cup/Tube Adapters
The tubes can be labeled with bar codes for positive identification.
Although sample cups cannot be labeled with bar codes, the cups can be
placed in a bar code labeled tube for sampling and identification.

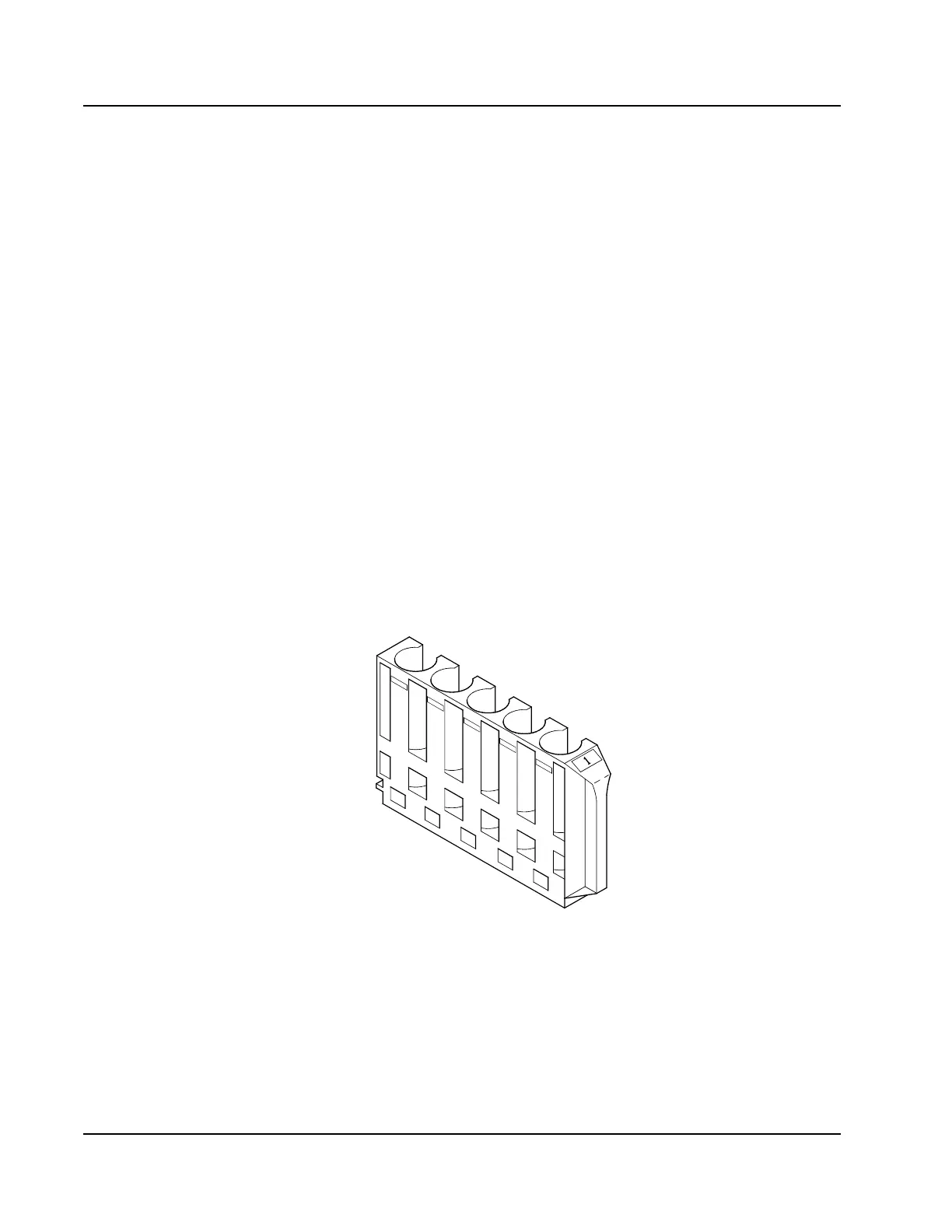

Figure 1.16: Sample Carrier
125605
