How to Use Output Triggering
You can configure the output trigger connector to output a TTL signal
at the frequency of the internal modulation of a Agilent 8163A/B
Series Laser Source module.
To set your module’s Output Trigger Configuration:
1 See “How to Set the Trigger Configuration” on page 65 for how to
configure the trigger connectors.
2 Move to the Laser Source channel and press [Menu].
3 Move to <Output Trigger Mode>, by using the cursor key, and press
Enter. You will see the screen in Figure 62.
4 Move to one of the following, by using the cursor key:
– <Disabled>, the output trigger mode is disabled.
–<Modulation>, the output trigger connector outputs a TTL signal
at the frequency of the internal modulation. This signal is output
whether the laser is switched on or off.
5 Press Enter.

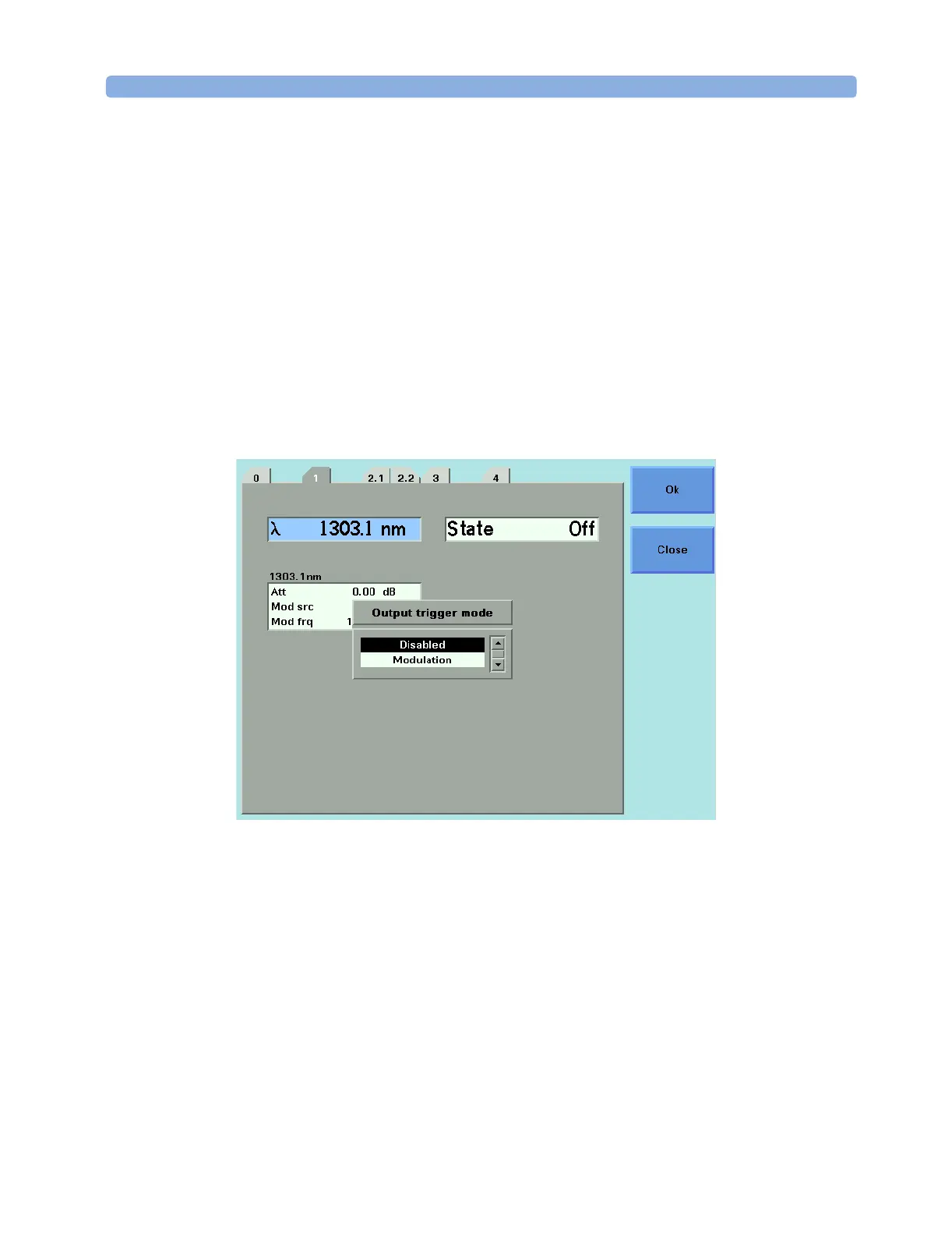

Figure 62 Output Trigger Mode
