Applications The Stability Application
242 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
15 Move to [AvgTime], press Enter, move to an averaging time period,
and press Enter.
16 Move to [Max], press Enter, enter an integer value between 1 and
4000, and press Enter.
Running a Stability Application
17 You can run the stability application by pressing [Measure]. The
Stability Measurement screen, as shown in Figure 157, appears. A
progress bar shows the proportion of the stability application that
has been completed.
18 There are two softkeys available from the Stability Measurement
screen.
– Press [Graph] to view a graph of the Measurement results as the
results are measured. Press [Close] to return to the Stability
Measurement screen. See “Working with Application Graphs” on
page 215 for information on zooming in and out.
– Press [Cancel] to return to the Stability Setup screen without
completing the stability application.
19 When the stability application completes, you hear a beep, an
hourglass appears momentarily. If you are viewing the Stability

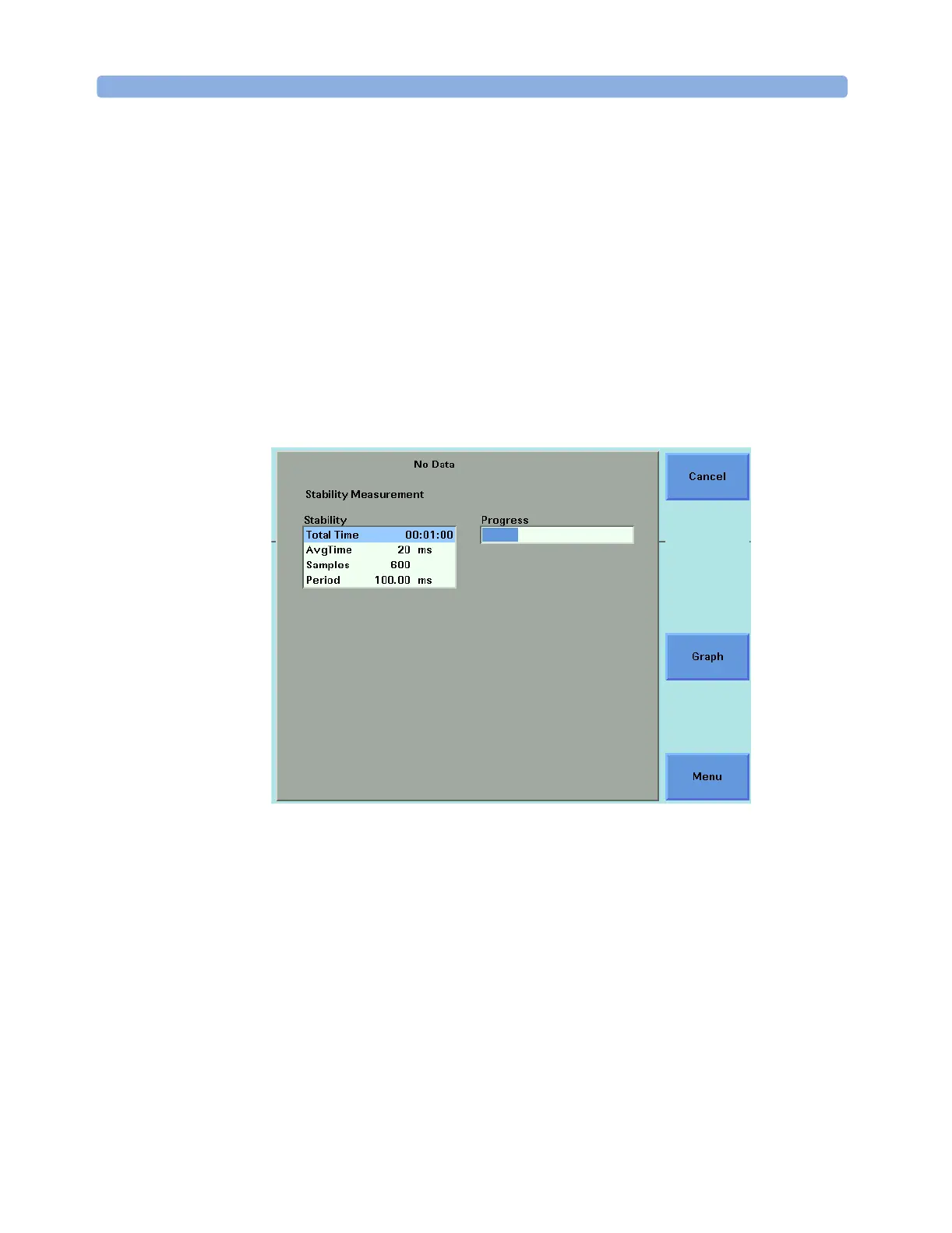

Figure 157 The Stability Measurement Screen - Measurement Running
