Applications Working with Application Graphs
218 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
• For the Agilent 8164A/B Lightwave Measureemnt System, the
legend numbers are disrectly beneath the graph. Each number is the
same colour as the curve it represents.
How to Change the Legend Label
To change the legend label:
NOTE You cannot edit a legend label while a measurement is running.
1 Press the [Menu] softkey and move to <Legend>. A list of the Power
Meter channels appears that is similar to Figure 136, where all the
Power Meters are listed numerically with regard to legend number.
All legend texts, if you have not previously edited the legend text,
are of the "PM x.y", where x represents the slot number and y
represents the channel number.
2 Move to the legend number you wish to edit using the cursor keys
and press Enter. The on-screen keyboard appears.
3 Use the on-screen keyboard to edit the legend label and press Enter.
The on-screen keyboard uses the following softkeys:

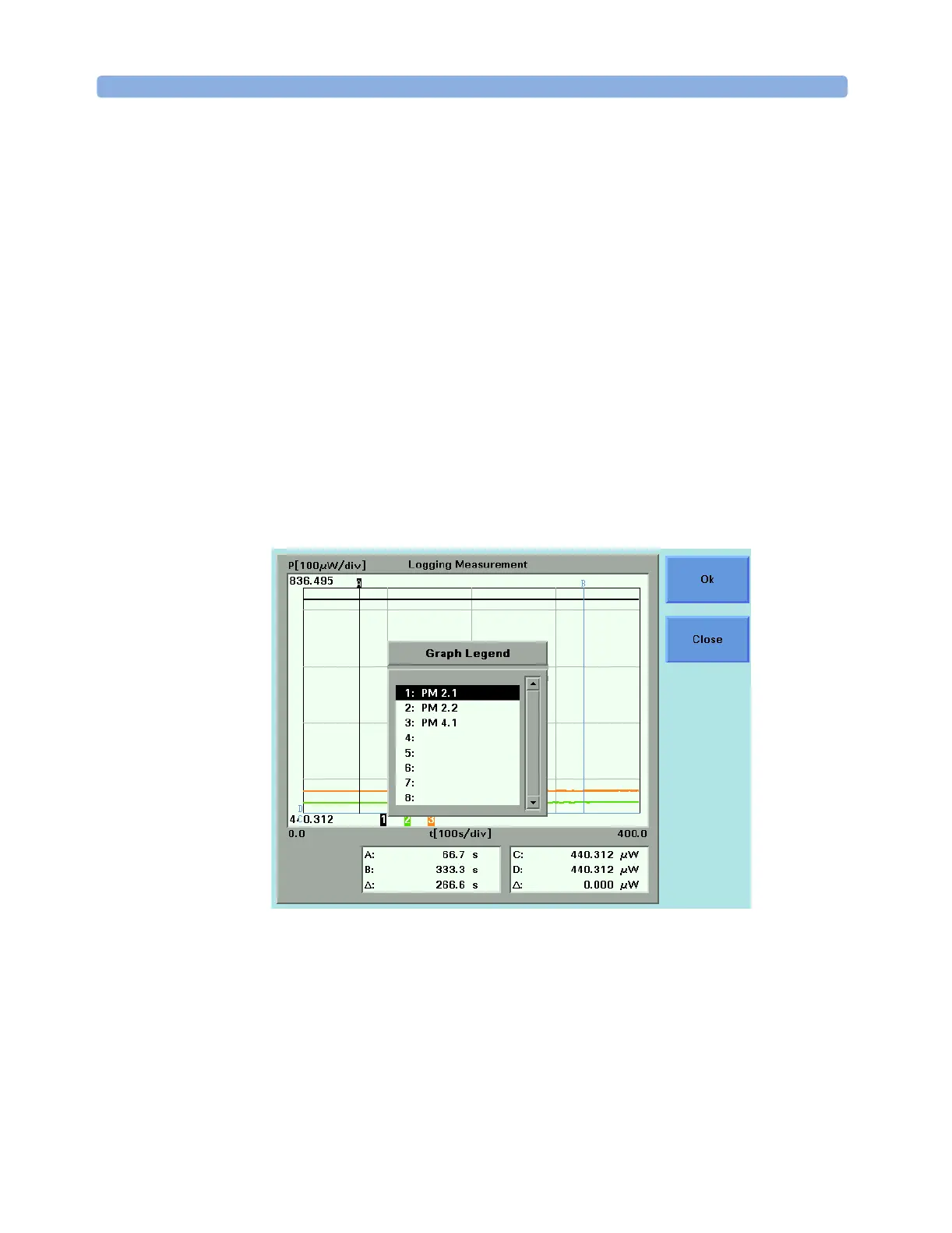

Figure 136 The Graph Legend Screen
