Installation and Maintenance Using Modules
288 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
Adding a Connector Interface
NOTE Before you attach a connector and fiber, you should clean them both.
See “Cleaning Instructions” on page 409.
To use a connector interface to connect a module to an optical-fiber
patchcord connector:
1 Select a connector interface to suit the optical connector that your
optical fiber is terminated with.
2 Connect the connector interface to the optical output connector of
the module, see Figure 193.
3 You can now attach the optical connector to the connector interface.
Protecting Empty Module Slots
Fitting a Blind Panel or Filler Module helps to:
• prevent dust pollution and
• optimize cooling by guiding the air flow.
Fitting Blind Panels for Front-Loadable Module Slots
To fit the a blind panel (part number - 08163-40199), perform the
following procedure.

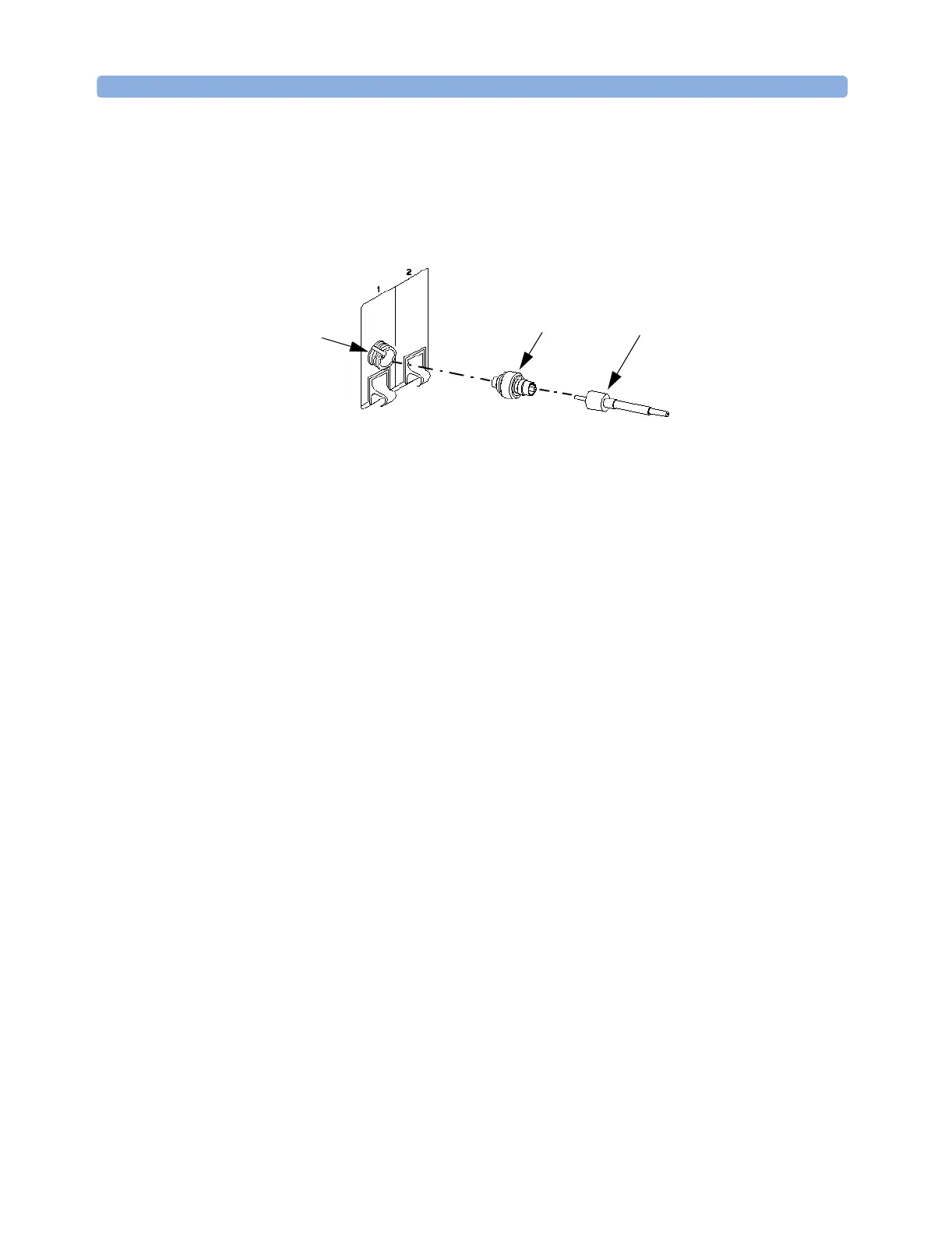

Figure 193 Adding a Connector Interface
Optical
Connector
Connector
Interface
Optical
Output
Connector
