Working with Application Graphs Applications
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 221
–<Samples & Line> - the curve will be displayed using both
symbols for each sample of the curve and a line connecting each
sample.
2 Move to your selected option and press Enter.
3 Press the [Close] softkey to return to the graph.
How to Read Curve Values
You can lock markers A or B to a curve in order to move between
individual samples. In this way, you can read the time/wavelength and
power values that relate to each sample and the difference between
these values for markers A and B.

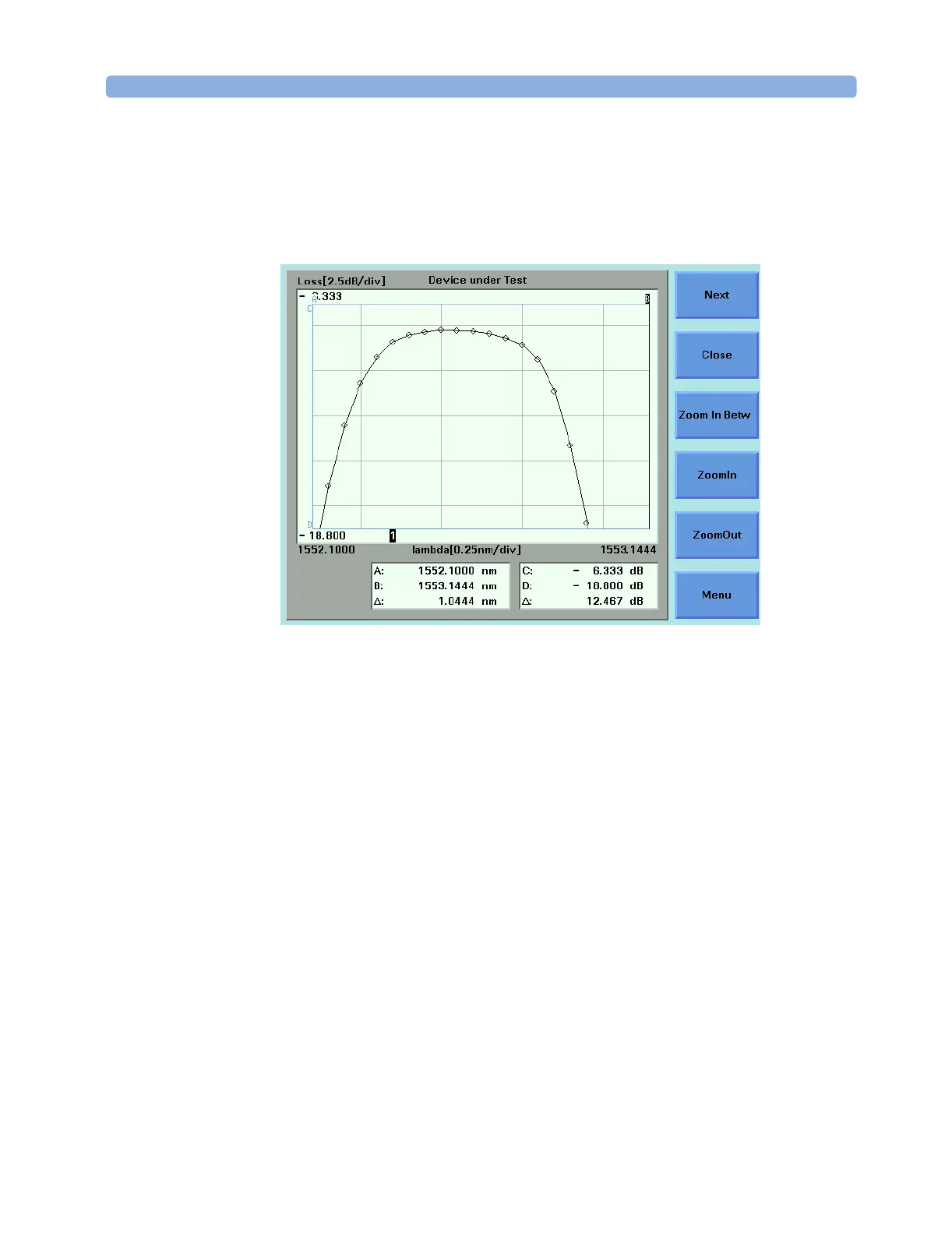

Figure 139 Samples Display - <Samples & Line>
