Additional Information Using the System Utilities
68 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
How to Set the GPIB Address
NOTE The default GPIB address is 20.
To set the GPIB address:
1 Press the Config hardkey.
2 Move to the <GPIB Address> menu option and press Enter. You see a
box displaying the current GPIB address.
3 Enter an integer value between 0 and 30 into this box and press
Enter. The address is set to this value.
NOTE Avoid using 21 as the GPIB address because this number is often the
controller’s default GPIB address.
How to Set the Speed of the Serial Interface
NOTE The default Baudrate of the serial interface is 38400 bps.
To set the Baudrate of the instrument’s serial interface:
1 Press the Config hardkey.

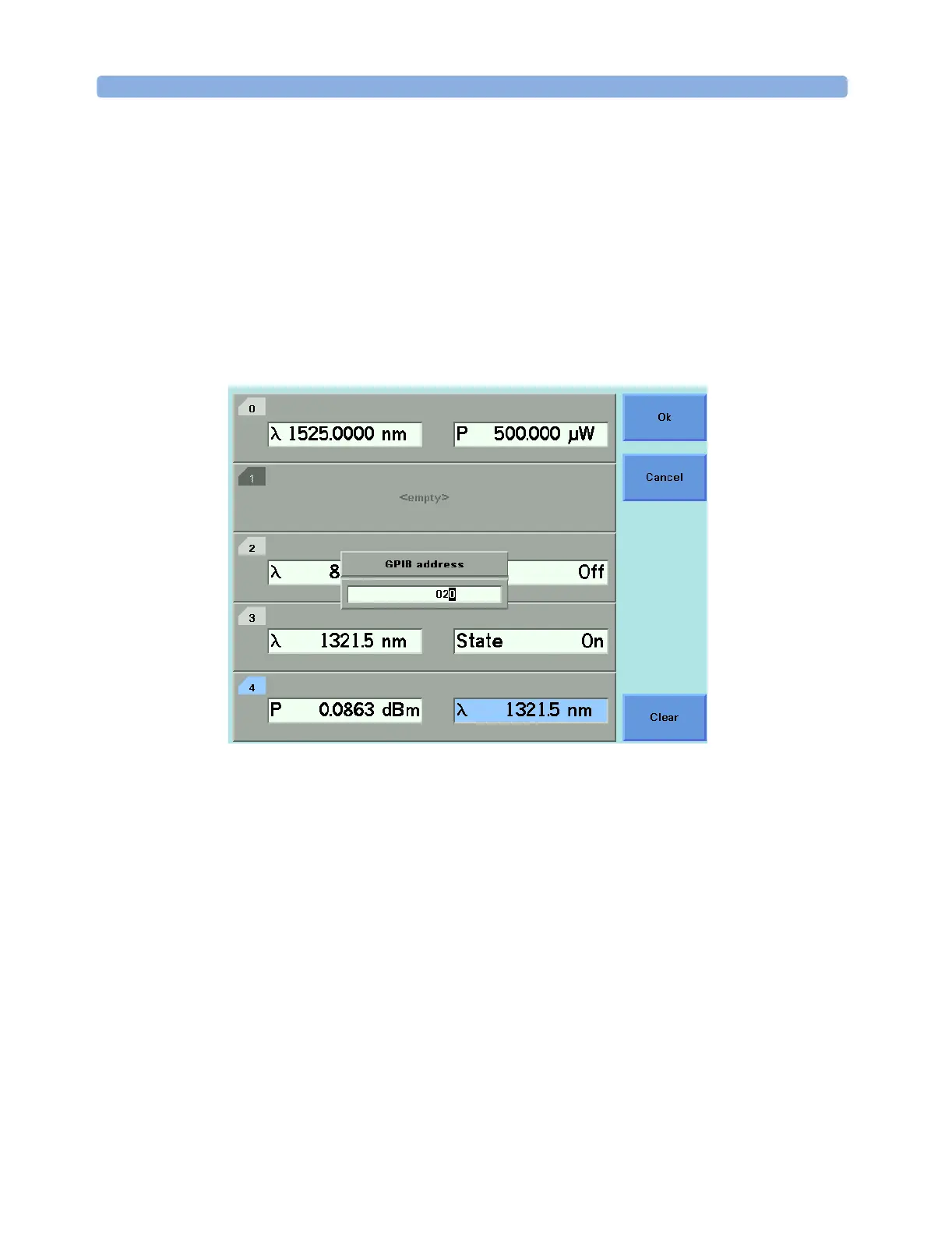

Figure 33 Entering a GPIB Address
