The Stability Application Applications

Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 243

Measurement Screen, the available softkeys change as shown in

Figure 157.

Analysing a Stability Application

You can access the Stability Analysis screen after the stability

application completes, by completing the following instructions:

20 You cannot access the Stability Analysis screen from the graph. If

you are viewing the graph, press [Close].

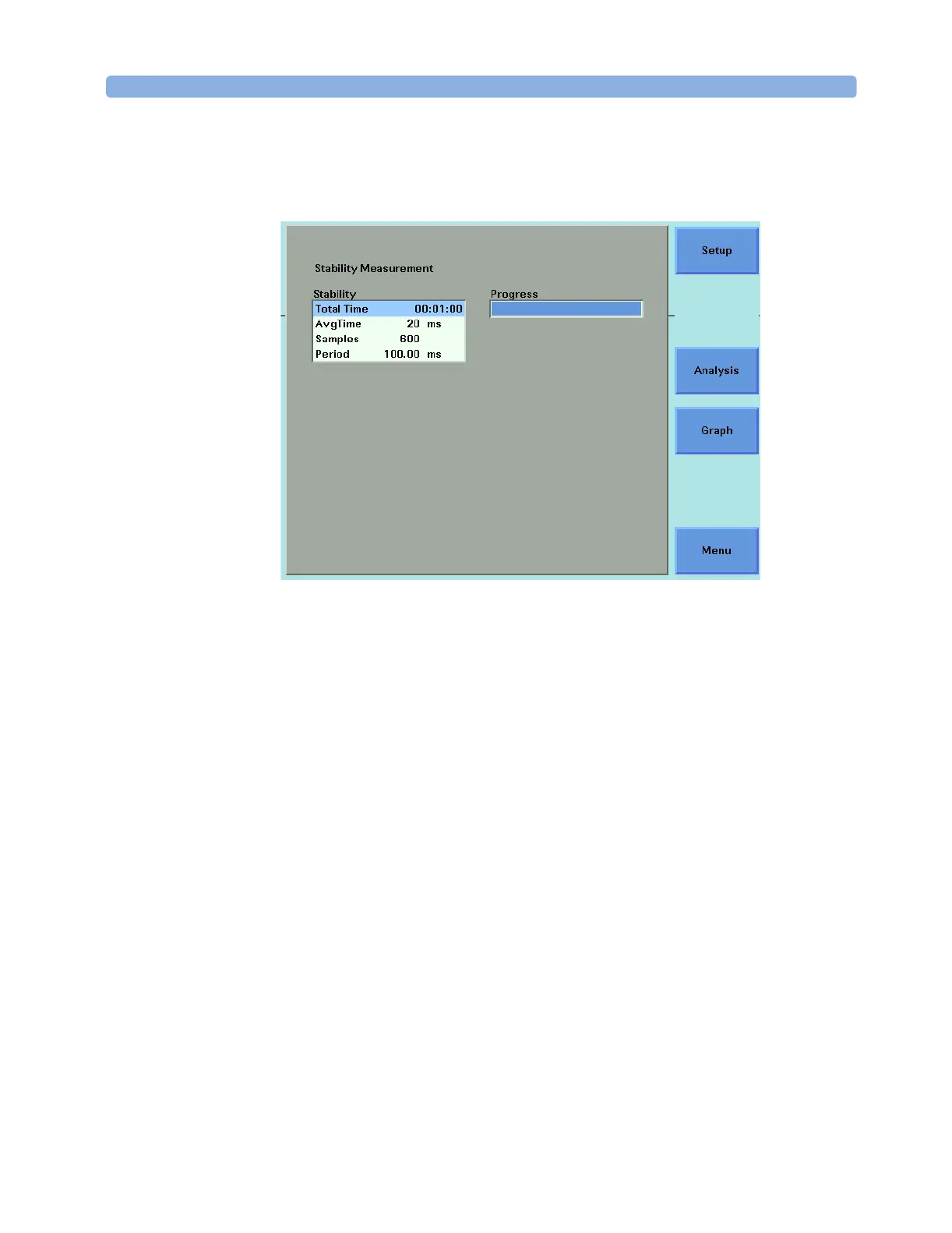

Figure 158 The Stability Measurement Screen - Measurement Completed
