Working with Application Graphs Applications
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 223
How to Unlock Markers from the Curve
You can unlock markers A and B from the curve by performing the
following instructions:
1 Press the [Menu] softkey.
2 Move to <Unlock From Curve> and press Enter to return to the
graph.
How to Lock/Unlock Markers to Samples
You can choose to lock the markers to samples, that is, the results that
are returned are actual measurement results.

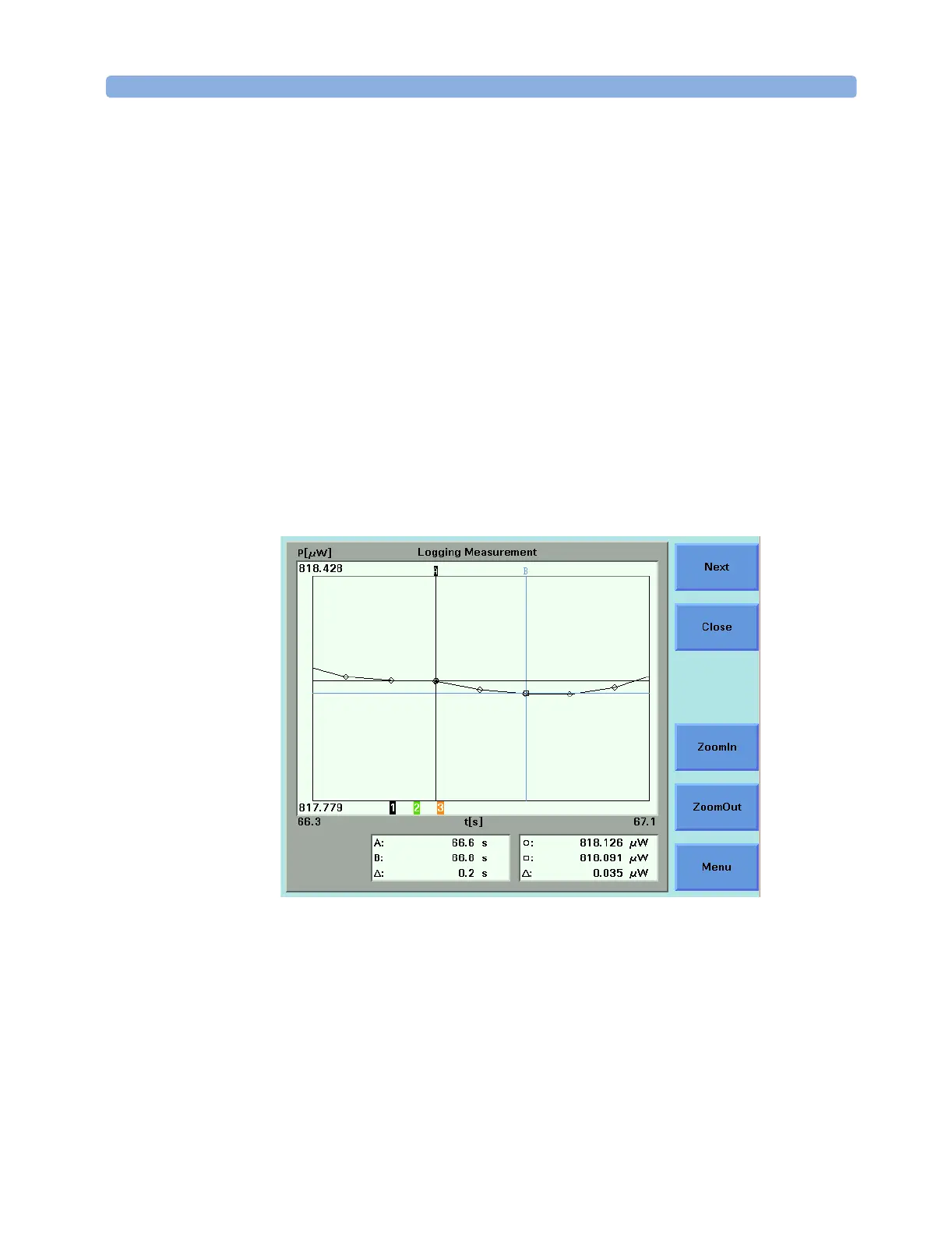

Figure 141 shows a graph where markers A and B are locked to
samples. If you press the cursor key, the marker will move to another
sample.
Figure 141 Lock to Samples On
