Applications The PACT Application
252 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
How to Measure the Reference
19 Press [Reference].
NOTE If [Step] does not divide exactly into the difference between [λ Stop]
and [λ Start], the parameters are automatically corrected to meet the
constraints of PACT.
The PACT Reference Screen, as shown in Figure 163, appears. The
number of samples that each Power Meter will record and the
output laser power are displayed If <Continuous> was selected as
the sweep [Method], the sweep speed, [VSweep], is displayed.
NOTE The application chooses the power, [P], see step 15 for more
information.

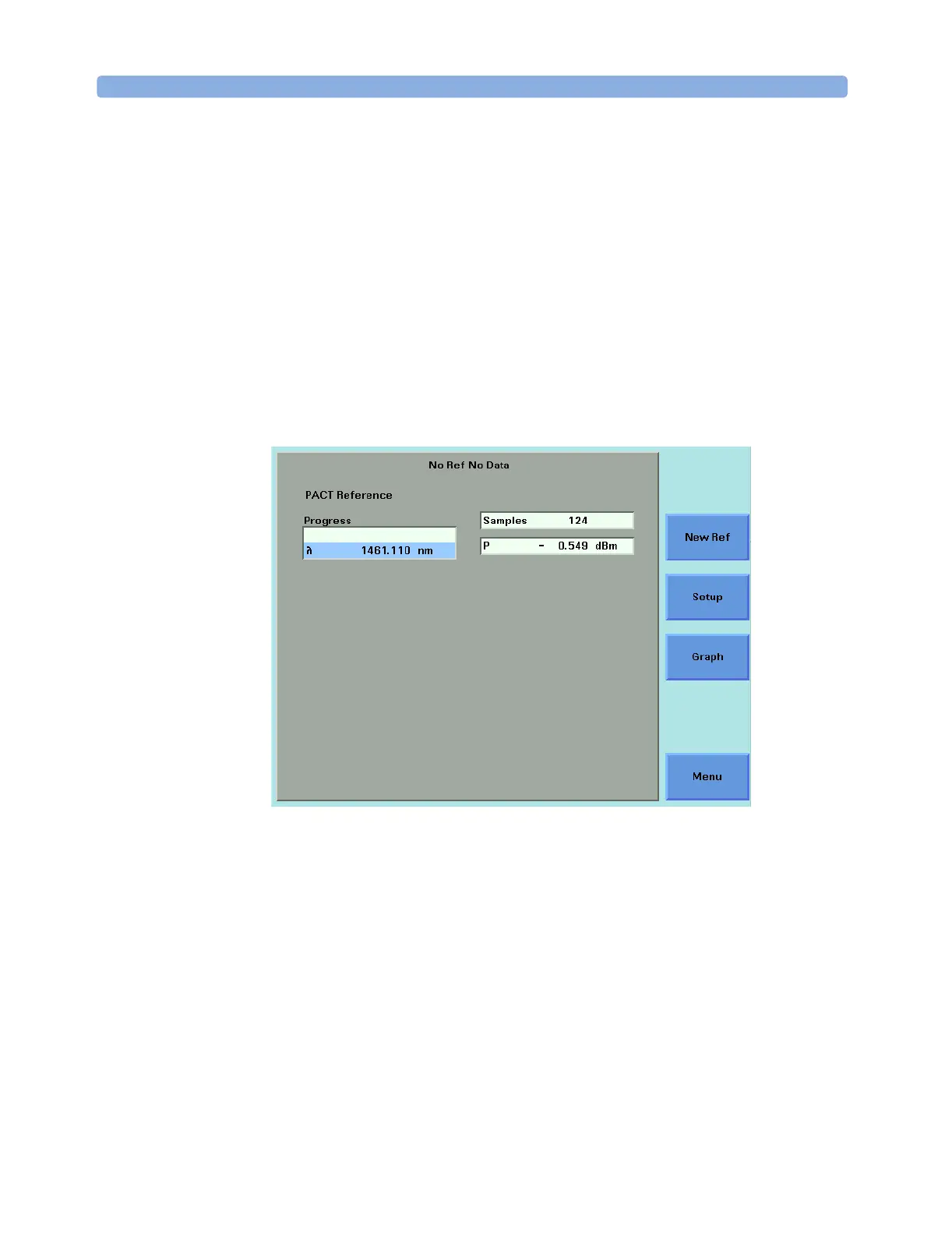

Figure 163 PACT Reference Screen
