The Pmax Curve Applications
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 261
How to View the Pmax Curve
To view the Pmax Curve:
1 Press the Appl hardkey. The Applications menu, as shown in Figure
144, appears.
2 Move to <Pmax curve> and press Enter. The Pmax Curve Screen, as
shown in Figure 171, appears.
3 See “Working with Application Graphs” on page 215 for
information on zooming in and out.
4 Press [Close] to exit from the Pmax Curve application.

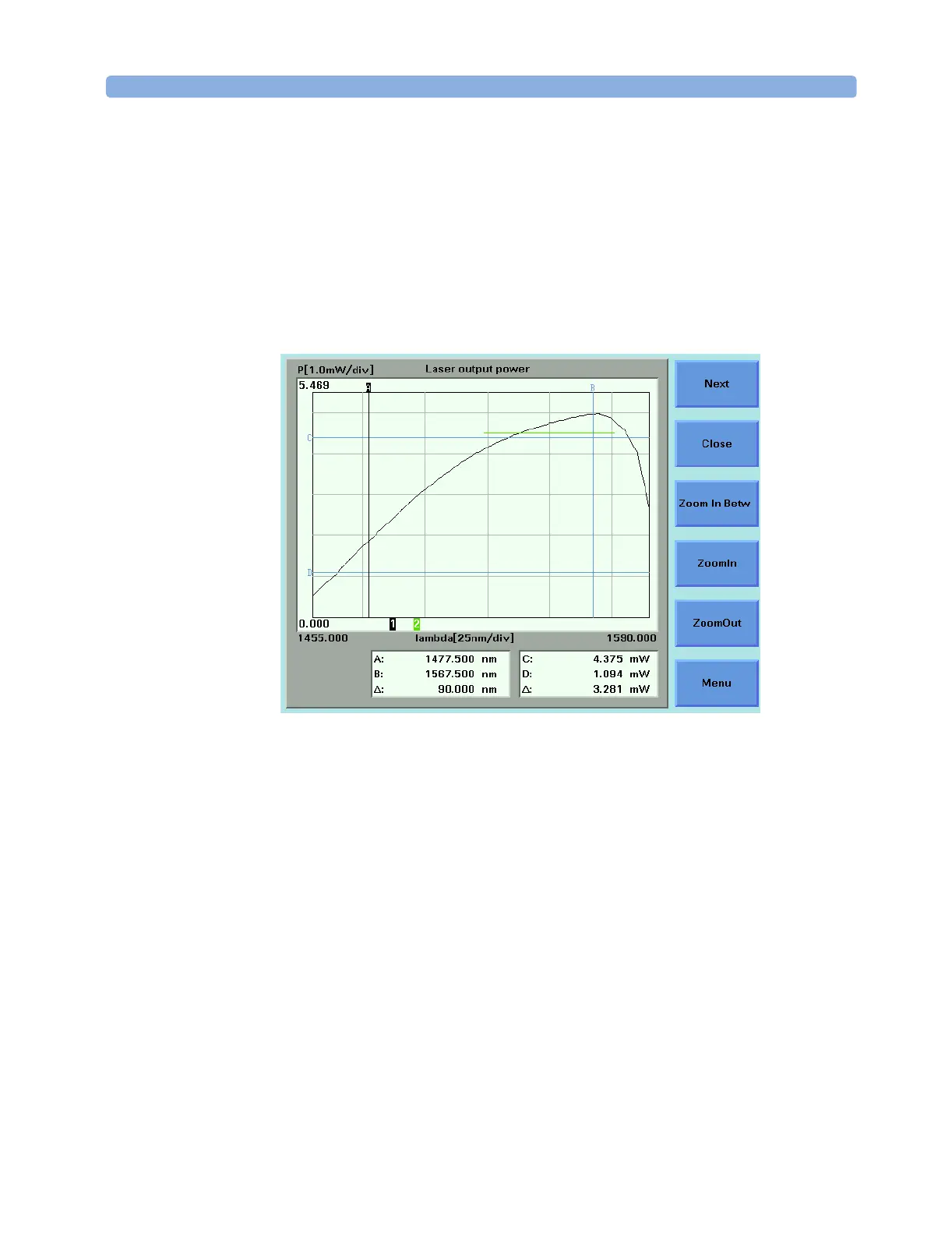

Figure 171 The Pmax Curve Screen
